| Prod Model: |
TL445 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimenstions: |
47(L)*47(W)*100(H)Mm |
| Weight: |
0.50kg |
| Color: |
Black/ Grew/ White |
| Terminal: |
F1 |
| Container Material: |
ABS |
| Charge (Cycle Use): |
4.8V~5.0V |
| Charge (Standby Use): |
4.5V~4.6V |
| Designed Life: |
2-3 Years |
| Warranty: |
1year |
| Type: |
Lead-Acid Batteries |
| Usage: |
LED Lighting Power Tools, Alarm System |
| Nominal Voltage: |
4V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

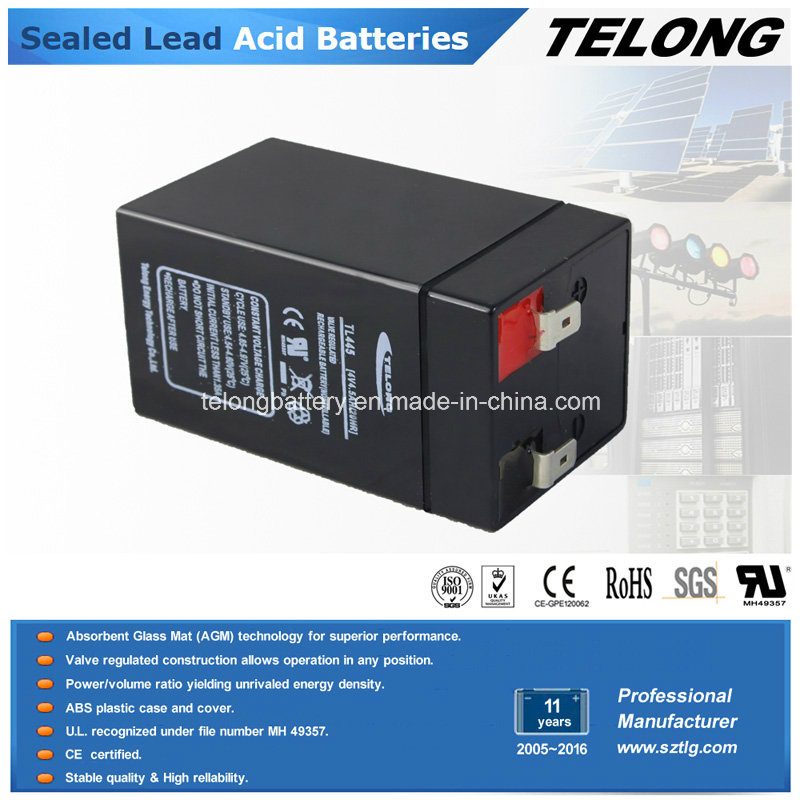

TELONG TL445 rechargeable lead acid battery is a maintenance-free VRLA battery. It's service life can reach 1000 cycles in float application. The battery is mainly used in electric toy, power tool, alarm system, ups and so on.
BATTERY CONSTRUCTION of 4V4.5ah Rechargeable Battery
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
FEATURE of 4V4.5ah Sealed Lead Acid Battery
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS of 4V4.5ah UPS Battery
Capacity
25'C (77'C) | 20 hour rate(0.225A ) | 4.50AH |
| 10 hour rate(0.419A ) | 4.19AH |
| 5hour rate(0.770A ) | 3.85AH |
| 3hour rate(1.150A ) | 3.45AH |
| 1 hour rate(2.65A ) | 2.65AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 15milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | F1 |
Charge
(Constant Voltage) | Initial Charging Current less than 1.35 A |
| Voltage 4.8-5.0V |
| Voltage 4.5-4.6V |
APPLICATIONS of 4V4.5ah Maintenance Free Battery
Control equipments / Emergency Light / Rechargeable Fan
Solar Light / Portable Light / Alarm systems / Power tools
Medical equipments / Electric toys
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 25-35 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE |
| 7 | The price of the battery is based on Lead Price of RMB12500-13000/ton. The above price
would be revised upwards or downwards byaround 2% with every increase or decrease
of RMB500/Ton in the lead price at SMM.(Shanghai Nonferrous Metal Market).Please visit
http://www.smm.cn for the latest price at SMM.
|
