| Prod Model: |
TL475 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Normal Capacity: |
7.5ah |
| Hour Rate: |
20 |
| Size: |
74(L)*47(W)*100(H)Mm |
| Weight: |
0.72kg |
| Color: |
Black / White |
| Container Material: |
ABS |
| Charge Voltage (Cycle): |
4.8~5.0V |
| Charge Voltage (Float): |
4.5~4.6V |
| Designed Lifef: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Power System, Solar Light |
| Nominal Voltage: |
4V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
TELONG 4V7.5ah Battery: 1). Sealed and Maintenance free 2). Warranty: One Year, Changed with quality problem. 3). CE UL RoHS certification
4). OEM / ODM 5). Used for: Alarm system Emergency Lighting system, Electric scale

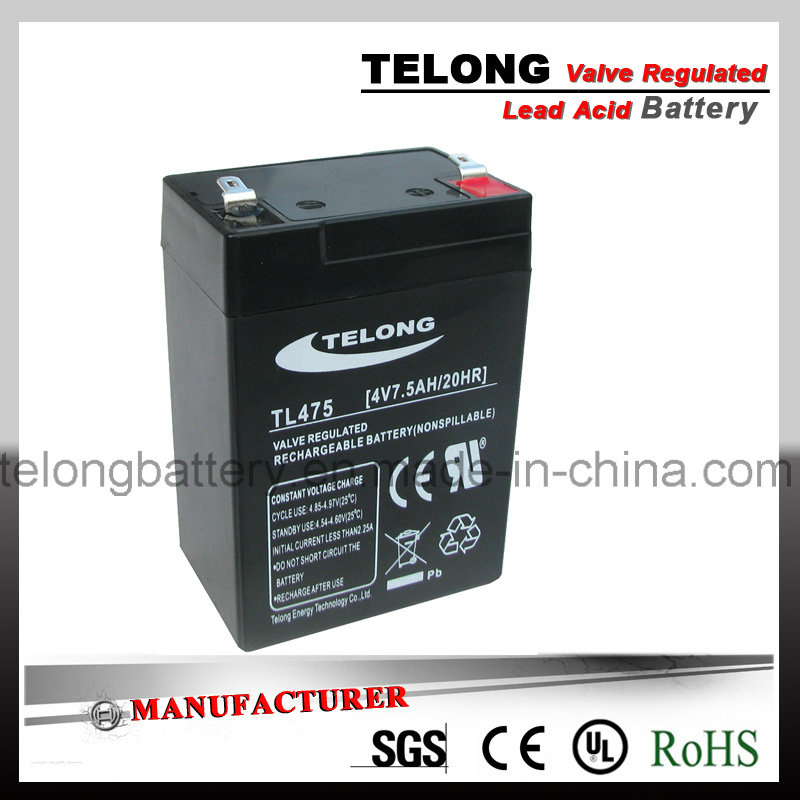

BATTERY CONSTRUCTION of 4V7.5ah AGM Sealed Lead Acid Battery
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
FEATURE of 4V7.5ah UPS Battery
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%
and freedom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS of 4V7.5ah Rechargeable Lead Acid Battery
Capacity
25'C (77'C) | 20 hour rate(0.375A ) | 7.50AH |
| 10 hour rate(0.698A ) | 6.98AH |
| 5hour rate(1.284A ) | 6.42AH |
| 3hour rate(1.92A ) | 5.77AH |
| 1 hour rate(4.42A ) | 4.42AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 15milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | F1 |
Charge
(Constant Voltage) | Initial Charging Current less than 2.0 A |
| Voltage 4.8-5.0V |
Voltage 4.5-4.6V
|
APPLICATIONS of 4V7.5ah Rechargeable Lead Acid Battery
Control equipments / Emergency Light
Rechargeable Fan / Solar Light
Portable Light / Alarm systems
Power tools / Medical equipments
Electric toys / Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION of 4V7.5ah Maintenance Free Battery
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight
Pcs/ctn: 24pcs/ctn
Ctn size: 38.1*22*13cm
GW/NW: 17.43kg/17.28kg |
| 4 | Date of delivery: 15-25 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE |
