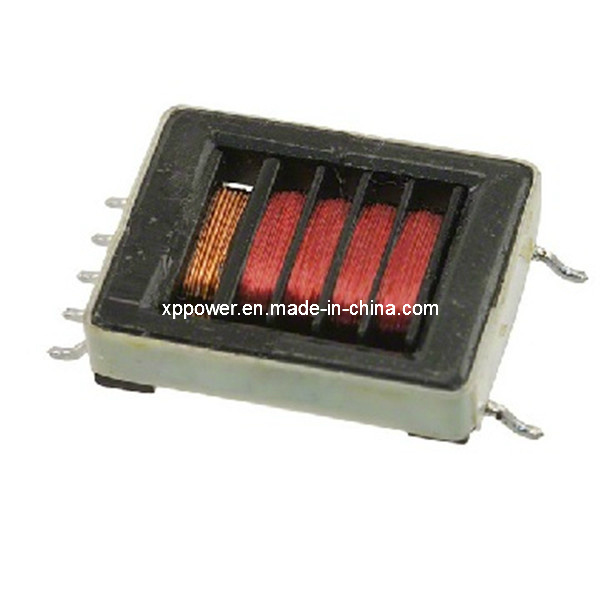

4W/10V SMD LCD/CCFL Driving Inverter Transformer

Name: 4W/10V SMD LCD/CCFL Driving Inverter Transformer
Brand: all-electronics-online.com
SKU: 732637675
Availability: InStock
Rating: 4.5 (139 reviews)

Price:	US $ 1.0-5.0/Piece
Trade Terms:	FOB,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CTX210403-R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Application:	Electronic

Product Description

Description
Transformer for use in CCFL power supplies, available in through-hole and surface mount recess or gull wing versions, incorporating floating or fixed secondary technology
Supply output current up to 30 milli-Amps
Frequency range from 40 to 80 KHz
Deliver output power from 2.5Watts
Operate in royer and other topologies
Ferrite core material
Applications
CCFL power supplies
Environmental Data
Storage temperature range: -40º C to +85º C
Operating ambient temperature range: 0º C to +70º C
Solder reflow temperature: +260º Cmax, for 10 seconds max
Packaging
Supplied in bulk packaging

Part Number	Schematic Diagram	Pout Walts	Lp μH²	DCRp Ohms Max	DCRs Ohms Max	TR Ns/Np	Vpri Volts Max²	Vsec Volt Max²	Is Max A rms	Vpri Abnormal²	Vsec Abnormal²
CTX210403-R	C	4	44	0.220	165	50	26	1340	.007	40	2000
CTX210407-R	C	4	27	0.160	220	86	15	1340	.007	23	2000
CTX210409-R	C	4	20	0.160	220	100	13	1340	.007	23	2000
CTX210411-R	C	4	20	0.160	330	125	10	1340	.007	16	2000
CTX310403-R	C	4	44	0.220	165	50	26	1340	.007	40	2000
CTX310407-R	C	4	27	0.160	220	86	15	1340	.007	23	2000
CTX310409-R	C	4	20	0.160	220	100	13	1340	.007	23	2000
CTX310411-R	C	4	20	0.160	330	125	10	1340	.007	16	2000
