Product Description

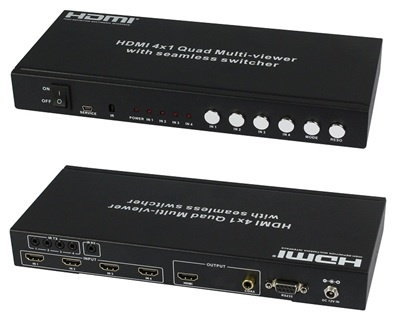

This 4x1 HDMI Quad Multi-viewer with seamless switcher is a high performance 4 by 1 Quad Multi-Viewer with seamless switcher. It supports four High definition input source display on one screen, and have three multi-view effect mode. As a switcher, it can also seamlessly switch the four HD input freely. The product can be controled by various ways, through the front panel button control, IR control, RS232 control etc. The product provides an S/PDIF link to output the HDMI source audio at the same time. In addition,this prodcut have basic version and extender version.The Extender version can extend the video and audio signals over single 50m CAT5e/6 with Bi-directional IR control.
1. Features:
(1)Compliant with HDMI 1.3a,HDCP 1.2;
(2)Supports multiplexed HDMI 4-input and 1-output;
(3)Supports up to 1080p High Definition resolution;
(4)Support 4by1 Quad Multi-viewer and seamless switch;
(5) Support scaler up,scaler down function;
(6)Support multi output resolution;
(7) Support digital audio format LPCM/AC3/DTS
(8)Support button,IR,RS232 etc various controlled ways;
(9)IR system allowing for control of source at display end;
(10)Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable(Extender Version).
2. Package Contents:
Basic Version
HDMI Quad Multi-Viewer 1pcs
12V/2.5A DC power adaptor 1pcs
Remote Control 1pcs
Wide-band IR Receiver 1pcs
Wide-band IR Transmitter 4pcs
RS232 Cable 1pcs
Operation Manual 1pcs
Extender Version
Ø HDMI Quad Multi-Viewer 1pcs
Ø CAT5e/6 Receiver 1pcs
Ø 12V/2.5A DC power adaptor 1pcs
Ø 5V/1A DC power adaptor 1pcs
Ø Remote Control 1pcs
Ø Wide-band IR Receiver 2pcs
Ø Wide-band IR Transmitter 5pcs
Ø RS232 Cable 1pcs
Ø Operation Manual 1pcs
3. Specification:
Video Bandwidth 2.25Gbps
Input Ports 4 × HDMI (Female type),1x RS232;
Output Ports 1 × HDMI (Female type),1xRCA,1xUTP(Extender version)
Audio output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
Input Resolution 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,
1080i50/60Hz,1080p24/30/50/60Hz,800x600@60,
1024x768@60,1280x720@60,1920x1080@60;
Output Resolution 1080p,1080i,720p,1024x768,1360x768
ESD Protection Human Body model: ±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 12 V/2.5A DC (US/EU standards, CE/FCC/UL certified)
Dimensions 118mm(W) X 250mm (D) X 32mm(H)
Weight 750 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 °C~40 °C/ 32 °F~104 °F
Storage Temperature ?20 °C ~ 60 °C/?4 °F ~140 °F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 10 W
4 Connect and Operate:
(1)Connect the signal sources such as Blu-Ray Player, Play Station 3, audio/video receiver, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Switcher inputs.
(2)Connect the HDMI output of the HDMI Switcher to a high-definition display device such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. Use high-speed HDMI cables that are recommended for the distances that are required for each connection.
(3)The Switcher is powered by an external power supply which is included. Connect power first to the source, then to the Switcher and then to HD TV or projector.
(4)The input source can be controlled from the display. This is accomplished by using an optional IR Receiver pigtail pointing away from the display(s), which can be connected with an optional HDMI IR Adapter , and inserted between HDMI cable connector and display with the toggle switcher at the "IR" position. The IR Transmitter pigtail is used to connected to the switcher and pointed to the source(s). The switcher also have a capability of being controlled via Remote control.
5.Wideband IR(30KHz---60KHz) introduction:
IR BLASTER (TX):
To control the source: Plug IR Blaster into IR TX port of transmitter unit; place blaster in front of the IR eye of the source.
IR RECEIVER (RX):
To control the source: Plug IR Receiver into IR RX port of receiver unit; place receiver at or near display.
6.Detail descrption of display mode:
The quad multi-viewer have 3 display modes.
MODE1: The quad multi-viewer divides the four HD input to the same size and display on one screen. And now switch the input button on front panel or IR remote,the HDMI output audio will Corresponding to the selected input source.
MODE2: The quad multi-viewer divid the four HD input to one bigger and three smaller picture display on one screen.And now switch the input button on front panel or IR remote ,the bigger picture will Corresponding to the selected input source. The HDMI output audio follow the bigger picture source.
MODE3: The quad multi-viewer will separate display the four HD input,and now it is a seamless swithcer.
7.Remote Control:
(1) Input select button:press these buttons,the quad multi-viewer will select the corresponding input source,the front panel LED will indicate the selected input source status .
(2) Mode select button:press these buttons,the quad multi-viewer will select the Corresponding mode, see the detail description(chapter 5.7).
(3) Resolution button:press these buttons ,the HDMI will output different resolution, 1080p,1080i,720p,
1024x768,1360x768.
The F1,F2 button expand for user defined fuction.
Press the Reset button,the quad multi-viewer will reset to factory state.
(4)Picture button: press these buttons can adjust the display picture contrast,brightness,color and sharpness.
