4X4 HDMI to Coaxial Matrix Switcher

Prod Model:	YL0404HC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Avaliable
Input Resolutions Support:	up to 1920X1080p@60Hz
Output Resolutions Support:	up to 1920X1080p@60Hz
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

The 4x4 HDMI to Coaxial Matrix Switcher connects four HDMI sources to four displays. Connect a Receiver to each of the Coaxial Cable outputs to extend the HDMI signal up to 328ft/100m (RG6) for multiroom connectivity.It works with BluRay players, SetTop boxes, Home Theater PCs, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, or by using the selection buttons on the front panel.



Features:
1.Compliant with HDMI1.3.
2.Supports transmission distances up to 328ft/100m through RG6 coaxial cable.
3.Supports 480i, 576i, 720p, 1080i or 1080p resolution.
4.Supports wideband IR(3060Khz) matrix system.
5.The RS-232 for the firmware update.
6.Supports RS-232, remote control, on-panel control and TCP/IP Control .
7.Supports smart EDID management.
8.Supports power-off memory.



Package Contents:
4x4 HDMI to Coaxial Matrix Switcher                              1pcs
HDMI Coaxial Receiver                                                     4pcs
12V/2.5A DC power adaptor                                            1pcs
5V/1A DC power adaptor                                                  4pcs
Operation Manual                                                              1pcs
Wideband IR Tx cable                                                       4pcs
Wideband IR Rx cable                                                       5pcs
HDMI Matrix IR Remote                                                      1pcs
Mounting ears                                                                      2pcs
RS232 cable                                                                        1pcs


Specifications:
Input Ports                                                                            4×HDMI, 1×RS-232, 1xRJ-45(Control), 1×IR EXT
Output Ports                                                                         4×BNC, 4xIR OUTPUT
Input Resolutions Support                                                Up to 1920x1080P@60Hz
Output Resolutions Support                                             Up to 1920x1080P@60Hz
Control                                                                                  IR , RS-232 , TCP/TP , Buttons
ESD Protection                                                                    Human-body Model:
                                                                                               ± 8kV (Air-gap discharge)
                                                                                               ± 4kV (Contact discharge)
Power Supply                                                                      12 V/2.5 A DC (US/EU standards, CE/FCC/UL)
Dimensions                                                                         440mm (W)×200mm (D)×44.5mm (H)
Weight                                                                                  2.265kg
Chassis Material                                                                Metal
Silkscreen Color                                                                 Black
Operating Temperature                                                     0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature                                                        ?20 ºC~60 ºC/?4 ºF~140 ºF
Relative Humidity                                                               20~90 % RH (non-condensing)
Power Consumption                                                        18 W(Max)/1.5W(Standby)

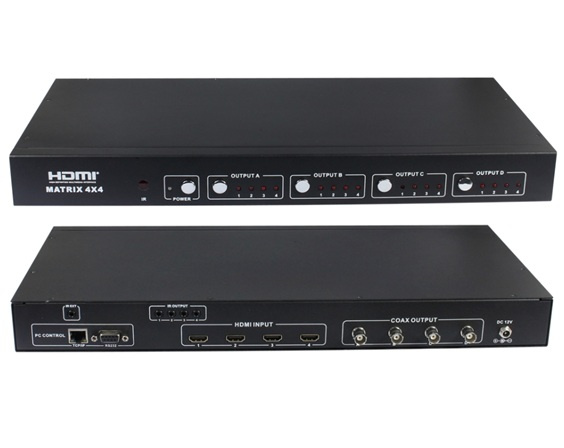

PANEL FUNCTIONS:
Front Panel
Part 1.     IR:           IR Receiver window (accepts the remote control signal of this device only).
Part 2.     POWER:    Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode.
Part 3.     OUTPUT A/B/C/D: Press the OUTPUT A/B/C/D button to select the output corresponding input, and at the same time for the LED will light.



Rear Panel:
Part4: IR EXT: if the panel sensor is obstructed or the unit is installed in a closed area out of infrared line of sight, the IR RX receiver included can be inserted into the IR EXT port at the rear to extend the IR sensor range and enable local control of the matrix.
Port5: TCP/IP: This port is the link for TCP/IP controls, connect to an active Ethernet link with an RJ45 terminated cable.
Port6: RS232: Connect to a PC or control system with D-Sub 9-pin cable for the transmission of RS-232 commands.
Port7: IR OUT: Super IR control system interface. For further details, please refer to the Super IR system control introduction.
Part8: HDMI INPUT
Connect to the HDMI input source devices such as a DVD player or a Set-top Box with HDMI cable.
Part9: COAX OUTPUT
The COAX OUTPUT is connected to the Coaxial Receiver.
Part10: DC POWER INPUT
Plug the 12V/2.5A DC power supply into the DC12V power in.


Remote Control:
1. Press this button to power on the matrix or set it to standby mode.
2.Press these button to select output A,B,C,D for input 1,2,3,4 port.



IR Control system:
The IR control from TV end to control source (Blu-ray DVD), and also IR channel switch with video switch. For example, four TV signals from the HDMI 1 source, so four on the Coaxial receiver IR RX can control the HDMI 1 source (Blu-ray DVD).

At Matrix end: Insert the 3.5mm jacks of the IR TX Emitters included with the unit into the IR TX Emitter ports at the rear of the matrix according to input. The IR signal is added to the HDMI of the input device so, for example, if the user is watching Blu-ray on input 1, the IR signal will be directed through the IR TX1 socket to control the device.
As each IR TX port is allocated to an individual HDMI input port, if the user is unable to establish IR control of the device, care should be taken to check firstly, that the IR emitter and HDMI input ports match (Input 1-TX1, Input2-TX2 etc.) with plugs secured in correct ports, and secondly, that the IR TX emitter sensors are firmly attached directly to the front of inputs and covering infrared sensor windows of the source devices. Some later adjustment may be needed to the location of the sensor to achieve the best performance results - sometimes moving the sensor to different areas on the source can improve IR performance.
