Product Description

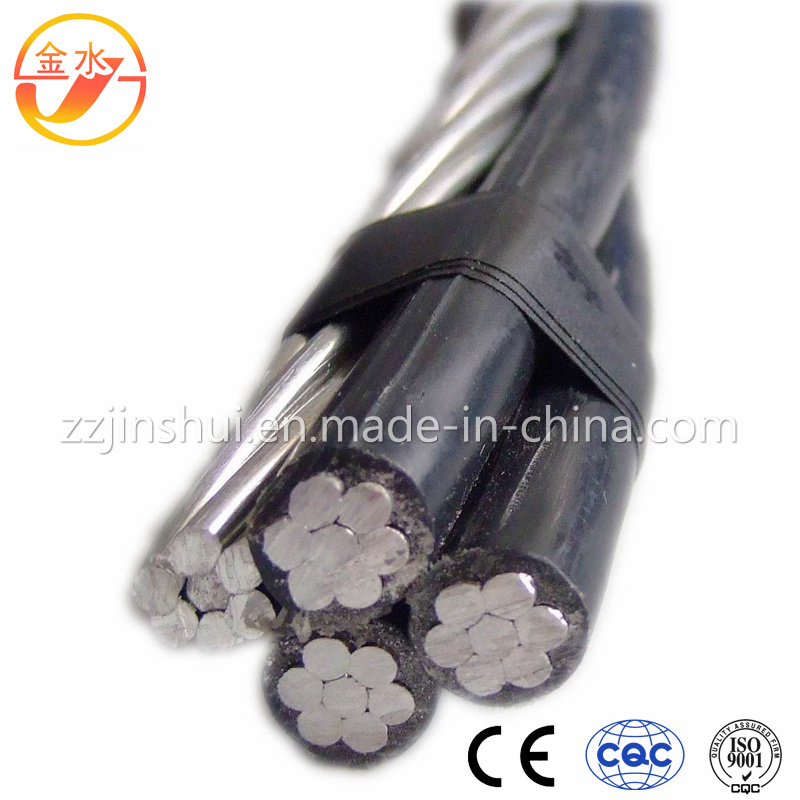

ABC AERIAL BUNDEL CABLE
Product Description
XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation (optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for crossliked polyethylene(XLPE) insulated conductors.
It meets or exceeds the following specifications:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
ABC Aerial cable with ACSR messenger Core
| Nominal csetion area(sqmm) | Conductor structure | Insulation material | Insulation Thickness(mm) | Approx. Overall Diameter(mm) | Approx. weight
(kg/km) | Packing meters per drum |
Phase
(Compacted AL) | Neutral
(bare ACSR) |
| (No./mm) | Aluminum
(No./mm) | Steel
(No./mm) |
| 1x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
| 1x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | | 1.2 | 14.9 | 182.2 | 250-4000 |
| 1x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | | 1.4 | 17.5 | 254.7 | 250-3500m |
| 1x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | | 1.4 | 23.6 | 382.2 | 250-3000m |
| 1x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | | 1.6 | 27.6 | 528.2 | 250-3000m |
| 2x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | | 1.2 | 14.2 | 187.6 | 250-4000m |
| 2x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | | 1.2 | 16.7 | 273.8 | 250-3500m |
| 2x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | | 1.4 | 19.7 | 386.9 | 250-3500m |
| 2x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | | 1.4 | 26.1 | 617.2 | 250-3000m |
| 2x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | | 1.6 | 30.5 | 850.9 | 250-3500m |
| 3x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | | 1.4 | 29.7 | 1024.3 | 250-3000m |
| 3x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | | 1.6 | 34.6 | 1413.7 | 250-3000m |
