5.0dBi Gain Indoor WiFi Antenna, High Gain Ceiling Mount WiFi Antenna, Roof Mount 2.4GHz Antenna, WiFi Repeater Antenna, WiFi Directional Antenna

Name: 5.0dBi Gain Indoor WiFi Antenna, High Gain Ceiling Mount WiFi Antenna, Roof Mount 2.4GHz Antenna, WiFi Repeater Antenna, WiFi Directional Antenna
Brand: all-electronics-online.com
SKU: 730461332
Availability: InStock
Rating: 4.3 (116 reviews)

5.0dBi Gain Indoor WiFi Antenna, High Gain Ceiling Mount WiFi Antenna, Roof Mount 2.4GHz Antenna, WiFi Repeater Antenna, WiFi Directional Antenna

Price:	US $ 7.5-8.0/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WK-WIFI031
Connector:	RP-SMA Male Straight
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5

Product Description

WiFi Antenna/2.4GHz Antenna/Zigbee Antenna Specifications:

Part Number: WK-WIFI031
WIFI antenna Specification
Frequency Range	2400-2500MHz
V.S.W.R	1.5:1
Band Width	100 MHz
Gain	5.0dBi
Polarization	Vertical
Radiation	Directional
Max Input power(W)	50
Impedance	50 ohm
Max wind speed	200km/h

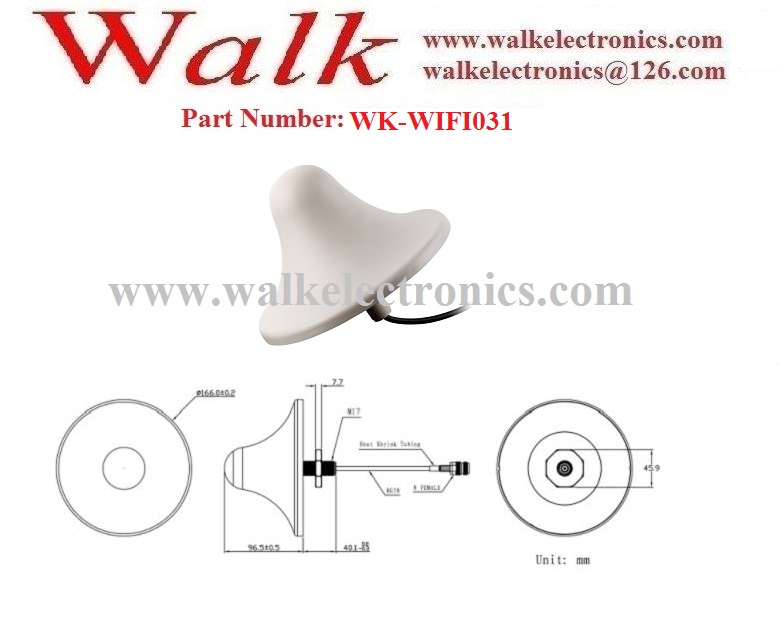

Mechanical Specifications
Size	Φ165×95mm
Weight	<250g
Cable	30cm RG58, RG174, RG316, LMR100 or others
Connector	N female straight, FME, FAKRA, SMA or others
Housing	ABS
Mount	Screw/Ceiling
Environmental Specification
Working Temp	-40ºC~+85ºC
Waterproof	N/A
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
MTBF=1×10-6/pc.hr	40ºC±5ºC, 2000pcs For 480h

GPS antenna, GPS glonass antenna, GSM antenna, GSM 3G antenna, 4G lte antenna, WiFi antenna, combo antenna, RF cable assembly and RF connector manufacturer.

Shenzhen Walk Electronics Co., Ltd. is specialized in designing, manufacturing and selling all kinds of antennas, RF cable assemblies, connectors, and car electronics, etc.

Main products: GPS antennas, GPS/Glonass antennas, GSM antennas, 3G GSM antenna, 4G LTE antenna, WiFi antennas, Combo antennas, RFID antennas; RF cables, RFID cables, computer cables, and automobile cables; RF connectors, PCB connectors and adapters.

Our company always supplies good quality products with proper price. Poor quality products will cost much more for both customers and us. Our company supplies customers with quick delivery. We have built happy and long term business relationships with customers and trust each other.
