Antenk Electronics Co., Ltd. >> 5.0mm or 5.08mm Pluggable Terminal Block

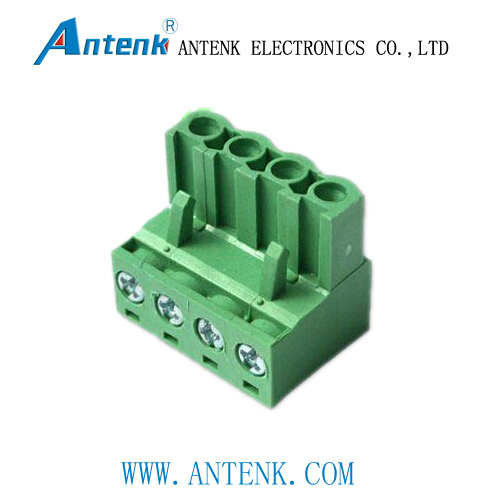

5.0mm or 5.08mm Pluggable Terminal Block

5.0mm or 5.08mm Pluggable Terminal Block
Price: US $ 0.1/Piece
Trade Terms: FOB,EXW
Min Order: 1000/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: 5.0mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Application: Wer Supply
Environmental Protection: Resistance to Environmental
Connection Mode: Push-Pull Connection
Shape: Rectangle
Contact Termination Form: Screws Fixed
Brand: Antenk

Product Description

Pluggable Terminal Block, Available in 5.00 and 5.08mm Pitch

Material:

Screw: M2.5, steel and zinc-plated

Pin header: Brass

Housing: PA66 and UL94V-0

Electrical:

Rated voltage: 300V

Rated current: 15A

Contact resistance: 20m Ohms

Insulation resistance: 5, 000M Ohms/1, 000V

Withstand voltage: AC 1, 500V/minute

Wire range: 28 to 12AWG 2.5mm2

Mechanical:

Temperature range: -40/+105 degrees C

Maximum soldering: +250 degrees C, 5 seconds0

Torque: 0.5Nm (4.5lb. In)

Strip Length: 7 to 8mm.
Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
