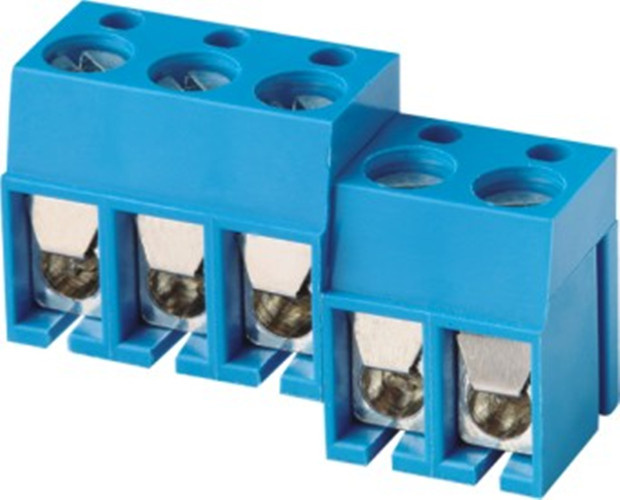

5.0mm Pitch PCB Terminal Block Connector (WJ300R)

Prod Model:	WJ300R-5.0/10.0mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	5.0/10.0mm
Rated Voltage:	250V
Rated Current:	16A
Temp. Range:	-40º C ~ +105º C
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Wanjie

Product Description

Our advantages:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Free samples
6. Quick feedback

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. We have own R&D center, and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products . Hope to cooperate with you.

Free Samples can be sent.

Product Description

Material
Screws	M3.0 Steel Zn plated
Shrapnel	Phosphor bronze, Ni plated
Pin header	Brass, Sn plated
Housing	PA66, UL94V-0
Electrical
Rated voltage	250V
Rated current	16A
Wire range	22-14AWG 2.5mm²
Contact resistance	20mΩ
Insulation resistance	500mΩ /DC500V
Withstanding voltage	AC 2000V/1 min
Mechanical
Temp. Range	-40º C ~ +105º C
Max soldering	+250º C, for 5 sec
Torque	5.10kgf-cm/0.5Nm/4.43Lbin
Strip length	4.5-5mm

If you could't find the exact product you need in the pictures, please don't go away. Just contact me freely or send your samples and drawings to us.

It is my pleasure to cooperate with you. And we will reply you as soon as possible.


Material
Screws: M3.0 Steel Zn plated
Shrapnel: Phosphor bronze, Ni plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 250V
Rated current: 16A
Wire range: 22-14AWG 1.5mm²
Contact resistance: 20mΩ ¸
Insulation resistance: 500mΩ /DC500V
Withstanding voltage: AC 2000V/1 min

Mechanical
Temp. Range: -40º C ~ +105º C
Max soldering: +250º C, for 5 sec.
Torque:5.10kgf-cm/0.5Nm/4.43Lbin
Strip length: 4.5-5mm

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. The company  have passed the ISO9001:2008, ISO14001, OHSAS18001 quality management system and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

Because of advanced production and test equipment, we could offer high quality and more competitive products. . With many years development, we also have own R&D center. Therefore, perfect OEM/ODM service can be supplied.

Of course, quality must come first under any circumstances.

Hope to cooperate with you.

If you can't find the exact product you need in the pictures, please don't go away. Just contact me freely or send your sample and drawing to us. We will reply you as soon as possible.
