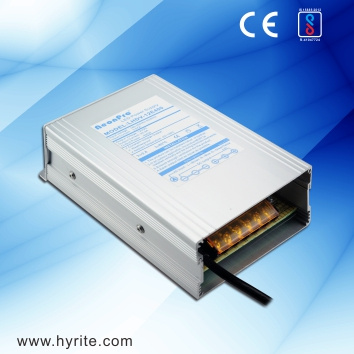

5/12/24V 200W Rainproof LED Power Supply with Ce CCC

Name: 5/12/24V 200W Rainproof LED Power Supply with Ce CCC
Brand: all-electronics-online.com
SKU: 747920755
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	US $ 12.96-14.4/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-12E200C
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Rldv-12e200c
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	16.7 a Max
Output Voltage:	12VDC ± 5%
IP Rating:	IP 24
Installation:	Outdoor Rainproof
Weight(Kg):	0.9600
Packing Information:	20 PCS/ Carton, G.W 20.5kg
Cooling:	Built-in Electric Fan
Dimensions(LWH):	20714066 Mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

5/12/24V 200W Rainproof LED Power Supply with CE CCC

Product Feature for Rainproof LED Power Supply:
*170-250 VAC, 12VDC
*Constant Voltage type; No electric fan
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*CE approval.

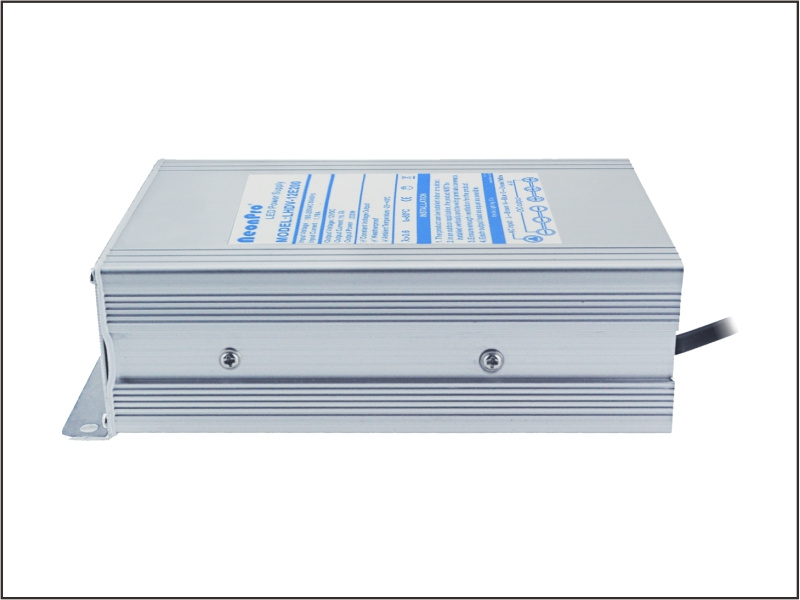

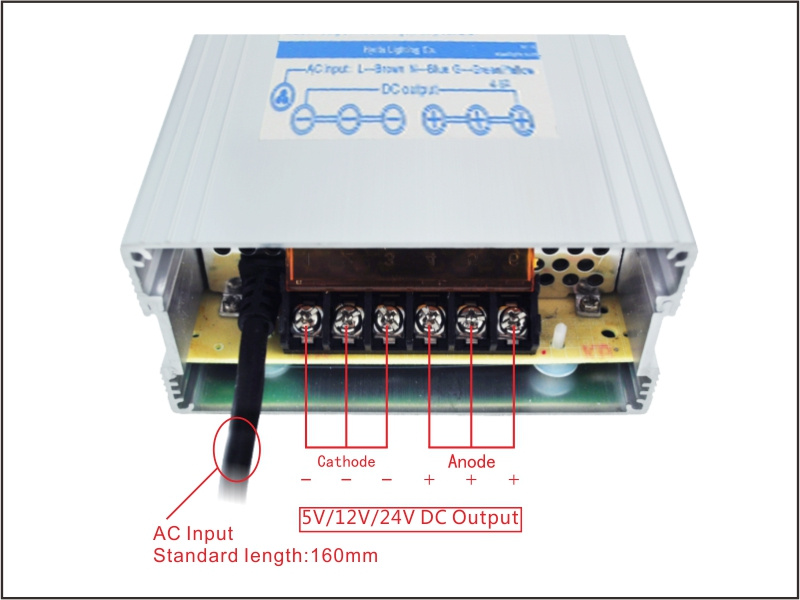

More product pictures for Rainproof LED Power Supply:

Note for Rainproof LED Power Supply:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping for Rainproof LED Power Supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Data sheet for Rainproof LED Power Supply:

Model no.	LHDV-12E200
Model series	LHDV
Input voltage	180-250 VAC 50/60 Hz
Power	200 W max
Output type	Constant voltage
Efficiency	83%
Output voltage	12VDC ± 5%
Output current	16.7 A max
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP 24
Cooling	Built-in electric fan

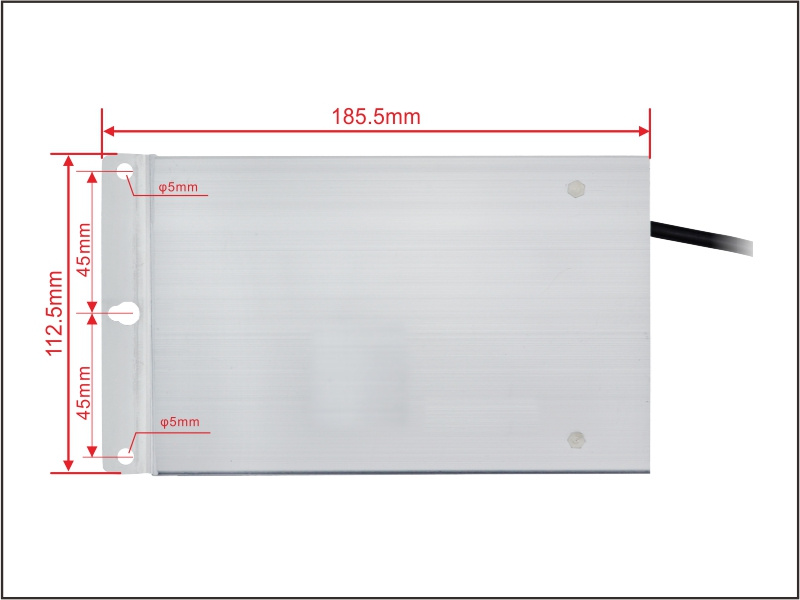

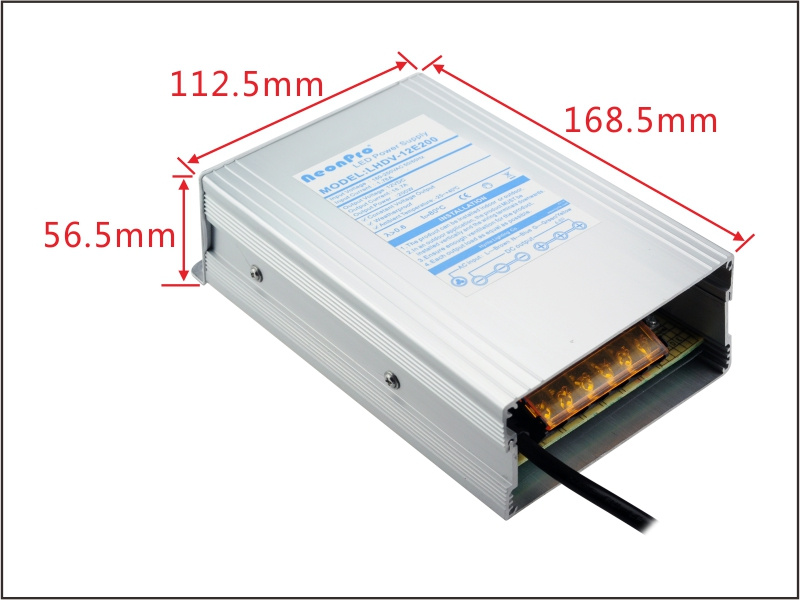

*Dimensions(LWH)*	185.5112.556.5 mm
Weight(kg)	0.7500
Packing information	20 Pcs/ Carton, G.W 15 KG

Project pictures/ Production/ Exhibition show for Rainproof LED Power Supply:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
