Hanzhong Quan Yuan Electronic Co., Ltd. >> 5~50kg Half Bridge Full Bridge Sensor 3 Wires Load Cells

5~50kg Half Bridge Full Bridge Sensor 3 Wires Load Cells

5~50kg Half Bridge Full Bridge Sensor 3 Wires Load Cells
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: QH-C5
Dimension: 26*26*1mm
Operation Voltage: 6~12V
Product Name: 50kg Body Scale Load Cells
Material: Steel Alloy
Out-Wire: 3-Wires
Pattern: Planar Type

Product Description

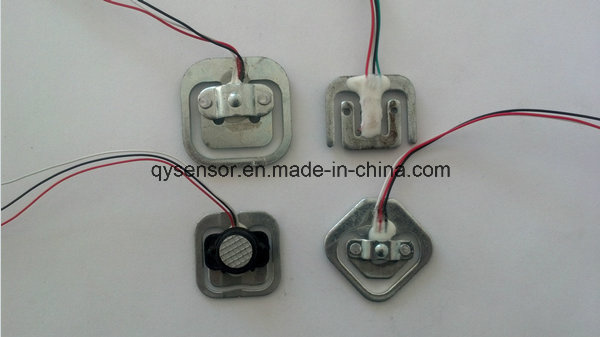

QH-C5 micro load cells are available in the capacity of 50kg.
Alloy steel construction.
Silicon adhesive hermetically sealed, anti-oil, anti-corrosion and suitable for a variety of environment.
Integral structure and easy installation.

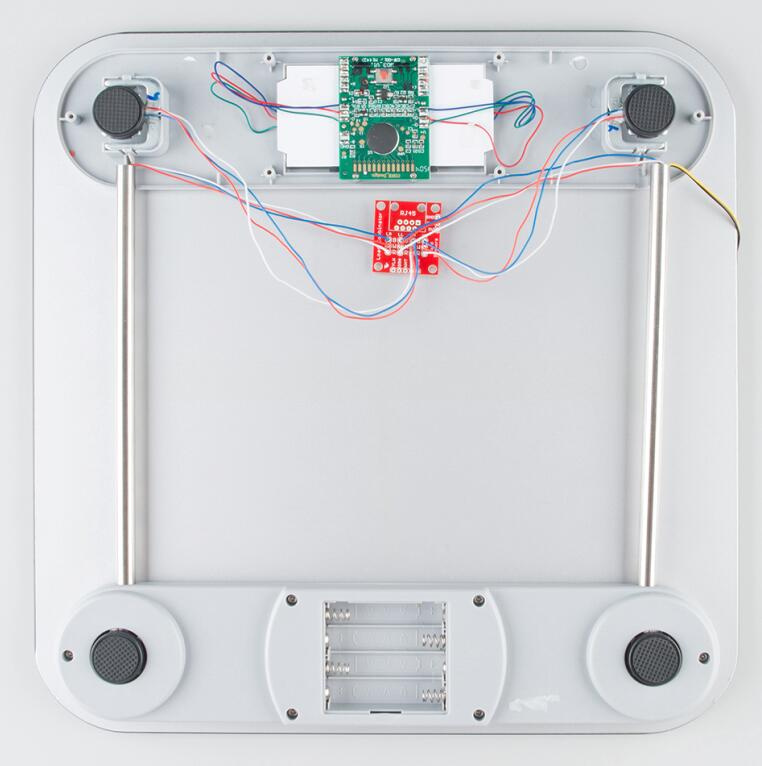

Suitable for hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighting systems.


Features:
Capacity: 5kg.
Defend grade: IP65
Tension and/or compression loading.
Reliable performance, integral structure and easy installation.

Technical Specifications
Capacity 5kg
Dimension 26mm×26mm×1mm
Accuracy 0.1%~0.2%FS
Rated output0.8±0.15mv/v
Operating voltage6~12V
Input resistance1000Ω
Output resistance1000Ω
Electrical connectionExcitation  red   Signal+ blue   Signal- white
Cableφ0.8×250mm
Packaging & ShippingOur ServicesCompany Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
     QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60


Contact details:
Chloe Shu
HanZhong QuanYuan Electronic Co.,Ltd.
TEL: +86-916-2257989

https://cn.linkedin.com/in/qysensor
http://www.qysensor.com

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
