| Prod Model: |
Z900 frequency inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed Range: |
1:100(SVC) |
| Speed Stability Accuracy: |
± 0.5% (Sfvc) |
| Maximum Frequency: |
0~300Hz |
| Communication Methods: |
RS485 |
| Display: |
LED Display |
| Altitude: |
Lower Than 1000 M |
| Ambient Temperature: |
-10°c ~40°c |
| Storage Temperature: |
-20°c~60°c |
| Vibration: |
Less Than 5.9 M/S2 (0.6 G) |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

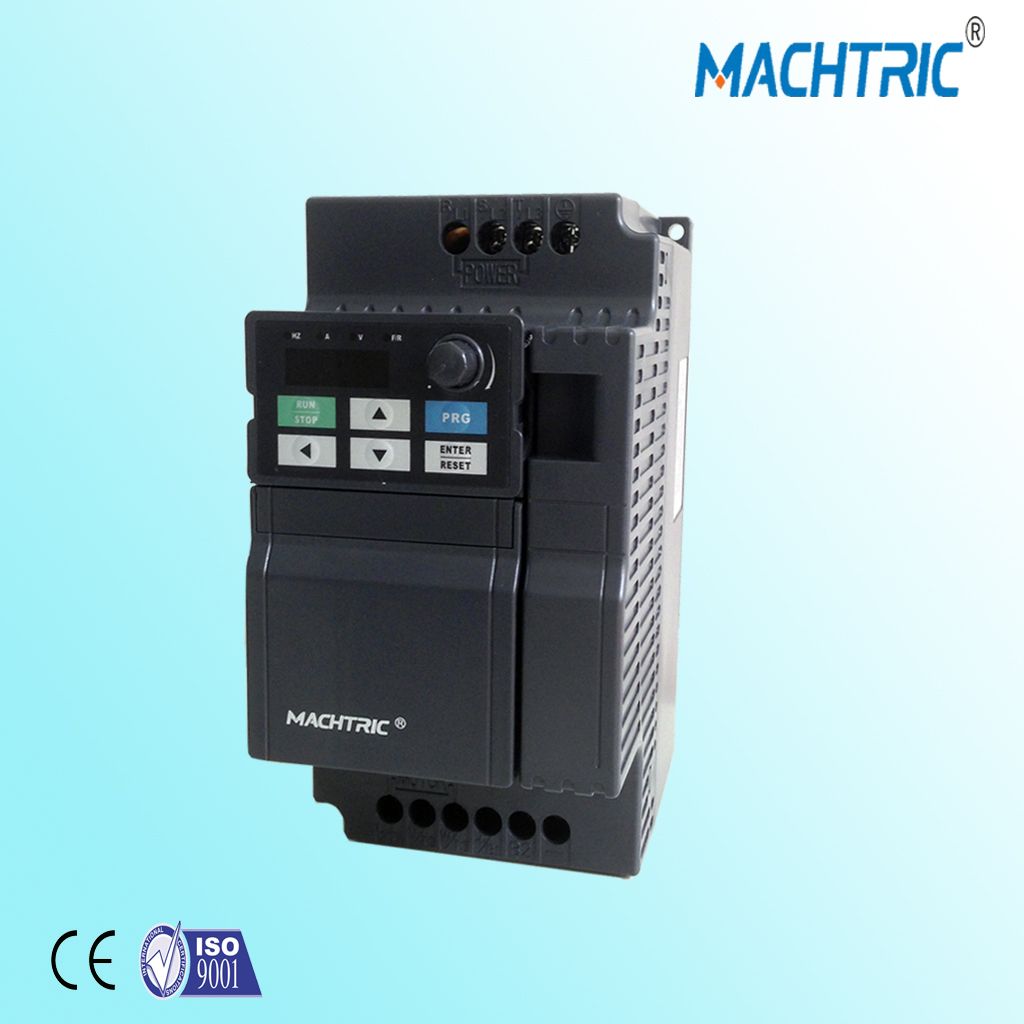

5.5KW 220v single phase input and 220v 3 phase output Frequency inverter converter/ ac motor drive/ ac drive/ VSD/ VFD
Package include:
1 x Inverter 5.5KW
English user manual
1.Output Power:5.5kw
2.Rated current:20A
2.Rated Frequency :50hz/60hz
3.Output Frequency Range:0~650Hz
4.Input Voltage Range:single phase (1 phase) 220V±15%
5.Output Voltage Range:3 phase 220V±15%
6.Control way: Open loop vector control(SVC) V/F control
7.Starting Torque: G type machine:0.5Hz/150%( SVC)
8.Main function: Control and adjust the speed of the ac motor
+Advantages of Frequency inverters
We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:
01 V/F control, vector control and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.
Selection Guide
| Model No. | Input Voltage | Rated Output Power (KW) | Rated Input Current(A) | Rated Output Current (A) | Motor Power (KW) |
| Z900-2S0.4GE | 1PH AC
220V?50/60Hz | 0.4 | 5.4 | 2.4 | 0.4 |
| Z900-2S0.75GE | 1PH AC
220V?50/60Hz | 0.75 | 7.2 | 4.5 | 0.75 |
| Z900-2S1.5GE | 1PH AC
220V?50/60Hz | 1.5 | 10 | 7.0 | 1.5 |
| Z900-2S2.2GE | 1PH AC
220V?50/60Hz | 2.2 | 16 | 10.0 | 2.2 |
| Z900-2S3.7GE | 1PH AC
220V?50/60Hz | 3.7 | 23 | 16.0 | 3.7 |
| Z900-4T0.75GE | 3PH AC
380V·50/60Hz | 0.75 | 3.8 | 2.5 | 0.75 |
| Z900-4T1.5GE | 3PH AC
380V·50/60Hz | 1.5 | 5 | 3.7 | 1.5 |
| Z900-4T2.2GE | 3PH AC
380V·50/60Hz | 2.2 | 5.8 | 5.0 | 2.2 |
| Z900-4T3.7GE/5.5GP | 3PH AC
380V·50/60Hz | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| Z900-4T5.5GE | 3PH AC
380V·50/60Hz | 5.5 | 15.0 | 13.0 | 5.5 |
| Z900-4T7.5GE | 3PH AC
380V·50/60Hz | 7.5 | 14 | 17.5 | 7.5 |
| Z900-4T7.5GE/11GP | 3PH AC
380V·50/60Hz | 7.5/11 | 20.0/26.0 | 17.0/25.0 | 7.5/11 |
| Z900-11GE/15GP | 3PH AC
380V·50/60Hz | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
Z900-15GE/
18.5GP | 3PH AC
380V·50/60Hz | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
Z900-18.5GE/
22GP | 3PH AC
380V·50/60Hz | 18.5/22 | 38.0/46.0 | 37.0/45.0 | 18.5/22 |
| Z900-22GE/30GP | 3PH AC
380V·50/60Hz | 22/30 | 46.0/62.0 | 45.0/60.0 | 22/30 |
About us:
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business . With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers. At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products:
1. Computerized control system of textile machines: Seamless Underwear machine, Computerized Flat Knitting Machine, Glove Machine, Circular Knitting machine, Auto-Stripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler Machine etc.
2. Inverter series:
Vector series: Z900, ,S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series, S2100S series
Dedicated series: S100 Series, S200 series(circular knitting machine),
Mini Series : S800E
Any Questions Don't Hesitate To Ask. We can get you the information you need.
We can e-mail you PDF files of the user manual, installation manual, dimensions, performance data, ect.
Visit Our Website: www.machtric.com
Thanks For Looking !!!
