FUAN XINRUI MACHINERY CO., LTD. >> 5.5kw Y2 Series Three Phase Induction Motor

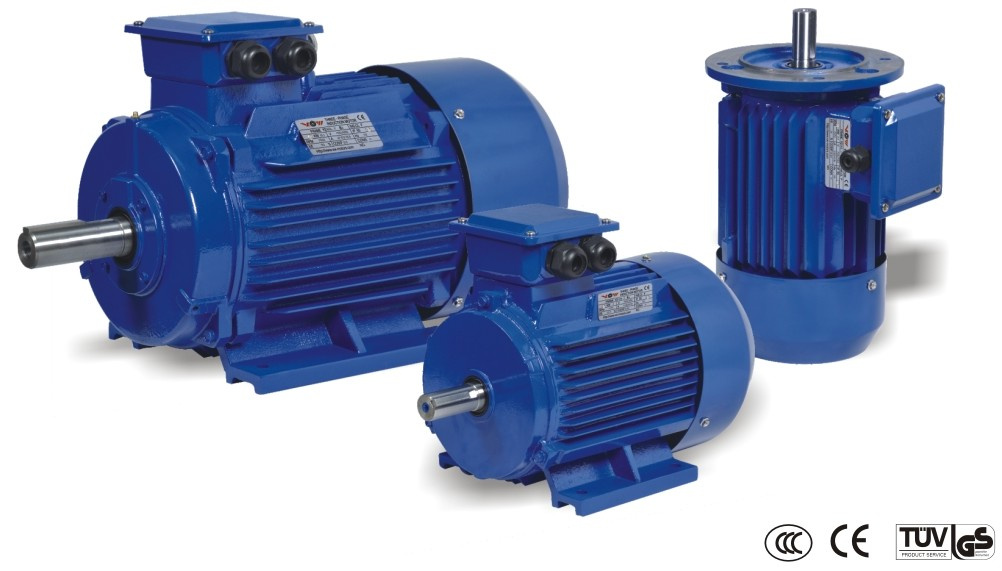

5.5kw Y2 Series Three Phase Induction Motor

5.5kw Y2 Series Three Phase Induction Motor
Price: US $ 60-80/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P
Prod Model: Y2-132S1-2, Y2-132S-4, Y2-132M2-6, Y2-160M2-8
Number Of Stator: Three-Phase
Function: Driving
Number Of Poles: 2,4,6,8
Brand: Xinrui

Product Description

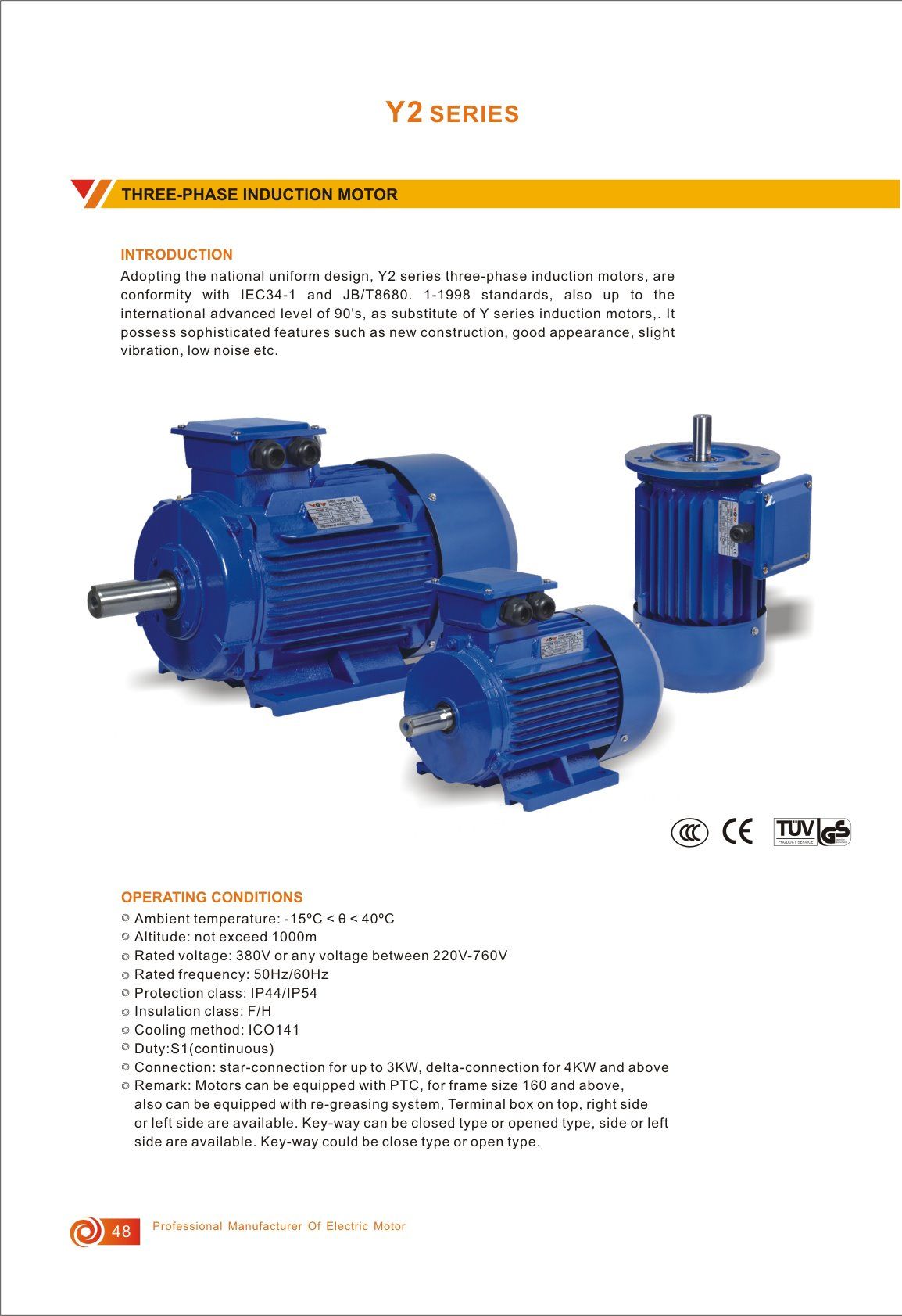

OPERATING CONDITION
Ambient temperature: -15
ºC<0<40ºC
Altitude: not exceed 1000m
Rated voltage : 380v or any voltage between 200v-760v
Rated frequency:50hz/60hz
Protection class: IP44/IP54/IP55
Insulation class : F
Cooling method: ICO141
Duty: S1 (continuous)
Connection: start-connection for up to 3kw, delta-connection for 4kw and above
Remark: motors can be equipped with PTC, for frame size 160 and above, also can be equipped with re-greasing system, terminal box on top , right side or left side are available, key-way can be closed type or opened type.















FUAN XINRUI MACHINERY Co., Ltd., founded in 2010, is a high efficiency motor manufacturer which combines researching, producing and marketing. After 6 years of development, the total area has reached 80, 000 square meters; And the total number of staff reaches more than 400 persons. Company continues to explore innovation, takes variety of advantages, and seizes every opportunity to increase marketing for many countries and areas which including Italy, Germany, UK, Belgium, Russia, Egypt, Iran, Thailand, and Malaysia, and the yearly turnover has exceeded 30 million US dollars. At present, the company has obtained the certificates including ISO 9001: 2008, ISO 14001: 2004, CCC, CE, and so on. Among our products, the IE2, IE3 high efficiency motor has been widely recognized by our overseas customers. By the high-end customer driven the entire product brand and quality improvement, company forms a strong competitiveness in the same industry, and also plays a leading role for the entire industry upstream and downstream chain upgrading. Nowadays, with great enthusiasm and persistence efforts, we are working toward a stable quality and good service oriented enterprise for customer benefits. We are expecting your kind attention, thank you.
