| Prod Model: |
TX5804 |
| Model No.: |
Tx5804 |
| Transmitter Frequency: |
5645-5945MHz;8CH |
| Transmitting Power: |
400MW/26dBm |
| Transmitting Distance: |
>4000m(Open Area) |
| Feature: |
with Channel Button |
Product Description

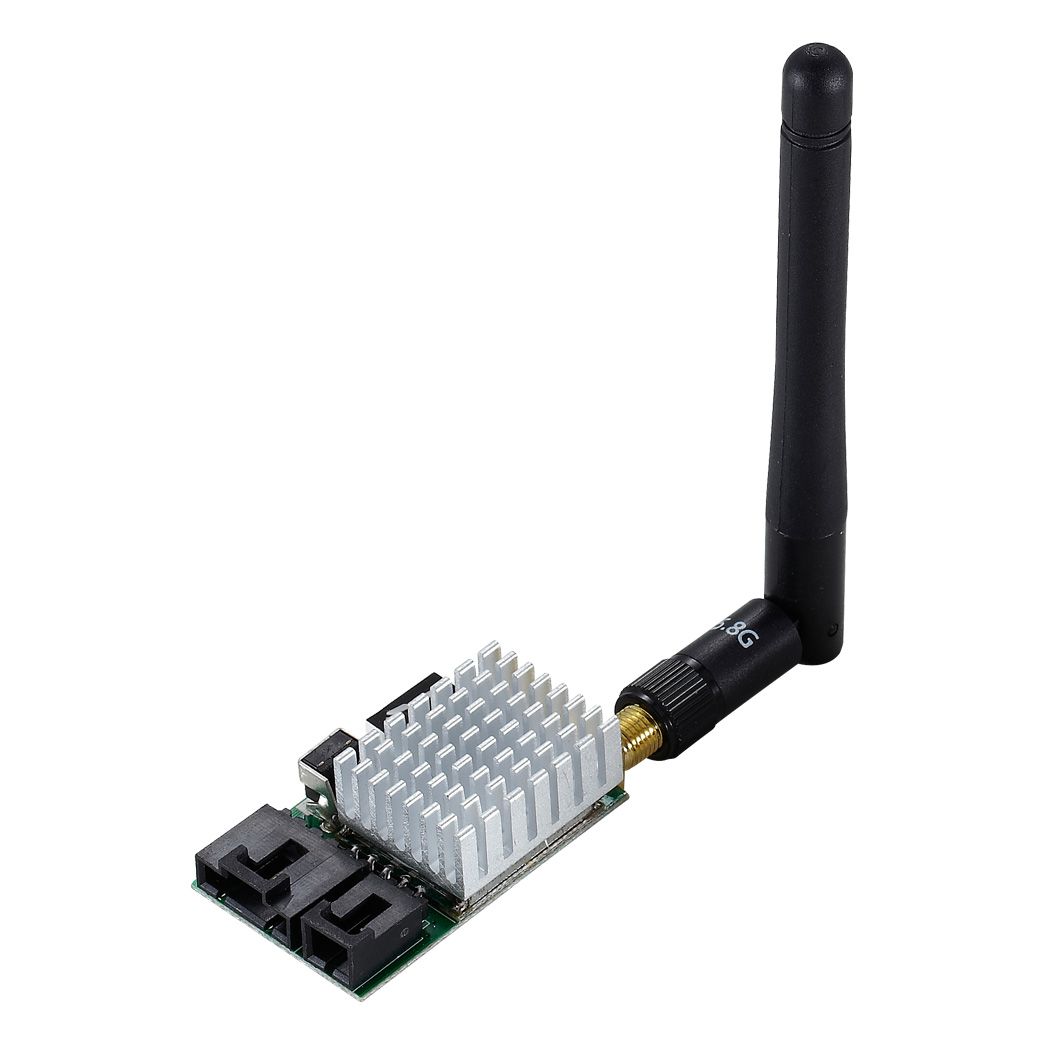

5.8g 40CH New Fpv 400MW Vtx AV Video Wireless Transmitter Tx5804
Highlights
5.8GHz 40CH FPV VTX
High Sensitivity Multiple 40 Channel FPV VTX,which support Race Band and is compatible with most FPV RX on the market,such as Boscam,Fatshark and DJI etc.
Powerful FPV VTX
Flysight TX5804,which is currently more powerful FPV VTX with 400mW RF power;its max distance can reach about 5000m at open area without any obstacles.
Attention:Antenna must be fixed well before powering the powerful VTX.
Channel Change and Display
With button to change channel bands and numbers easily,also with channel and band memory function for power-off;Channel band and numbers can display on the high bright micro LED screen.
Working Input/Output Voltage
DC6-28V(2S-6SLiPo battery) more options of input adapters,practical DC6-28V wide range output for powering a pair of goggles and other external equipment.
PPM Function
Pilots can change the frequency and channel of the transmitter fixed well on the flying drone by the RC radio in his hands,So you needn't fly the drone back for adjusting.
SMA and RPSMA Option
SMA and RPSMA for your antenna option. SMA can work with Fatshark Immersion RC products and RPSMA can work with Boscam and DJI products.
Plug and Play Cables
Flysight offers common colorful video & power cable and also customized video & power cable even hub cable for connecting different brands of cameras; all of the cables are plug and play,and easy to connect with any external equipment.
Outlook Design
Special design without cover,which is good for heat sink and less weight on the drones.
Specification
Wireless Transmitting | Working frequency | Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
RF power | 400mW/27dBi |
Transmitting distance | About 5000m in open area |
Channel | 40Channels(5Band×8channel) |
Antenna port | 1×SMA 50ohm |
Antenna connector | SMA/RPSMA option |
Frequency control | Channel button to change channels and bands |
Video input impedance | 1.0Vp-p Typ,75ohm |
Audio input impedance | 1.0Vp-p Typ,10Kohm |
Power Supply | Power input | 6-28V |
Consumption | 12V/180mA |
Power output | output voltage=input voltage |
Fixed 5V |
Others | Dimensions | 2.24*1.07*0.47inch(not include antenna) |
Net weight | 16g(not include antenna) |
Working temperature | -10ºC~+65ºC |
Application | Airplane,Helicopter,Quadcopter,Multicopter |
Key words | powerful/ 400mW FPV VTX |
