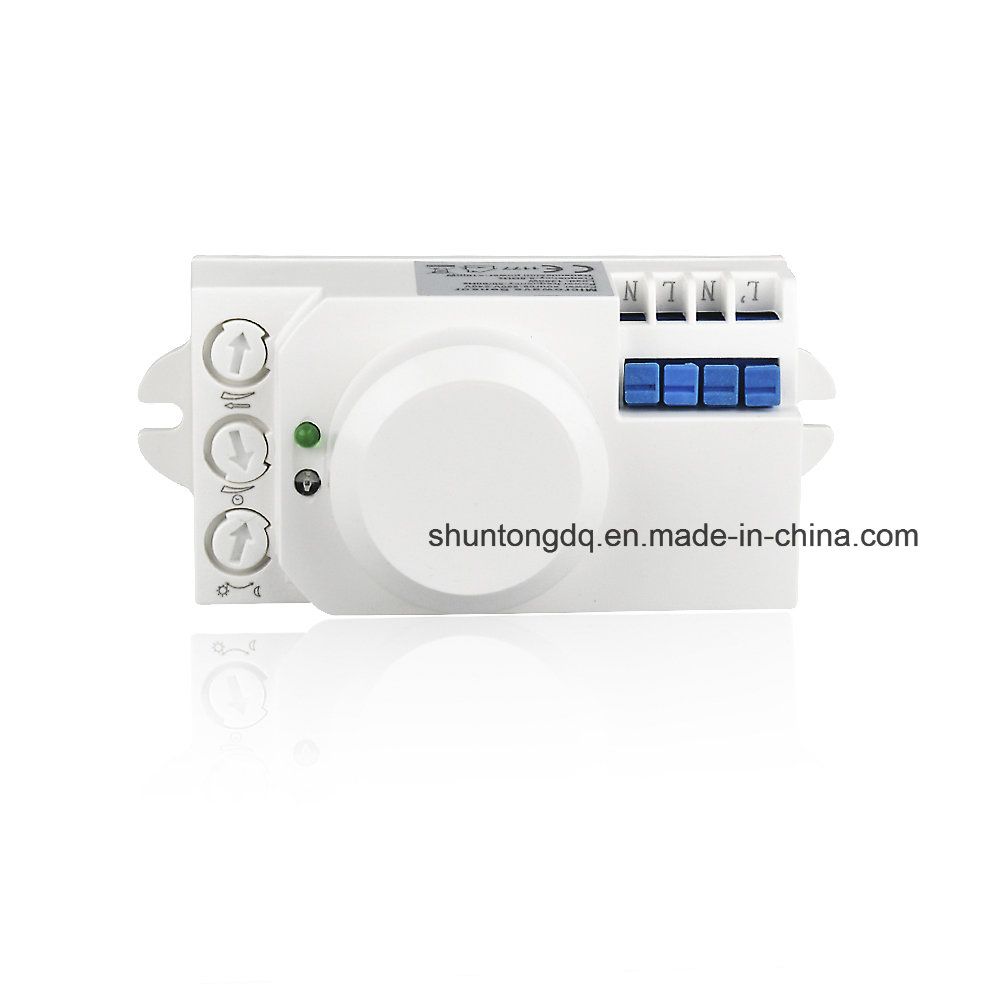

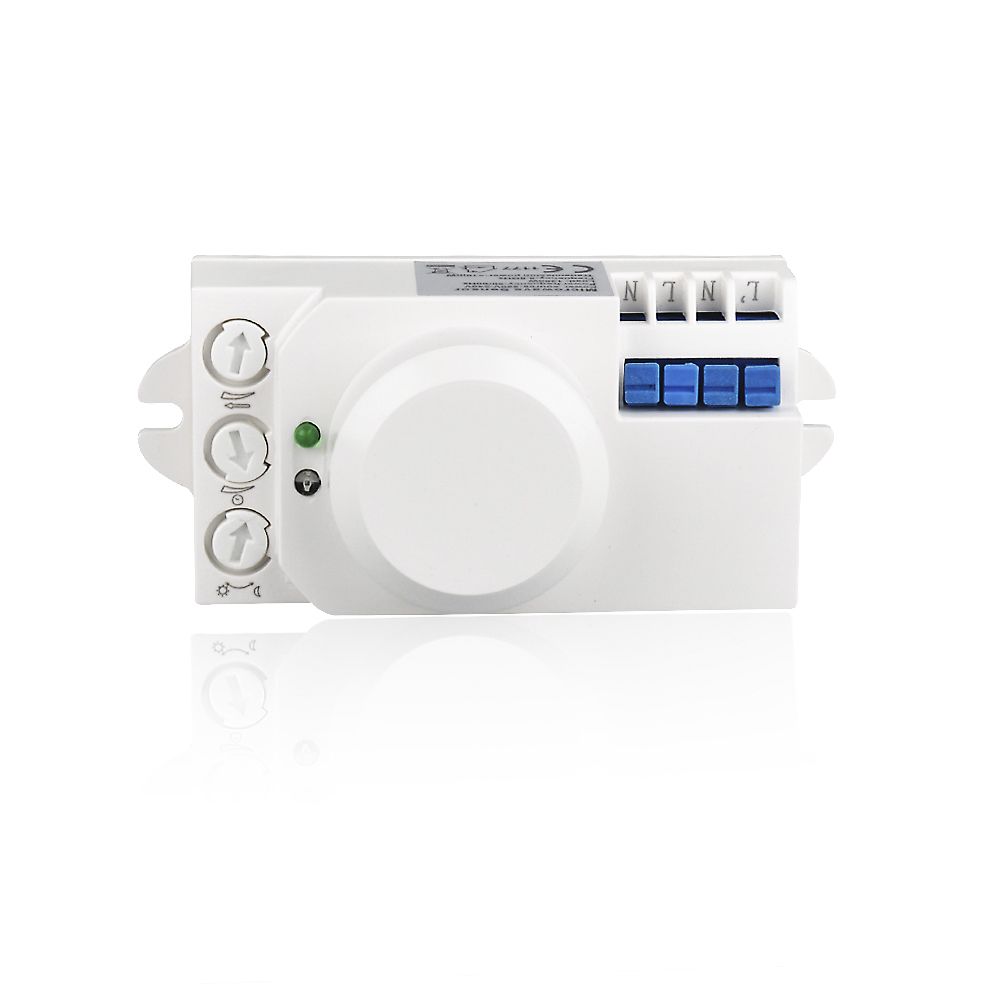

5.8GHz Hf System LED Microwave 360 Degree Radar Motion Sensor Light Switch Body Motion Detector

5.8GHz Hf System LED Microwave 360 Degree Radar Motion Sensor Light Switch Body Motion Detector
Price: US $ 1-2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: 101
Detection Range: 360°
Power Frequency: 50/60 Hz
Time-Delay: 30sec
Working Temperature: -20~+40°c
Power Sourcing: 220V/AC-240V/AC
Detection Distance: 1-8m (Radius) Adjustable
Hf System: 5.8GHz Cw Radar, ISM Band
Type: Microwave Sensor Switch
Wires: Two-Wires
Standard: Standard
Certification: CE

Product Description




Description

The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.



Specifications



Power Sourcing

220V/AC-240V/AC

Detection Range

360°

Detection Distance

1-8m (radius) adjustable

HF System

5.8GHz CW radar, ISM band

Ambient Light

3-2000LUX (Adjustable)

Time-Delay

Min.:10sec±3sec    Max.:12min±1min

Transmission Power

<10mW

Installing Height

1.5m~3.5m

Power Consumption

0.9W

Detection motion speed

0.6~1.5m/s

Rated Load

1200W (incandescent lamp)  300W (energy-saving lamp)

Shipping And Payment Terms:

Delivery Time: 3-30 Days Based On Finally Order Quantities
Payment Terms: TT /L/C
Less Than 3000USD. 100% TT In Advance
More Than 3000USD, TT30% Deposite, The Balance See Copy Of B/L
Bigger Order: TT Or L/C

Our Service:

1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized product we can help you to design and produce
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. All the products must through 24 hours aging before delivery to ensure the quality again.
