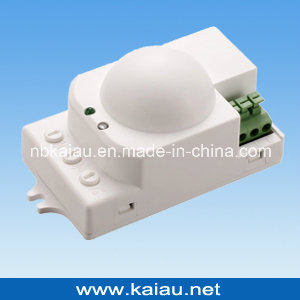

5.8GHz Microwave Motion Detector (KA-DP12A)

Name: 5.8GHz Microwave Motion Detector (KA-DP12A)
Brand: all-electronics-online.com
SKU: 688357175
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	US $ 3.8-6.9/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-DP12A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Lighting
Warranty:	2 Years
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery:	Within 25 Days
Type:	Microwave Sensor Switch
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Application:	Corridor, Warehouse, Garage, Toilets etc.
Principle:	Microwave Sensor

Product Description

KA-DP02B microwave detector specification:
1. Detection Range: 120*360 degree
2. Power Source: 110-130V/AC 220-240V/AC
3. Power Frequency: 50/60Hz
4. HF System: 5.8GHz CW radar, ISM band
5. Transmission Power: <10mW
6. Rated Load: Max. 600W (110-130V/AC), 1200W(220-240V/AC)
7. Detection Distance: 2-12m (<24º C), adjustable
8. Time Delay: 10sec to 12min(adjustable)
9. Light Control: 3-2000LUX(adjustable)
10. Installation Height: 1.8-4m
11. Power Consumption: Approx. 0.9W

KA-DP12A Function:
1) Can identify day and night: It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
2) SENS adjustable: It can be adjusted according to using location; low sensitivity with only 1m (radius) for detection distance; High sensitivity could up to 8m (radius), it fits for large room.
3) Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.
4) Time-Delay is adjustable. It can be set according to the consumer's desire. The minimum time is 10sec±3sec. The maximum is 12min±1min.
