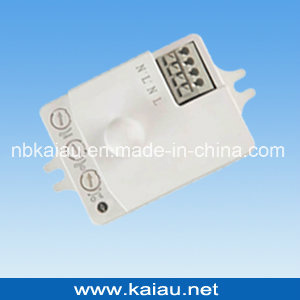

5.8GHz Mini Hf Microwave Sensor

Name: 5.8GHz Mini Hf Microwave Sensor
Brand: all-electronics-online.com
SKU: 820164035
Availability: InStock
Rating: 4.8 (66 reviews)

Price:	US $ 4.2-7.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-DP06B
Warranty:	2 Years
Bulk Order Deliver Time:	Within 20 Days
Sample Delivery Time:	Within 2 Days
Package:	Customized Color Box or White Box
Type:	Microwave Sensor Switch
Wires:	PNP (',Three-Wires)
Standard:	Standard
Certification:	CE
Principle:	Microwave Sensor
Application:	Corridor, Warehouse,Garage,Toilets etc.

Product Description

KA-DP06B 5.8Ghz Mini HF Microwave Sensor specifications:

1) Size: 70X38X27(mm)
2) Power supply: 220-240VAC 100-130VAC
3) Power frequency: 50/60Hz
4) Installation sit: Indoors, ceiling mounting
5) HF system: 5.8GHz CW radar, ISM band
6) Transmission power: <10mW
7) Rated load: 1200W (220-240VAC); 600W (100-130VAC)
8) Detection angle: 360°
9) Reach: 2-8m(radii. ), (adjustable)
10) Time setting: 8sec to 12min,(adjustable)
11) Light control: 2~2000LUX ,(adjustable)
12) Power consumption: Approx. 0.9W

Package:

1) White box or customized color box

2) Carton size: 46*36*39.5cm

3) Gross weight:9KGS

4) Quantity/carton:200pcs

Product introduction:

KA-DP06B is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and Automatic video control system of ATM, as well as other automatic induction control area. The Detection way has the below advantages compared with other as follows: 1. Non-contact Detection, 2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, Light^3. RF interference ability, 4. Transmission power only 0.2 mW, It will not harm the human Body. Simple installation+ easy wiring. We use appropriative micro processing integrator, not Only for high sensitivity and wide range of detection, and on very reliable work, error rate is Extremely low, It can stable working on the temperature range: - 15 ~ + 70 Celsius degrees.

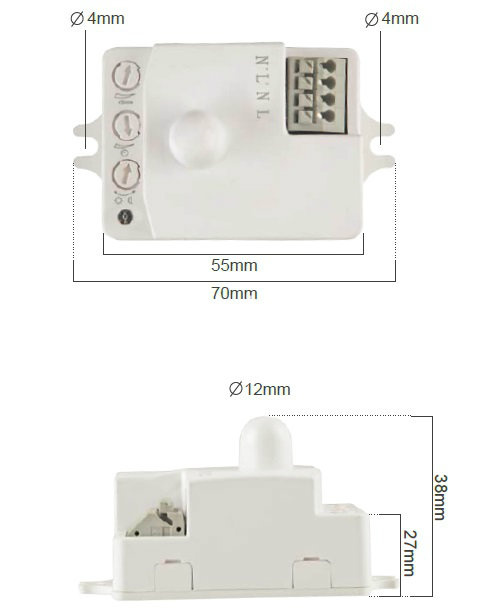

KA-DP06B size:

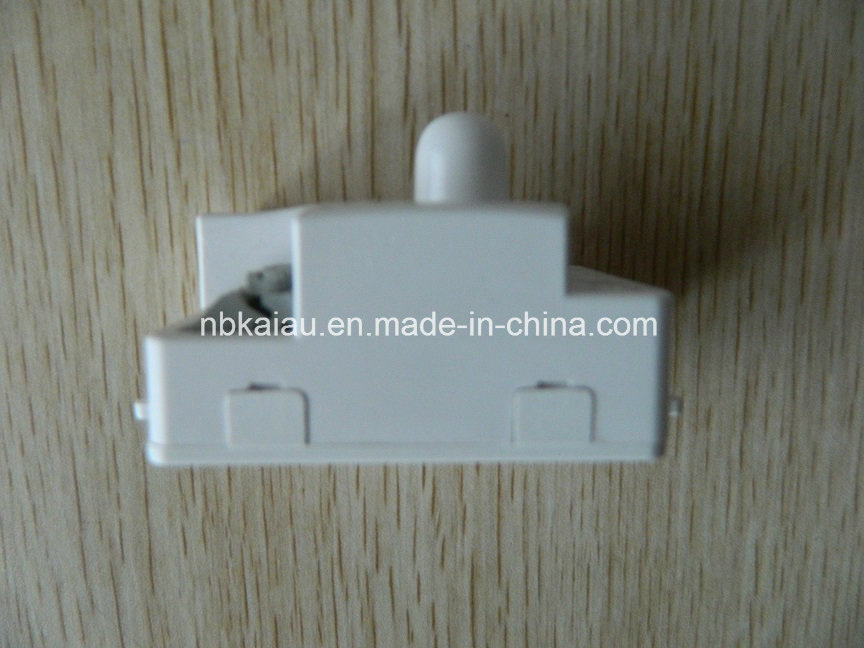

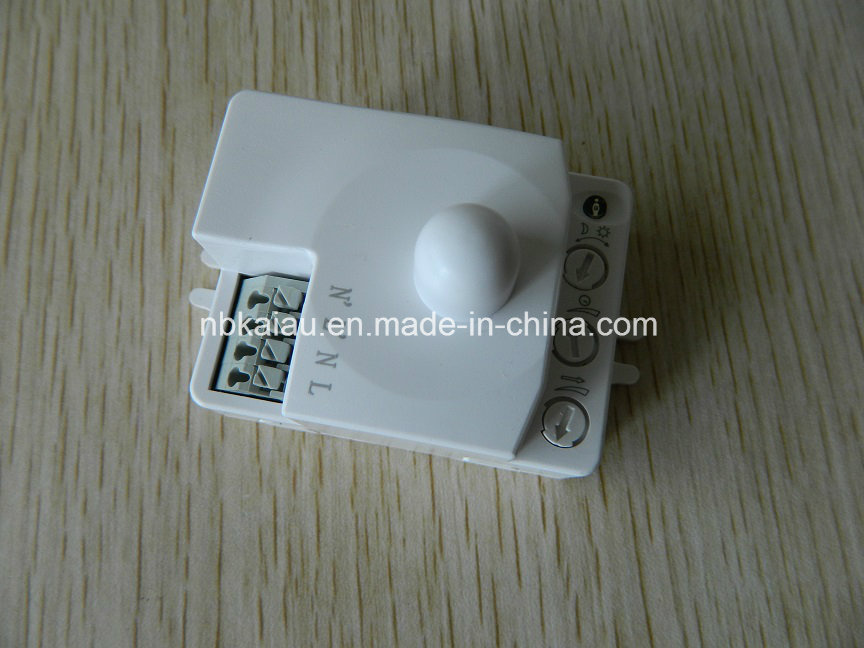

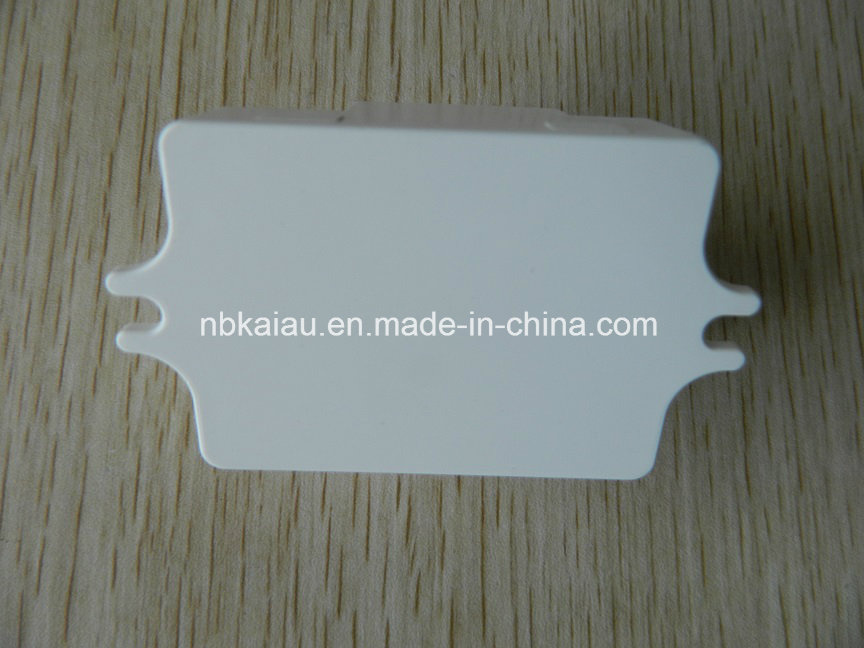

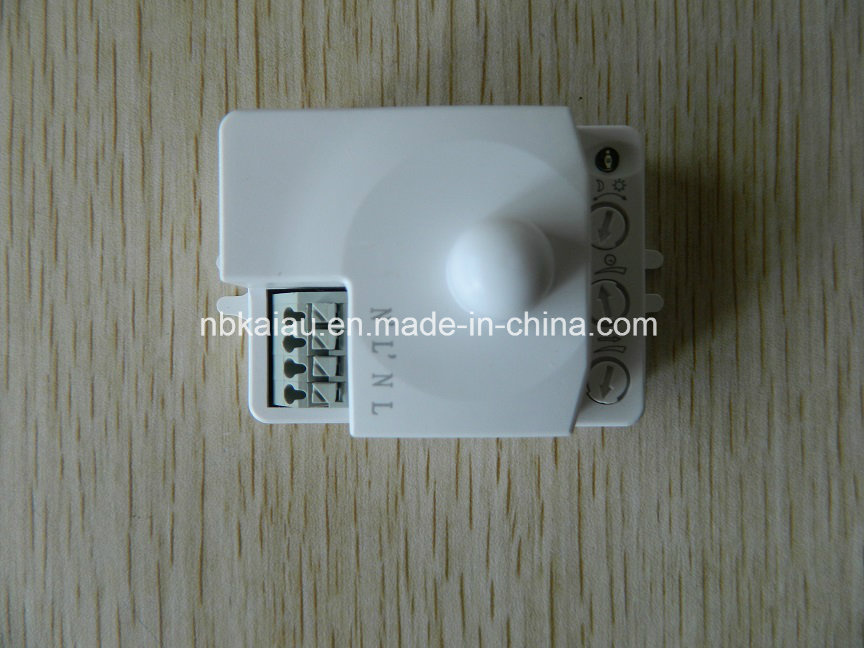

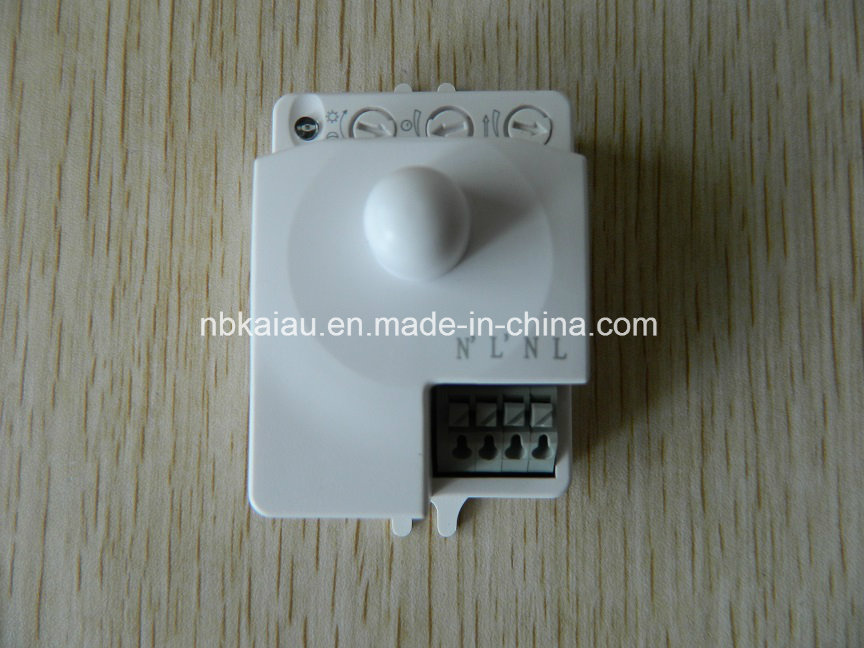

KA-DP06B Actual photos:
