Wuxi Liou Electronics Co., Ltd. >> 0.5 Class Accuracy 400A/5A Split Core Current Transformer

0.5 Class Accuracy 400A/5A Split Core Current Transformer

0.5 Class Accuracy 400A/5A Split Core Current Transformer
Price: US $ 40-45/Piece
Min Order: 100/Piece
Pay Type: T/T,Western Union
Prod Model: LO-KCT03-32
Phase: Single
Safety Standard: IEC60044-1
Frequency: 50-60Hz
Flame Retardant: UL94V-0
Thermal Class: Class B
Packaging: Carton
Output Current: 26.6mA
Working Voltage: AC700V Max
Production Process: Plastic Case
Material: Ferrite Core
Application: Measurement

Product Description

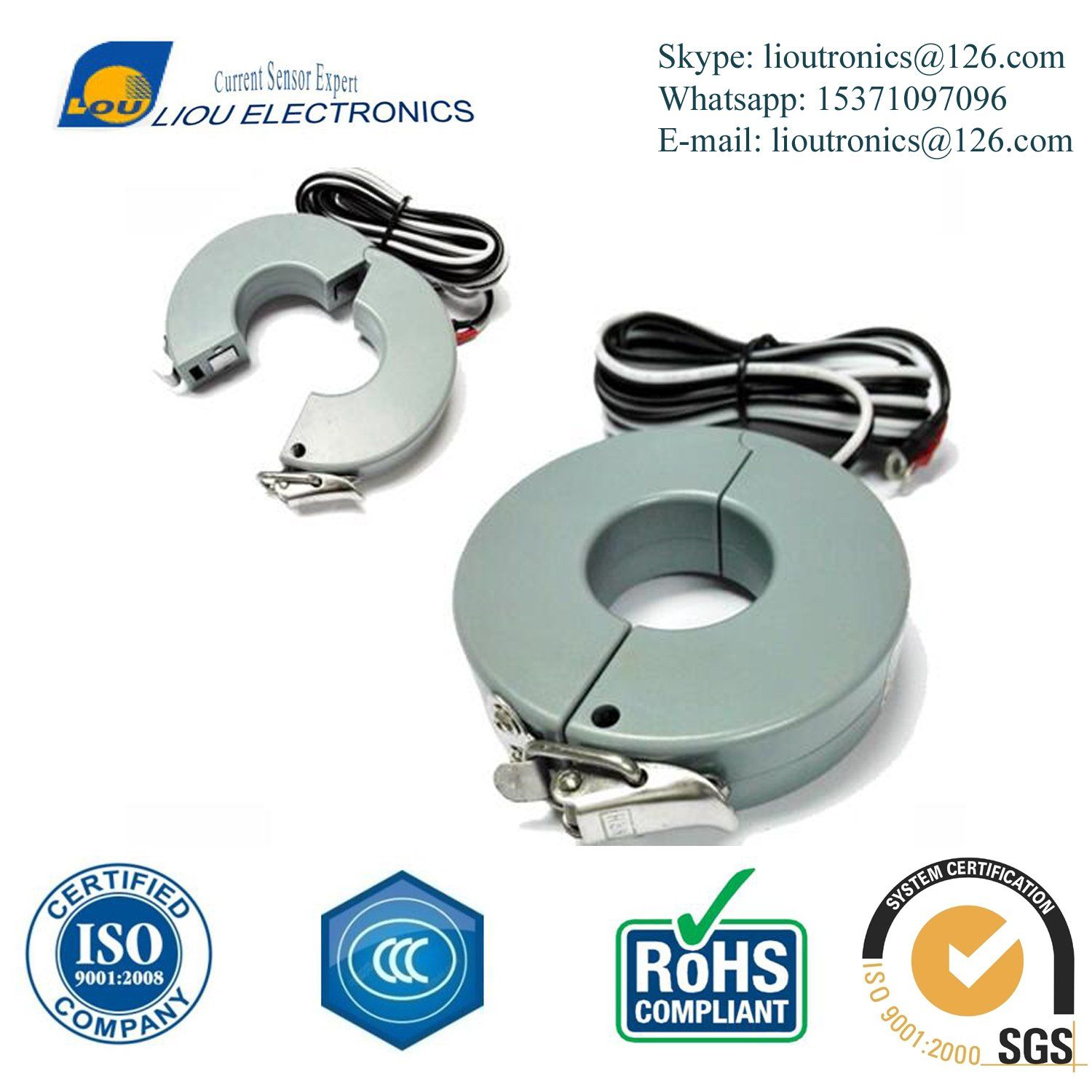

                                  Split core current transformers
Product Description

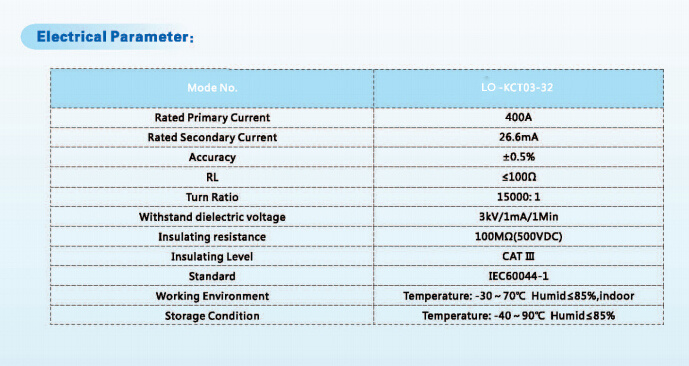

0.5 Accuracy 400/5A Split Core Current Transformer Specification Sheet

Accuracy0.5 class
Insulation ClassCat III
Rated Primary Current400A
Secondary Current26.6mA
Turn Ratio15000:1
Operating Temperature-30 C- 70C
Opening Dimension32mm
Withstand Voltage3000V/1mA/1min
Coil StructureToroidal
Applicationenergy monitoring
Packaging DetailsCarton
Delivery Detailas per customer's QTY

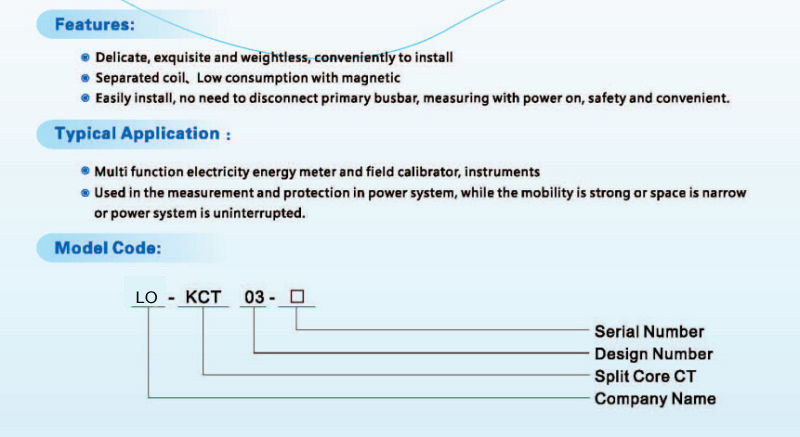

Features:
Delicate, exquisite and weightless, conveniently to install
Separated coil, Low consumption with magnetic
Easily install, no need to disconnect primary busbar, measuring with power on, safety and convenient.

Typical Application:
Multi function electricity energy meter and field calibrator, instruments
Used in the measurement and protection in power system, while the mobility is strong or space is narrow
or power system is uninterrupted



0.5 Accuracy 400/5A Split Core Current Transformer




Quality Standard and Custom Design Products

LIOU Current Transformer has been an industry leader in design and production of current transformer products for over 20 years. Our focus is to build quality products designed to meet your needs. You may choose from any of our standard products or we can design and build a custom solution specifically for your application.

Designed, Manufactured and Distributed From One Location

Every aspect of your order is handled in house allowing us the opportunity to design, manufacture and ship your current transformer product quickly. Each order is reviewed by one of our qualified engineers to make sure the product you are ordering will work for you.

Superior Goals and Higher Expectations

It is the goal of LIOU Current Transformer to maintain its position as a worldwide industry leader in current transformer design and production. We will accomplish this by providing you with quality products and services that meet or exceed your current and future expectations.

Our Objective Is For You to Have Full Confidence in LIOU Current Transformer.

Each employee, at every level within the company, understands your satisfaction is fundamental to our growth and long-term development. LIOU Current Transformer believes that this level of quality will be achieved by:

1. A Total Quality Management approach. Every employee, supplier and customer is regarded as an essential part of the quality achievement process.

2. An error-free performance standard, based on prevention and development of a "Get It Right The First Time" work environment.

3. Implementation and maintenance of a quality assurance process that includes a hands on inspection of all your products during the manufacturing process with a final quality inspection prior to shipping.

4. Adhering to safety standards.

5. Development of all employees through continued training.

We look forward to demonstrating to you the superior quality and customer service our customers have come to expect from LIOU Current Transformer.
