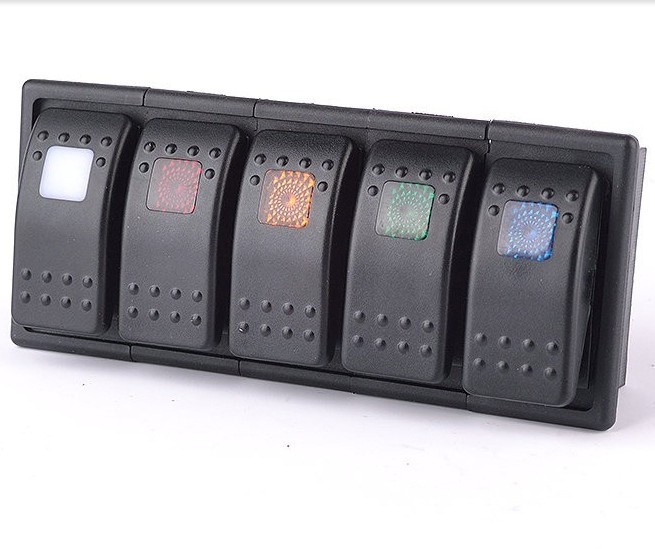

5 LED Color Bar Rocker Switch Panel Arb Carling Style 3 Pins DC 12V- 24V with Clip Holder

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fitted Car:	All Cars
Size:	120*131*86mm
Rating Voltage:	DC 12V, 24V
Ampere:	20A, 10A
Switches Available:	6 Gang
IP Rating:	IP68
Loop Circuit:	on-off
Material:	ABS
LED Color Color:	Red
Function:	Turn Switch, Windscreen Wiper, Dimmer Switch, Industry
Structure:	Power Built-in Type
Contact Type:	Type a Contact
Detection Method:	Retro-reflective Mode
Pole:	3
Rated Continuous Current:	10A
Number Of Switch:	Double Control Switch
Brand:	My
Color:	Blue, Green, Red, White
Usage:	Control Switch

Product Description

Packaging & Delivery

Packaging Details:	1 x 6 Gang LED Rocker Switch Panel  1 x pre-printed labels  6 x screws
Delivery Detail:	5 days after receiving the payment


Specification:

Material: ABS

Color: Black

LED color: Red

Quantity: 1 pc

Dimension: 13 x 12 x 8 cm / 5.1" x 4.7" x 3.1"(LxWxH)

Installation: Pre-wired

Switches Available:6 Gang

Amp Rating per circuit: 15amp Max

Rocker Switch: 6

Rating: DC 12V 20A,24V  10A

Dielectric Strength: AC 1500V 1minute

Breaker: 6 (5A x 1;10A x 2;15A x 1)

Loop Circuit: ON-OFF

Switch System: Water-resistant enclosed Rocker switch

Operating Temperature: -25degree to 80degree

Electrical Life: 10000 make and break cycles  at full load


Package Included:
1 x 6 Gang LED Rocker Switch Panel
1 x pre-printed labels
6 x screws



*************************************************
