5-Position Rotary Switch for Automatic Door

Name: 5-Position Rotary Switch for Automatic Door
Brand: all-electronics-online.com
SKU: 689849031
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GV-636E
Function:	Auto/Open/off/Exit/Half-Open
Function Switch:	5 Range
Key Operation Time:	Over 75000 Times
MOQ:	5-10PCS
Panel Dimension:	1105050mm
Installation Hole Dimension:	1054541mm
Display Screen:	TFT36*25mm
Usage:	Digital Products
Standard:	Nonstandard
Structure:	Self-Reset
Operation:	Combined
Certification:	CE
Condition:	New
Rotary Number:	5-Position

Product Description

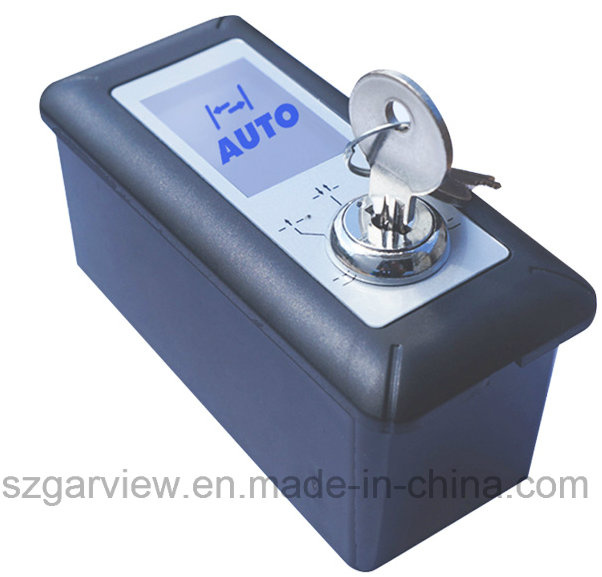

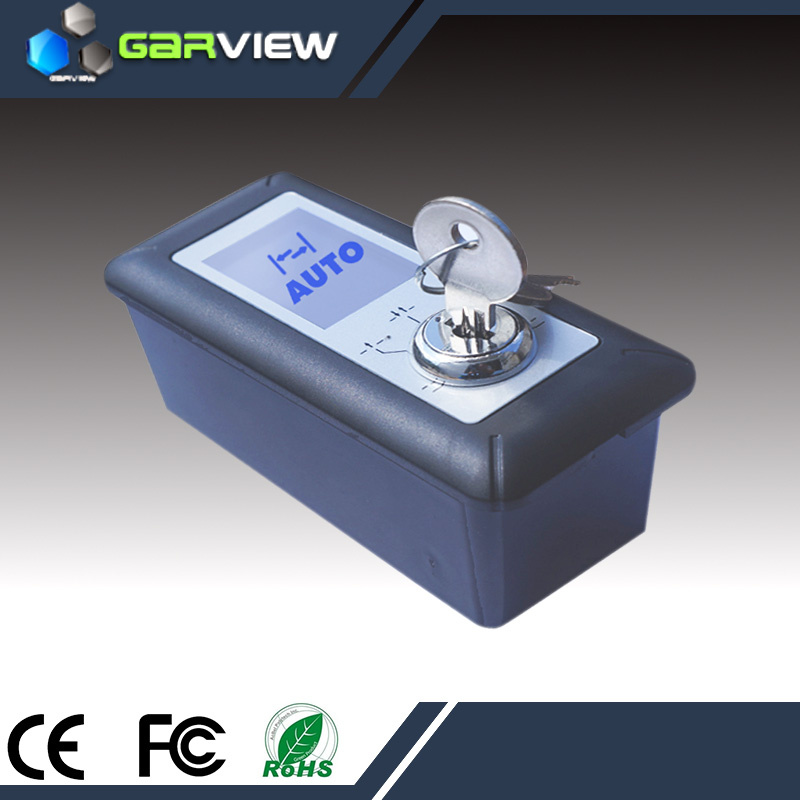

5-position rotary switch for automatic door

Product Description

1.This product is total with five functions. Autodoor can reach the functions of automatic/exit only/Partial Open/Locked and Open,accordingly to the turned position of key.
2.Displaying corresponding instruction visually on different occasion.
3. With TFT true color liquid display, special design with bottom panel, convenient for different installation.
4. Adopt wide voltage to connect different power supply with autodoor controllers.

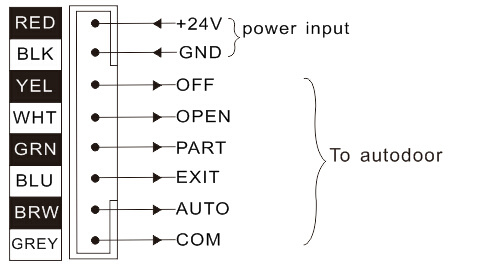

Wiring Connection

Parameters

Function Switch	5 Range
Key operation time	Over 75000 times
Display Screen	TFT36×25mm
Cover Dimension	110×50×50mm
Installation hole dimension	105×45×41mm

Shenzhen Garview Technology Co., Ltd, has been specialized in automatic door control, access & attendance products for years. Garview series products are widely used in automatic door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.

We own rich experience in automatic door controlling system and product application in the market. Garview provides full series accessories for automatic door:

Infrared safety sensor, Motion activation sensor, funtional switching selector, hand free sensor, wireless touch switch, keypad access, Power for access, Electronic bolt, EM lock for sliding door…

With high quanlity products, Garview items are regularly provided to different automatic door factories, engineer contractors and export merchants. Garview Company has become a globalized professional in this field since our products exported to oversea markets such as Iran, Tukey, Portugal, the Netherlands, and has gained a good reputation among customers. In the spirit of innovative, Gariview focuses on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent and security guard.
