0.5 Precision FL-2 50A 75mv DC Current Shunt Resistor for Digital Meter

Name: 0.5 Precision FL-2 50A 75mv DC Current Shunt Resistor for Digital Meter
Brand: all-electronics-online.com
SKU: 823077885
Availability: InStock
Rating: 4.4 (40 reviews)

Price:	US $ 2.3-2.9/Piece
Min Order:	50/Piece
Pay Type:	L/C

Contact Supplier

Showroom Product Company Profile

Prod Model:	FL-2/50A/75mV
Function For Resistance:	Shunt Resistor

Product Description

Description:

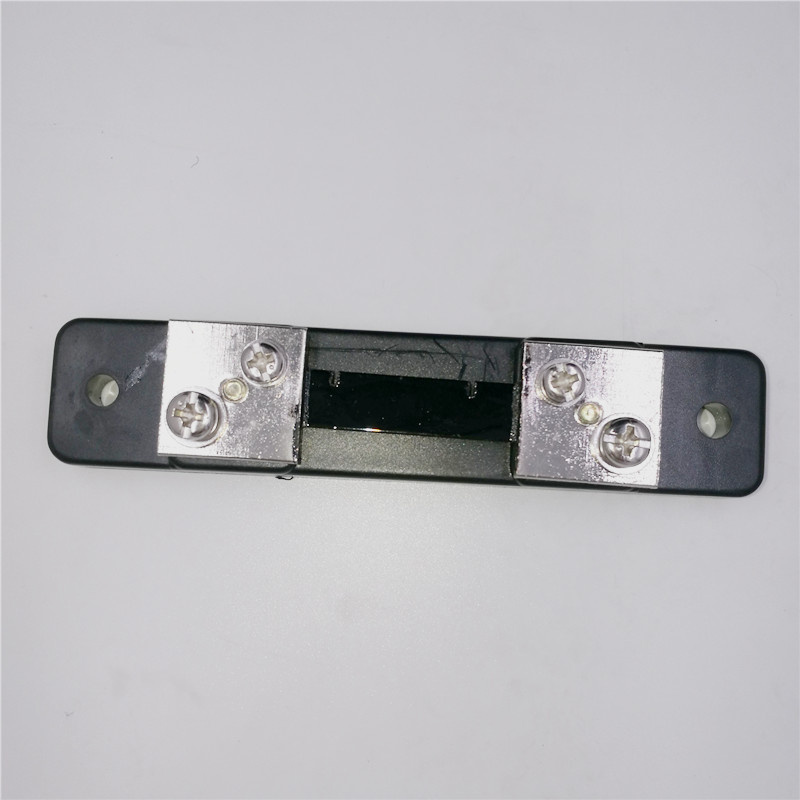

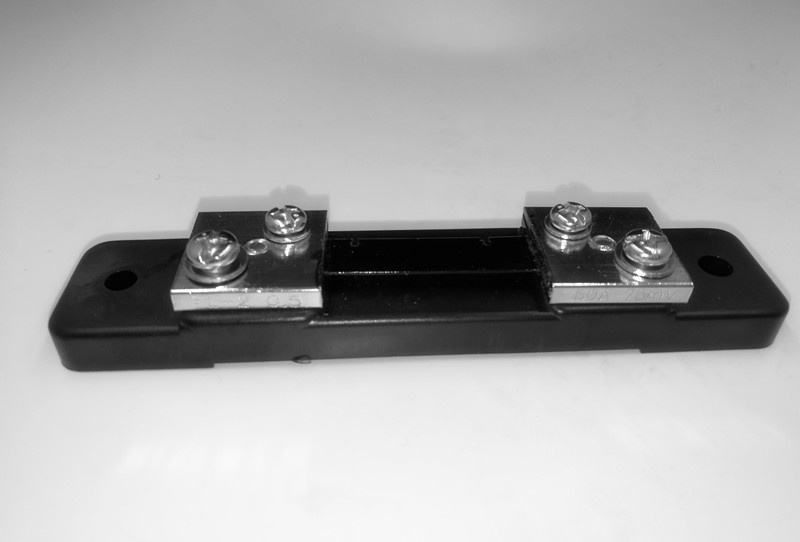

This is 50A 75mV FL-2 DC current shunt resistor for amp ampere panel meter

Specifications:

Accuracy level : 0.5 level; .
Environmental conditions: -40 ~ +60 â, the relative temperature ≤ 95% (35 ° C)
Overload performance: 120% of rated current, 2 hours
Voltage drop: 75mV
Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 ° C; rated current of 50A does not exceed 120 ° C
Weight: 62g
Size:12*2.6cm
Package included:

1 x 50A 75mV DC Shunt Resistor (Resistor only ,Voltage apparatus not included)

Peacefair Electronic Co., Ltd is founded in 2014 year, it is located in Ningbo Zhejiang. The area of the factory is 700 square meter, we have two professional assembly line, 12 workers, 2 engineers, 2 sales men. We are a professional manufacturer of AC and DC digital panel meter. We manily work on the design, produce and whosale and retail of the electronic products. All products have the patent and CE, FCC certificate. The products have been sold to world wide and have been used by the user in various kinds of field.

We are always doing our best to develop and produce good products with best price. Welcome to my company and look forward to doing business with you in the near future.
