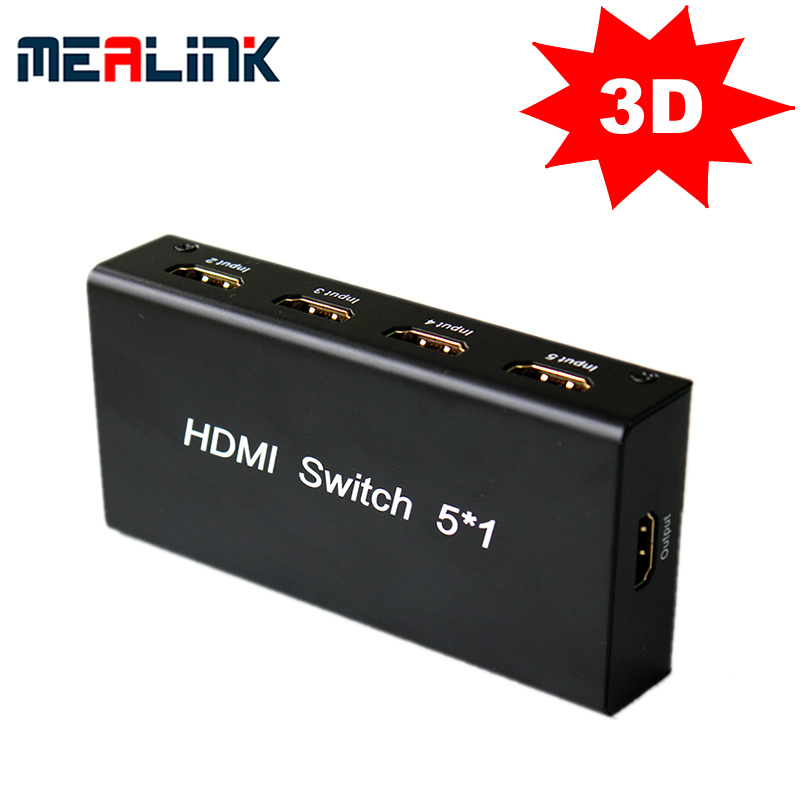

5 to 1 HDMI Switcher/5 Ports HDMI Switcher (YL0501)

Name: 5 to 1 HDMI Switcher/5 Ports HDMI Switcher (YL0501)
Brand: all-electronics-online.com
SKU: 700556115
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL0501
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Avaliable
HDMI Resolution:	24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I
Supports Video Color Format:	Dts-HD/Truehd/Lpcm7.1/Dts/AC3/Dsd
Maximum Working Current:	600mAh
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

HDMI switcher 5 X 1
HDMI version: HDMI 1.3
HDMI switcher 5 X 1, 5 inputs, 1 output, 5 ports HDMI switcher, 5 port HDMI switch, 1080P, HDMI 1.3V
HDCP version: HDCP 1.2
HDMI resolution: 24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I
Supports video color format: 24-bit/deep color 30-bit, 36-bit
Supports audio format: DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD
Maximum transmission bandwidth: 10.2Gbps
Input/output TMDS signal: 0.5 to 1.5Vp-p
Input/output DDC signal: 5Vp-p (TTL)
Input cable distance: ≤ 15m HDMI AWG26
Output cable distance: ≤ 25m AWG26 HDMI 1.3 standard cable
Maximum working current: 600mAh
Power adapter format:
Input: 50Hz/60Hz, 100 to 240V AC
Output: 5V DC/0.8A
Operating temperature range: -15 to +55 degrees
Operating humidity range: 5 to 90% RH (no condensation)
Dimensions: 11.5 X 6 X 2.7cm
Weight: 0.475kg
HDMI Logo and High Definition Multimedia Interface are Trademarks or registered trademarks of HDMI Licensing LLC

CONNECTING AND OPERATING
1. Connect one cable from each HDMI source devices into HDMI Switcher inputs.
2. Connect one cable from display (monitor or projector) into the HDMI Switcher outputs.
3. Connect 5V power supply to the HDMI 5X1 Switcher.
4. Use the RMT-IR remote control port to remotely switch or use button to switch between sources.
