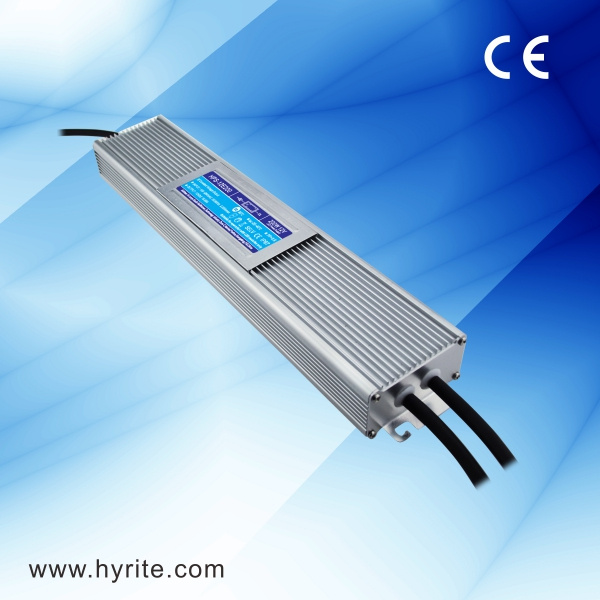

5 Years Warranty 200W Waterproof LED Power Supply

Name: 5 Years Warranty 200W Waterproof LED Power Supply
Brand: all-electronics-online.com
SKU: 725476142
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 32/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HPS-12E200
Output:	200W
Input Voltage:	90-265V
Output Voltage:	12V
Power Factor:	0.9
Efficiency:	91%
IP Rating:	IP67
Certificates/Standards:	Ce
Dimensions(LWH):	36971.539mm
Cooling:	Free Air Convection
Installation:	Outdoor Waterproof
Usage:	Construction
Output Type:	Dual
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	90-265
Brand:	Neonpro

Product Description

Features of led power supply: 200W 12V

1. Features of LED Power Supply
-Long life span waterproof LED power supply with high efficiency
-With EMC, meet the newest electromagnetic compatibility standard
-Meet the IEC energy efficiency standards.5 Years warranty
-With built-in Active PFC(Power Factor Corrector), PF> 0.9
-Waterproof IP67,suitable for indoor or outdoor LED application
-Seamless aluminum housing with Class I design & Cooling by free air
convection
-Protection: undervoltage/short circuit/over voltage/over load/over
temperature

2. Specifications of LED Power Supply

Model no.	HPS-12E200
Input voltage	90-265 VAC 50/60 Hz
Max. power	200W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	Yes
Power factor	0.9
Efficiency	91%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	16.7A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~+40 ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE

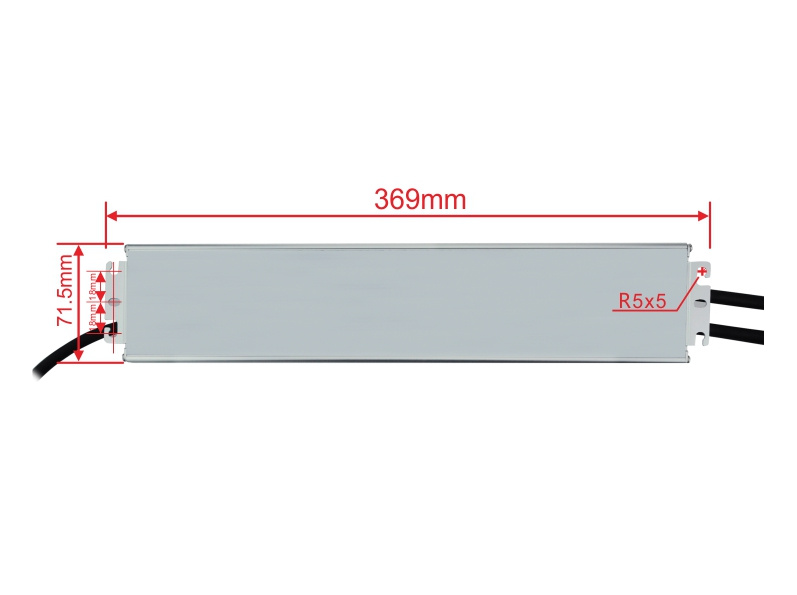

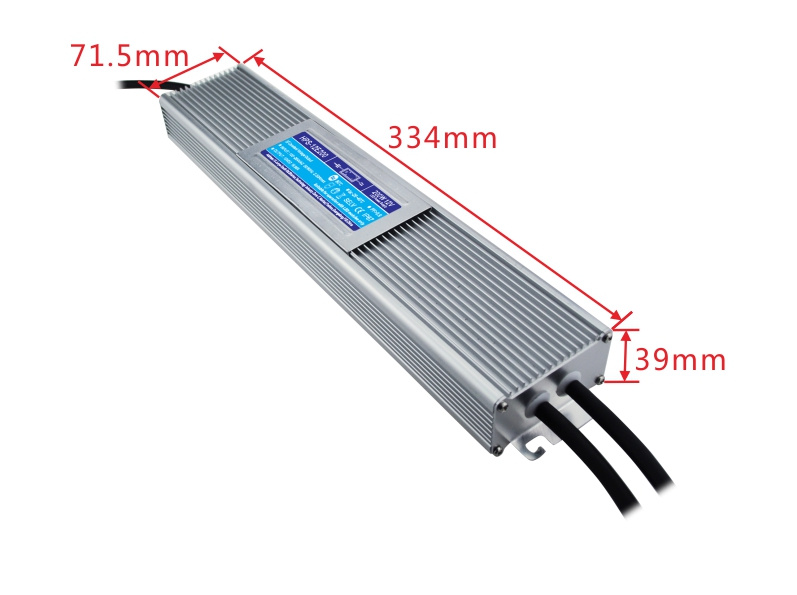

Product Dimension	36971.539mm
Packing	10pcs/ carton; 23KG; 410315225mm

3. Detail pictures of LED power supply

4. Applications of LED power supply
*LED module & LED strip
*Perforating lamp & pixel lamp
*Light box & channel letter
*Wall washer
*Other signage lighting

5. Important Parameter of LED Power supply
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP67

6. Equipments and Production Lines

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
