50/60Hz E26/E27 Holder Sensor Switch Bulb Holder Controls

Name: 50/60Hz E26/E27 Holder Sensor Switch Bulb Holder Controls
Brand: all-electronics-online.com
SKU: 815772665
Availability: InStock
Rating: 4.5 (113 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	302
Type:	Photoelectric Switch

Product Description

Basic Specification:

Rated Voltage	100-120VAC 50/60Hz
Rated Loading	150W Tungsten
On/Off Levels	10~20Lx On (Dusk) 30~60Lx Off (Dawn)
Ambient Temperature	-40ºC ~ +70ºC
Voltage	110-220V

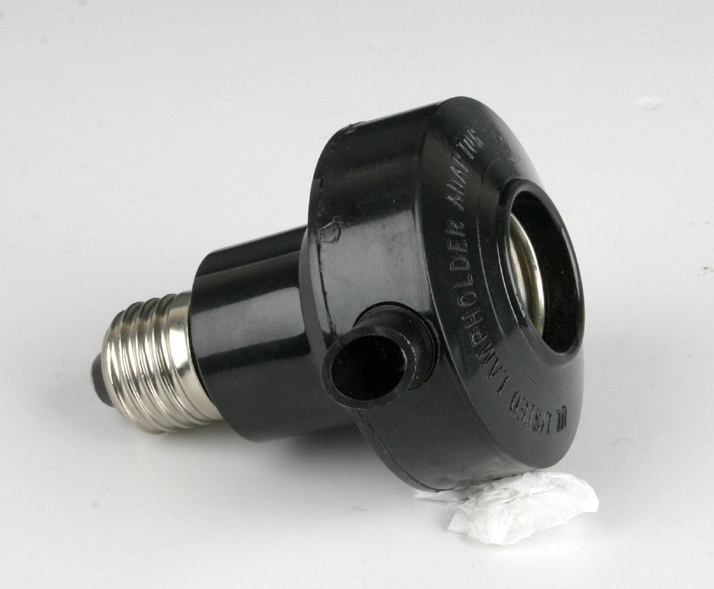

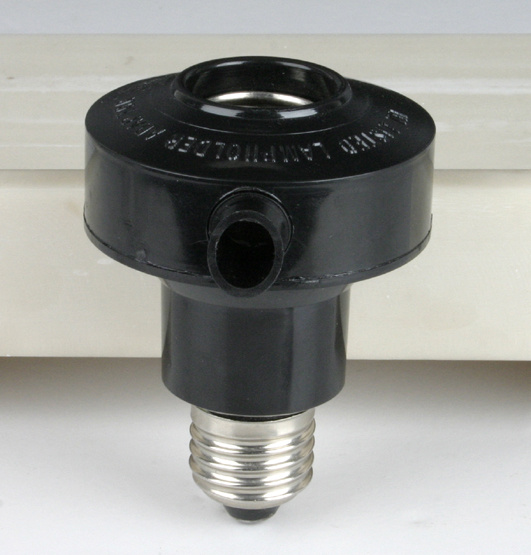

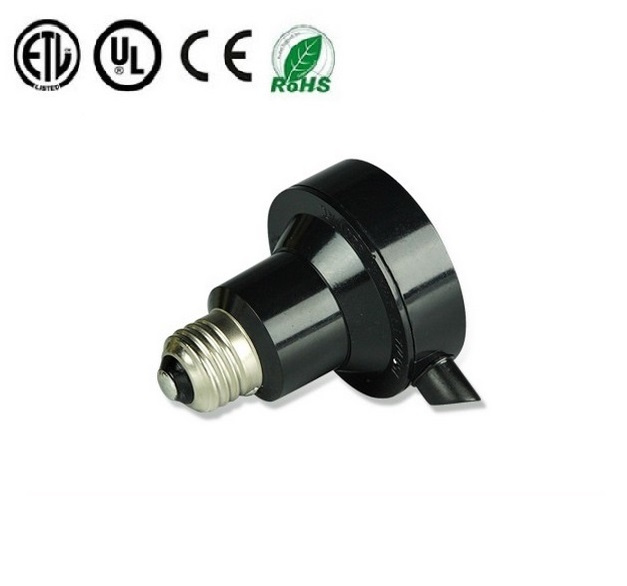

Product Pictures:

Model	JL-302A/JL-302B
Rated Voltage	100-120VAC, 50/60Hz /200-240VAC,50/60Hz
Rated Loading	150W Tungsten
Power Consumption	1.5VA
On/Off Levels	10-20Lx On(Dusk) 30-60Lx Off(Dawn)
Ambient Temperature	-40ºC ~ +70ºC
Related Humidity	96%
Body Meas.	98×Φ70mm(JL-302); 76×Φ41mm(JL-303)
Lamp cap & holder	E26/E27

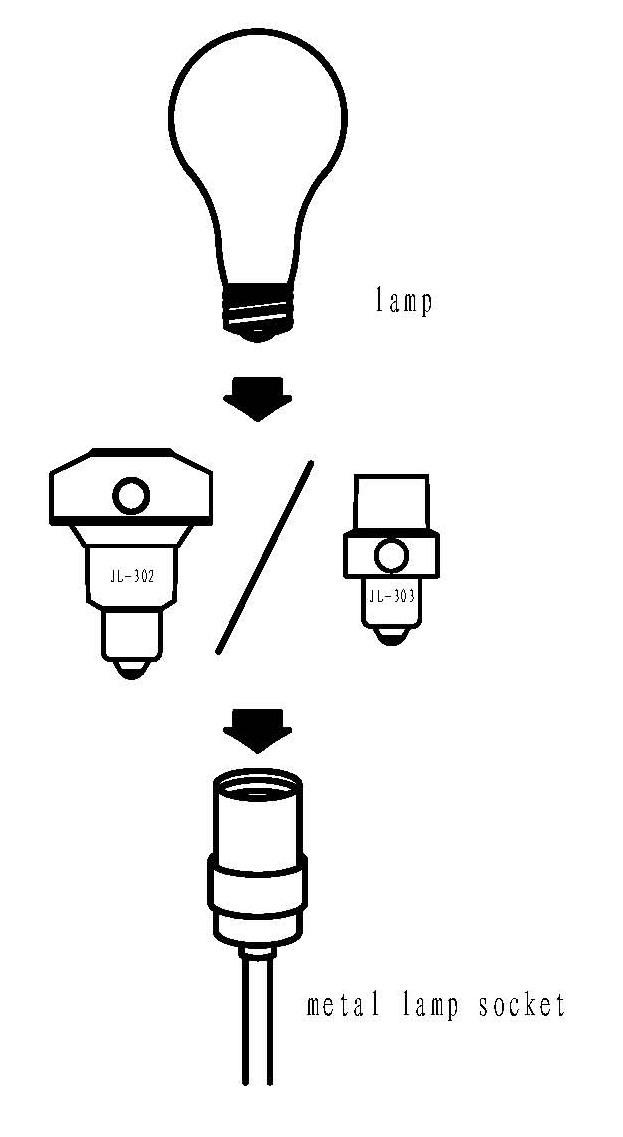

Installation:

Disconnect power;

1. Screw bulb off;
2.Screw the unit into bulb holder completely.
3. Screw bulb into the bulb holder of the unit.
4. Connect power. Turn lamp switch ON.

Do not install the switch with the Photocell facing artificial or reflected light.This will cause the unit to cycle on and off at night.

Avoid to use the unit in a opaque or reflective glass lantern, as well as use in a wet place.
