| Prod Model: |
RF50-114-R |
| Inner Conductor: |
Smooth Copper Tube |
| Insulation: |
Foamed Polyethylene |
| Outer Conductor: |
Helical Corrugated Copper Tube |
| Jacket: |
Black Polyethylene |
| Application: |
RF Cable |
| Cover Material: |
PE |
Product Description

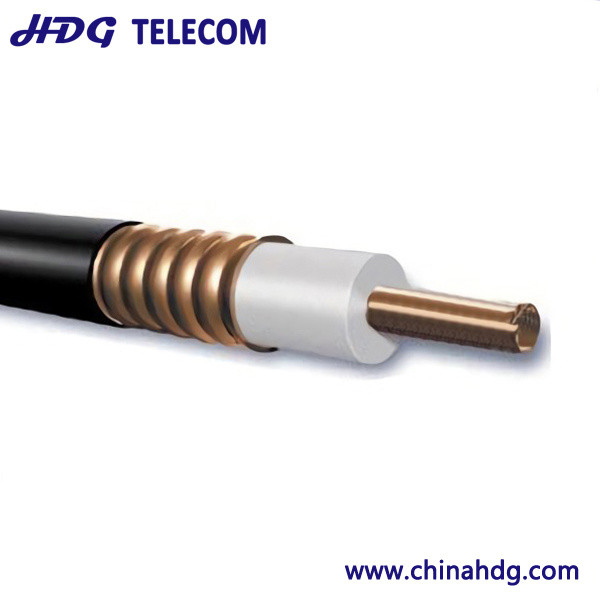

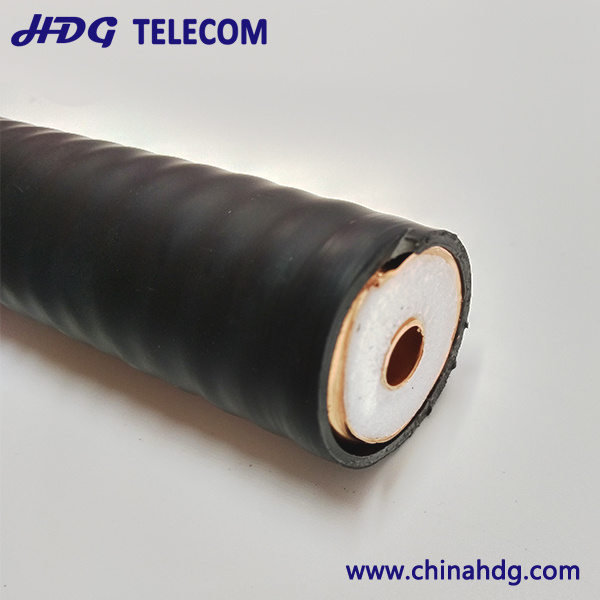

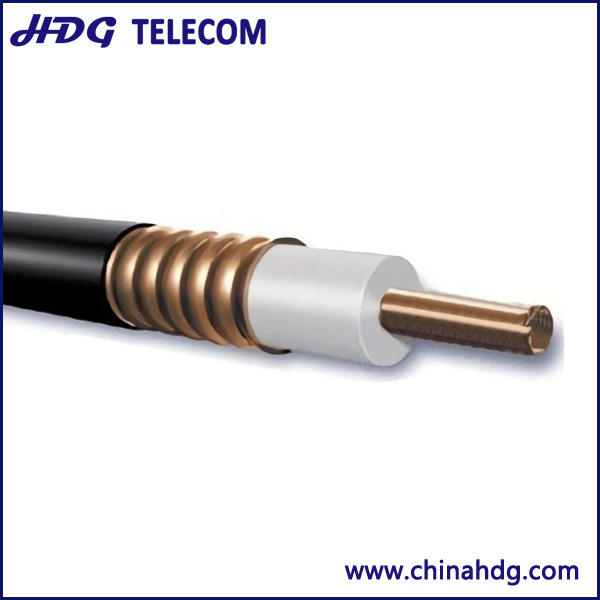

DESCRIPTION¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯50 ohm 1-1/4" coaxial feeder cable feature a lower VSWR, perfect shielding effectiveness, and extraordinary inter-modulation performance, these lead to fewer energy loss and outer interference. Morever, its high-performance of attenuation allows coaxial cable to be used in different RF systems, such as 3g, 4g mobile communication. And it have a wide range of applications, such as indoor distribution, broadcast, various base stations, wireless cellular, and others. | Inner conductor | Smooth copper tube | φ 1300mm |
| Insulation | Foamed polyethylene | φ 32.80mm |
| Outer conductor | Helical corrugated copper tube | φ 35.80mm |
| Jacket | Black polyethylene | φ 38.80mm |
DETAILS¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
MECHANICAL PROPERTIES¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯| Min. single bending radius | 200 mm |
| Min. reapeted bending radius | 300mm |
| Max. tensile force | 3600 N |
| Recommended maximum clamp spacing | 1 m |
ELECTRICAL PROPERTIES¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯| Characteristic impedance | 50±1 Ω |
| Nominal capacitance | 75 pF/m |
| Nominal inductance | 0.20 μh/m |
| Propagation velocity | 87 % |
| DC breakdown voltage | 8.0 kv |
| Minmum insulation resistance | >5000 MΩ·km |
| Peak power rationg | 205 kw |
| Cut-off frequency | 3.3 Ghz |
| Screening attenuation | >120 dB |
| PIM | ≤-160 dBc@(2×20w) |

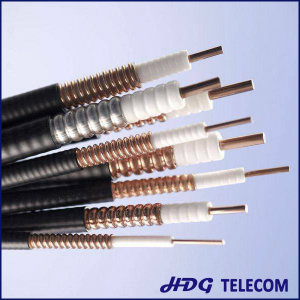

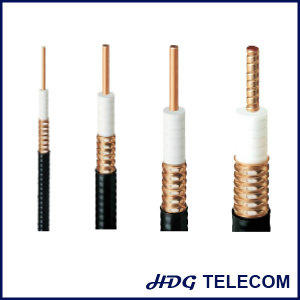

SPECIFICATION¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯| Design | Product code | Description |
| Regular Jacket | RF50-14-R | 50 ohm 1/4" coaxial cable |
| RF50-38-R | 50 ohm 3/8" coaxial cable |
| RF50-12-R | 50 ohm 1/2" coaxial cable |
| RF50-12S-R | 50 ohm 1/2" super flexible coaxial cable |
| RF50-78-R | 50 ohm 7/8" coaxial cable |
| RF50-114-R | 50 ohm 1-1/4" coaxial cable |
| RF50-158-R | 50 ohm 1-5/8" coaxial cable |
| Fire Retardant Jacket | RF50-14-F | 50 ohm 1/4" coaxial cable (fire retardant) |
| RF50-38-F | 50 ohm 3/8" coaxial cable (fire retardant) |
| RF50-12-F | 50 ohm 1/2" coaxial cable (fire retardant) |
| RF50-12S-F | 50 ohm 1/2" super flexible coaxial cable (fire retardant) |
| RF50-78-F | 50 ohm 7/8" coaxial cable (fire retardant) |
| RF50-114-F | 50 ohm 1-1/4" coaxial cable (fire retardant) |
| RF50-158-F | 50 ohm 1-5/8" coaxial cable (fire retardant) |
