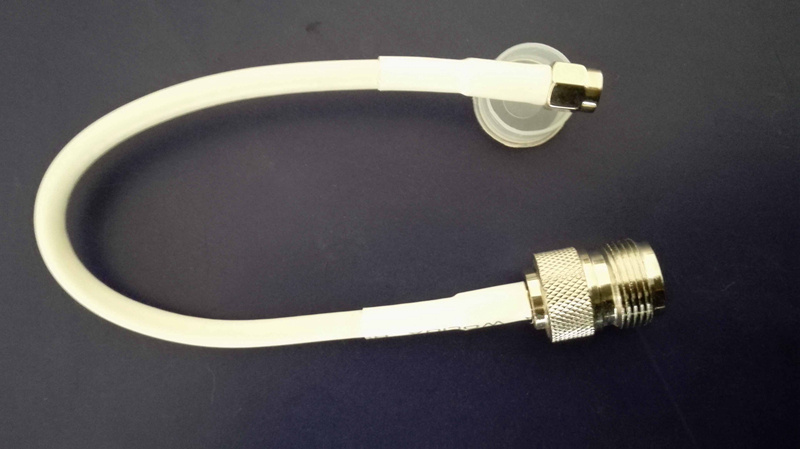

50 Ohm Coaxial Cable LMR300 with Connectors

Name: 50 Ohm Coaxial Cable LMR300 with Connectors
Brand: all-electronics-online.com
SKU: 765931405
Availability: InStock
Rating: 5 (27 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	LMR300 RF Coaxial Cable
Inner Conductor:	1.78 CCA/Bc
Insulation:	4.83 Foam PE
First Shield:	4.98 Bonded Aluminum Foil
Second Shield:	5.72 TCCA Wire Braid/Al-Mg/Tc
Jacket:	7.62 PVC/PE/LSZH
Application:	Radio Transmission
Certification:	RoHS
Conductor Material:	TCCA Wire Braid/Al-Mg/Tc
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Wire Core Material:	Copper Clad Aluminum/Bare Copper
Model:	LMR300
Brand:	Ottocable

Product Description

LMR300

Overview
This is a coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.It has been widely applied to radio transmission,base radio antenna station and other communication systems.

Features
·         50 Ohm data signal transmission;
·         The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
·         Excellent performance in high frequency,VSWR stability;
·         Similar to the 5D-FB coaxial cable;
·         RoHS compliant;
Assemblies & Application

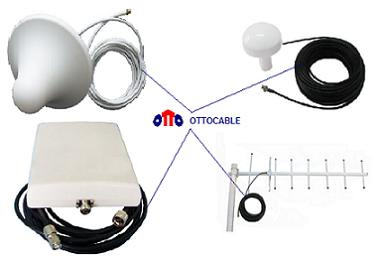

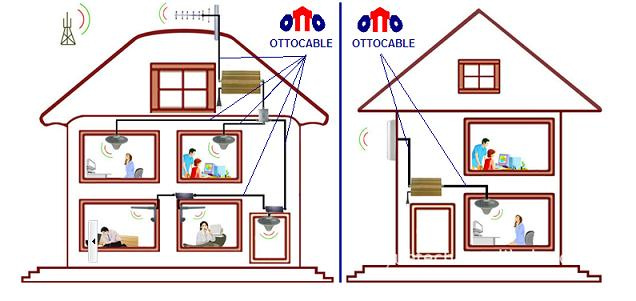

These 50 Ohm 300 series coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems

     Communications RF Coax Cable

LMR300

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper /CCA Foam PE Bonded Aluminum Foil TC Wire Braid /AL/TCCA PVC/PE/LSZH	1.78 4.83 4.98 5.72 7.62	Per customer's requirements: Out conductor could be 96,112,128 or 144 TC wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(ºC)
Operating Temp(ºC)

50±3
78.4
85.0
≥20
≥90
2000.0
-30 to +70
-30 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
150 220 450 900 1500 1800 2000 2500	7.9 9.6 13.8 19.9 26.0 28.7 30.3 34.2

More Ideas
1)  If require conventional construction and materials, please click FLMR300;
2)  If require good flexibility,please click LMR300-UF;
3)  If require lightweight and weldable shield,please click LMR300-CCA-TCCA or LMR300-CCA-TC ;
4)  If require lightweight and lower price,please click LMR300-CCA-AL ;
5)  For more FLMR300 assemblies,please click FLMR300 ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.

Company Link :http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
