50 Ohm Coaxial Cable (LMR300)

Name: 50 Ohm Coaxial Cable (LMR300)
Brand: all-electronics-online.com
SKU: 739734505
Availability: InStock
Rating: 4.5 (136 reviews)

Price:	US $ 0.1-1.5/Meter
Trade Terms:	FOB,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/CCA
Insulation:	Foam PE
Shield:	Double Shield
Jakcet:	PVC/PE/Lszh
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial

Product Description

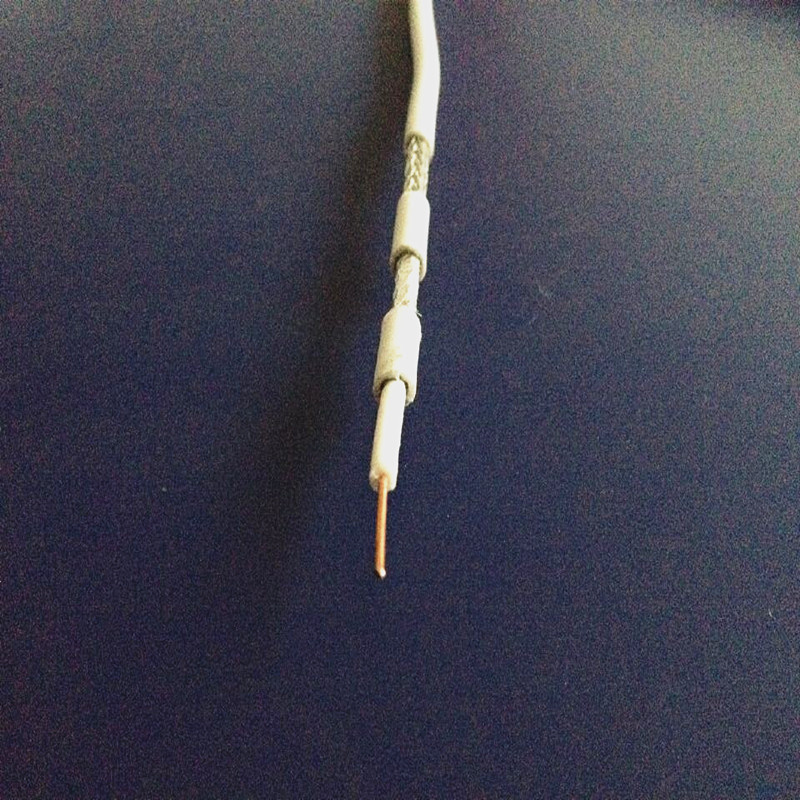

50Ohm RF Coaxial Cable LMR300

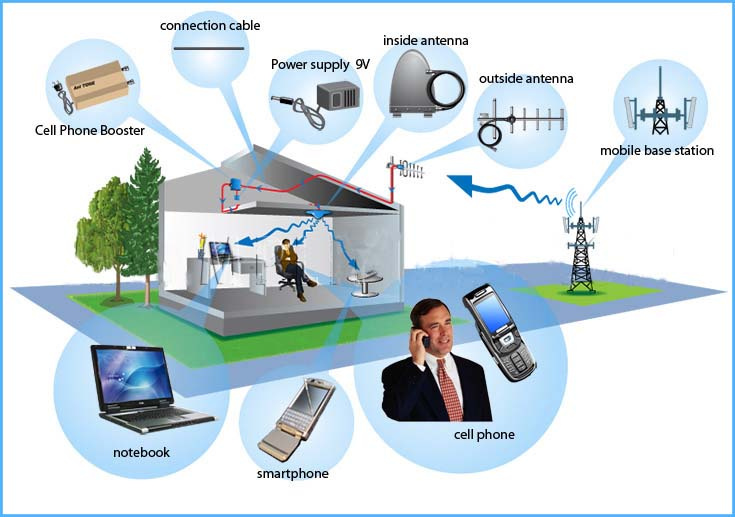

These 50 Ohm 300 series coaxial cables can be fixed with various connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to 3G,4G, CDMA,GSM radio transmission,base radio antenna station DAS, and other communication systems.

Features:

1).50 Ohm data signal transmission;
2).The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
3).Excellent performance in high frequency,VSWR stability;
4).Similar to the 5D-FB coaxial cable;
5).RoHS compliant;

50Ohm RF Coaxial Cable LMR300
Construction
Item	Material		Diameter(mm)

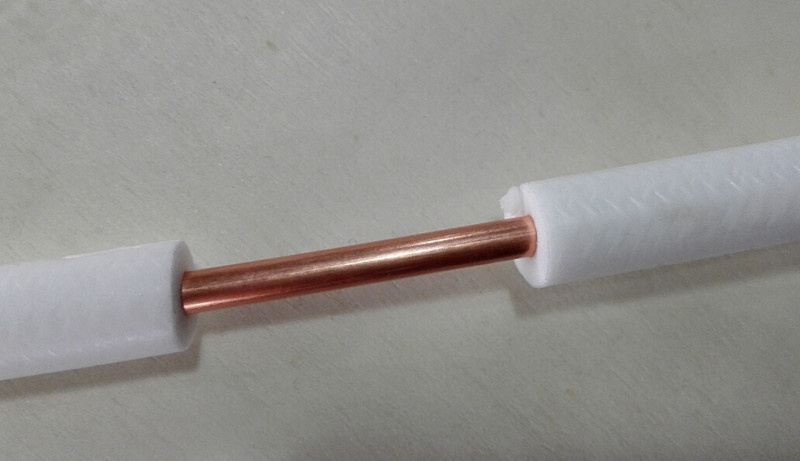

Inner Conductor	Bare Copper / Copper Clad Aluminum		1.78
Dielectric	Foam PE		4.83
First Shield	Bonded Aluminum Foil		4.98
Second Shield	Tinned Copper / AL-Mg Wire Braid		5.72
Jacket	PVC		7.62

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@450MHz	14.6
Velocity of Propagation(%)	85	@900MHz	21.0
Return Loss(dB)	≥18	@1500MHz	27.0
Capacitance	78.4	@1800MHz	30.0
Shielding Effectiveness(dB)	≥90	@2000MHz	32.1
Operating Temperature(ºC)	-30 to +70	@2500MHz	36.4

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
