50 Ohm Coaxial Cable (RG174) for Car Antenna

Name: 50 Ohm Coaxial Cable (RG174) for Car Antenna
Brand: all-electronics-online.com
SKU: 619692012
Availability: InStock
Rating: 4.3 (94 reviews)

Price:	US $ 0.01-2.0/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10KM
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG174
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
50ohm Rg Coaxial Cable:	Rg174
Inner Conductor:	Bc/Tc/CCS
Insulation:	Solid PE/ XLPE
Jacket:	PVC
Impedance:	50 Ohm
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PE
Certification:	RoHS
Application:	Car Antenna
Range Of Application:	Car Antenna
Brand:	Otto Cable

Product Description

50 Ohm GPS Antenna Cable RG174/ Car Antenna Cable

50 Ohm RG174 coaxial cable mainly designed for gps,beidou, car antenna systems.

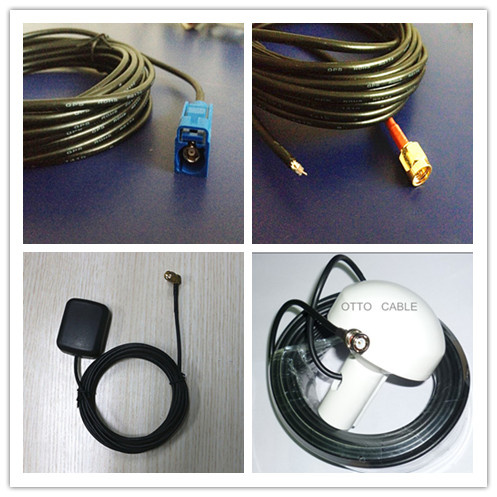

Can be fixed with various connectors,such as SMA,FRAKA,BNC,MCX,SMB connectors.
These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM, car antenna and other communication systems.

Features:

1).50 Ohm data signal transmission;
2).The inner conductor could be stranded or solid;
3).Special insulation materials,providing good electrical property and welding performance;
4).Small diameter is ideal for tight fit applications;
5).Customized cable color , winding and connector, meet your different requirements;
6).RoHS compliant;

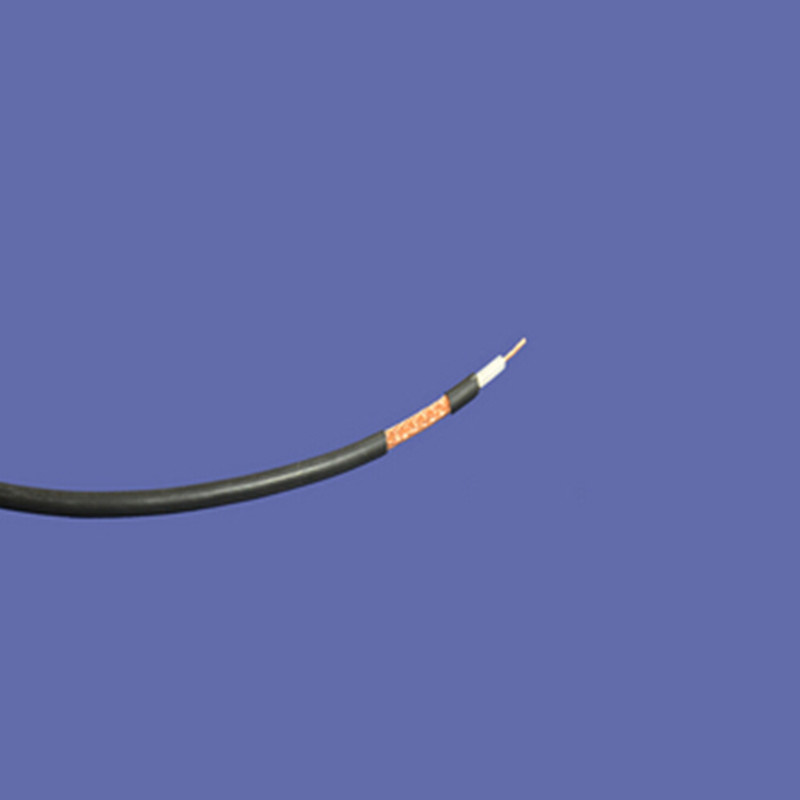

RG174 Coaxial Cable
Construction
Item	Material		Diameter(mm)
Inner Conductor	TC / BC / CCS		7*0.16
Dielectric	Solid PE		1.52
Shield	TC / BC/ CCA Braid		---
Jacket	PVC		2.80

Electrical Characteristics		Attenuation @20ºC (dB/M)
Impedance(Ω)	50	@400MHz	0.62
Velocity of Propagation(%)	66	@600MHz	0.72
Return Loss(dB)	≥20	@860MHz	0.9
VSWR(dB)	≤1.2	@1000MHz	1.0
Shielding Effectiveness(dB)	≥85	@1575MHz	1.20
Operating Temperature(ºC)	-30 to +70	-----	------

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
