50 Ohm RF Coaxial Cable (10D-FB)

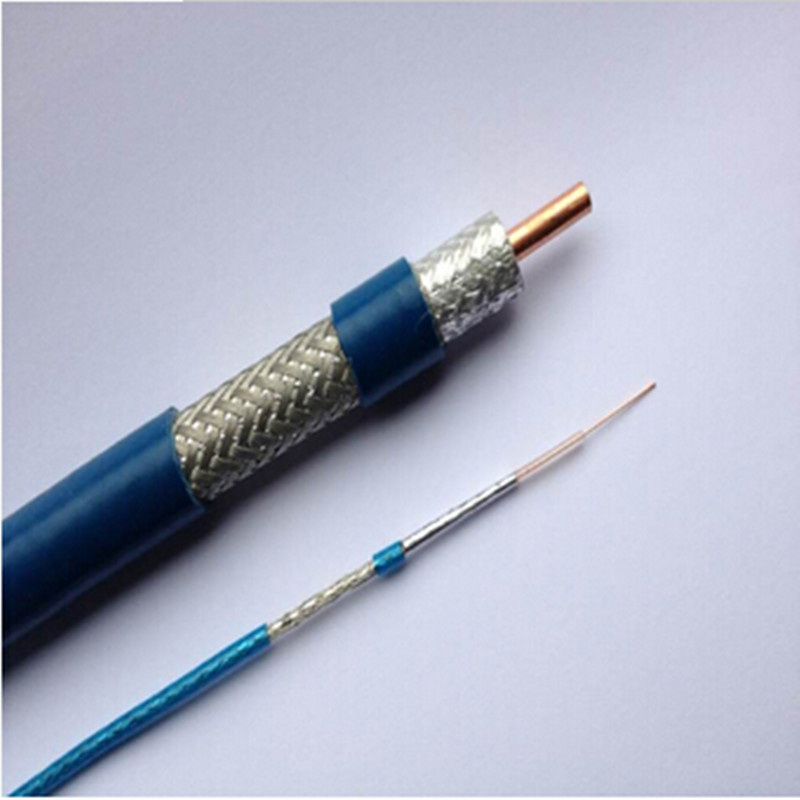

Name: 50 Ohm RF Coaxial Cable (10D-FB)
Brand: all-electronics-online.com
SKU: 739706145
Availability: InStock
Rating: 5 (147 reviews)

Price:	US $ 0.5-4.0/Meter
Trade Terms:	FOB,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	10D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/CCA
Insulation:	Foam PE
Shield:	Double Shield
Jacket:	PVC
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial

Product Description

50 Ohm JIS Cable RF Coaxial cable 10D-FB
This 10D-FB coaxial cable has good attenuation, return loss, shielding effectiveness, usually fixed with
connectors such as N type, BNC, TNC, SMA and etc. This 10D-FB cable and its assemblies works very well
with cellphone signal boosters, repeaters and have already been widely used to DAS,radio transmission,base
radio antenna station and other communication systems.

Features:

1).50 Ohm data signal transmission;
2).The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
3).Excellent performance in high frequency,VSWR stability;
4).Similar to the LMR500 coaxial cable;
5).RoHS compliant;

JIS Cable 10D-FB
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper / Copper Clad Aluminum		3.5
Dielectric	Foam PE		10.0
First Shield	Bonded Aluminum Foil		10.2
Second Shield	Tinned Copper / AL-Mg Wire Braid		10.8
Jacket	PVC/PE/LSZH		13.0

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@400MHz	6.8
Velocity of Propagation(%)	80	@800MHz	10.2
Return Loss(dB)	≥18	@1200MHz	13.2
Capacitance	78.4	@1800MHz	16.8
Shielding Effectiveness(dB)	≥90	@2000MHz	18.2
Operating Temperature(ºC)	-30 to +70	@2500MHz	21.0

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
