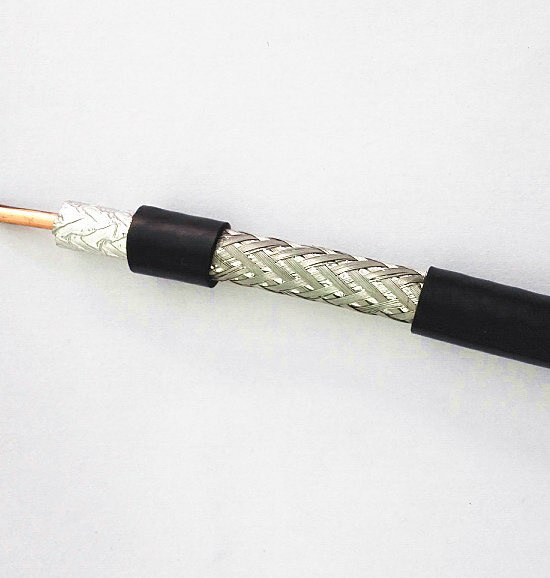

50 Ohm RF Coaxial Cable (7D-FB)

Name: 50 Ohm RF Coaxial Cable (7D-FB)
Brand: all-electronics-online.com
SKU: 739705795
Availability: InStock
Rating: 4.9 (139 reviews)

Price:	US $ 0.5-1.2/Meter
Trade Terms:	FOB,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	7D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conducto:	Bc / CCA
Insulation:	Fpe
Shield:	Tc
Jacket:	PVC/PE
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial
Model:	7D-Fb
Brand:	Otto

Product Description

50 Ohm RF Coaxial Cable 7D-FB
This 50 Ohm 7D-FB coaxial cable can be fixed with various connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.
All our products are RoHS compliant

RF Coaxial Cable 7D-FB
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper / Copper Clad Aluminum		2.6
Dielectric	Foam PE		7.3
First Shield	Bonded Aluminum Foil		7.40
Shield	Tinned Copper / AL-Mg Wire Braid		8.0
Jacket	PVC / PE / LSZH		9.80

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@1200MHz	16.8
Velocity of Propagation(%)	66	@1500MHz	19.2
Return Loss(dB)	≥20	@1800MHz	21.4
VSWR(dB)	≤1.3	@2000MHz	23.2
Shielding Effectiveness(dB)	≥90	@2500MHz	25.6
Operating Temperature(ºC)	-25 to +70	@3000MHz	29.5

Remarks:
1).Cable jacket color can be made as per customer's requirements.
2).Lead time: Within 2 wees.
3).Cable assemblies are available.

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
