50 Ohm RF Coaxial Cable (8D-FB)

Name: 50 Ohm RF Coaxial Cable (8D-FB)
Brand: all-electronics-online.com
SKU: 619692722
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 0.7-2.0/Meter
Trade Terms:	FOB,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	8D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/ CCA
Insulation:	Foam PE
Shield:	Double Shield
Impedance:	50ohm
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial
Model:	Coaxial
Brand:	Otto

Product Description

RF Coaxial cable 8D-FB for Antennas

This 50 Ohm 8D-FB coaxial cables can be fixed with various connectors,such as N,BNC,TNC connectors.
This 8D-FB cable and its assemblies works very well with cellphone signal boosters, repeaters and have already been widely applied to DAS,CDMA,GSM radio transmission,base radio antenna station and other communication systems.

Features:

1).50 Ohm data signal transmission;
2).The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
3).Excellent performance in high frequency,VSWR stability;
4).Similar to the LMR400 coaxial cable;
5).Custom cable color , winding and connector, meet your different requirements;
6).REACH & RoHS compliant;

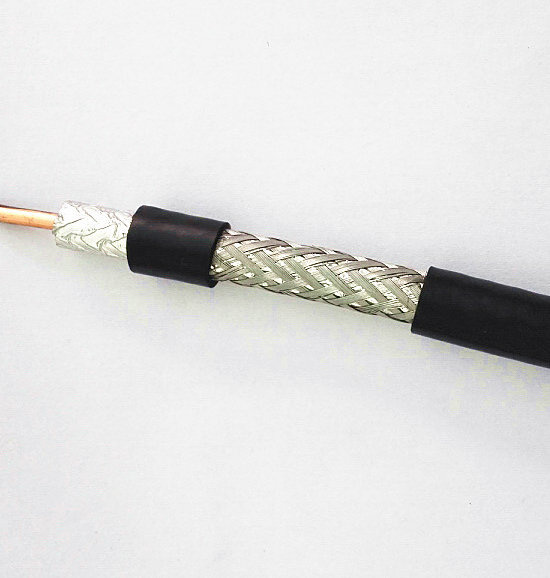

RF Coaxial cable 8D-FB
Construction
Item	Material		Diameter(mm)

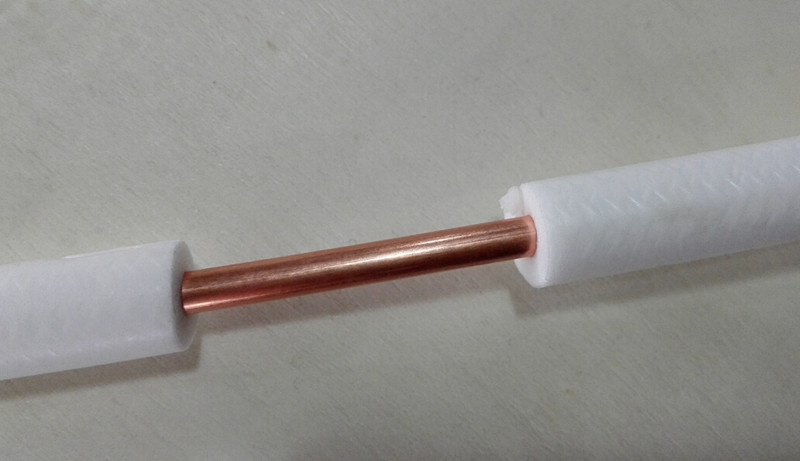

Inner Conductor	Bare Copper / Copper Clad Aluminum		2.8
Dielectric	Foam PE		7.8
First Shield	Bonded Aluminum Foil		8.0
Second Shield	Tinned Copper / Al-Mg Wire Braid		8.7
Jacket	PVC/ PE/ LSZH		10.6

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@1200MHz	17.4
Velocity of Propagation(%)	82	@1500MHz	19.8
Return Loss(dB)	≥20	@1800MHz	22.1
VSWR(dB)	≤1.2	@2000MHz	25.4
Shielding Effectiveness(dB)	≥80	@2200MHz	25.9
Operating Temperature(ºC)	-30 to +70	@2200MHz	27.6

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
