50 Ohm RF Coaxial Cable (LMR100)

Name: 50 Ohm RF Coaxial Cable (LMR100)
Brand: all-electronics-online.com
SKU: 619755972
Availability: InStock
Rating: 4.4 (63 reviews)

Price:	US $ 0.01-1.2/Meter
Trade Terms:	FOB,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/CCS
Insulation:	Foam PE
Shield:	Al Foil+ Tc Shield
Jacket:	PVC/PE/Lszh
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Bc/CCS
Cover Material:	PVC/Lszh
Type:	Coaxial
Wire Core Material:	Bc/CCS

Product Description

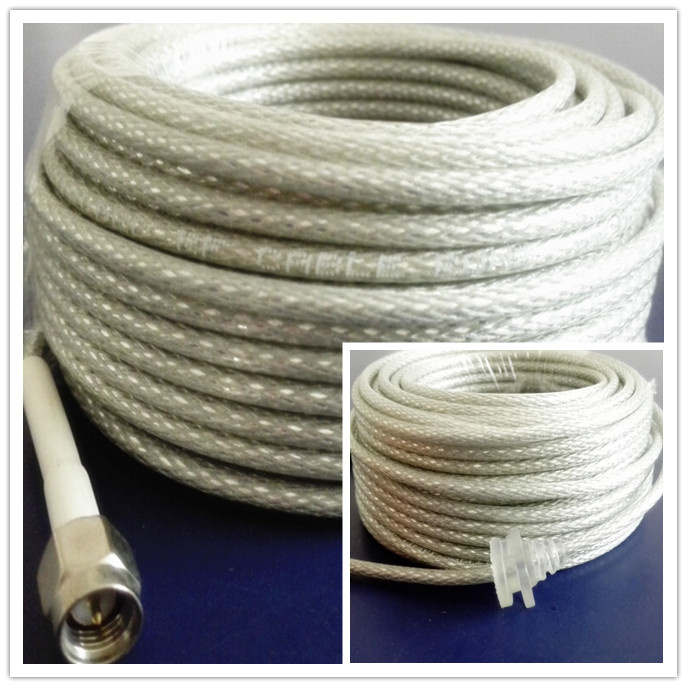

50 Ohm RF Coaxial CableLMR100

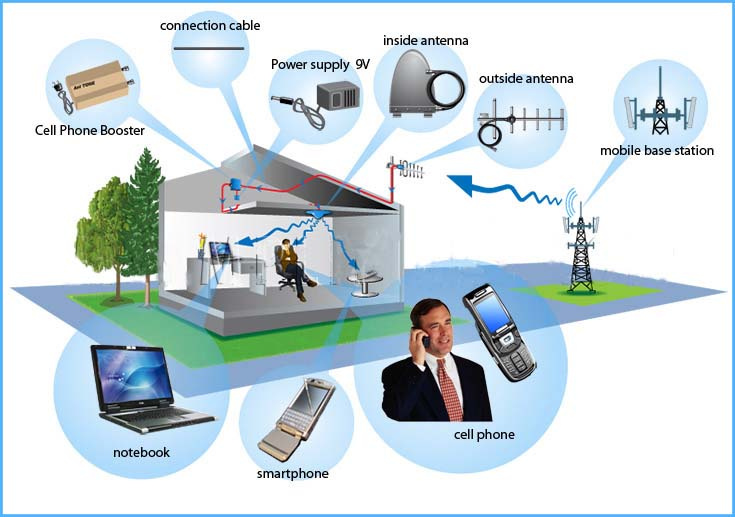

This 50 Ohm LMR100 series coaxial cables can be fixed with various connectors,such as SMA,N,BNC,TNC connectors.Its assemblies works very well with cellphone signal boosters, repeaters.
These versatile cable assemblies with various lengths have been widely applied to CDMA,DAS,GSM radio transmission,base radio antenna station and other communication systems.

Coaxial Cable LMR100

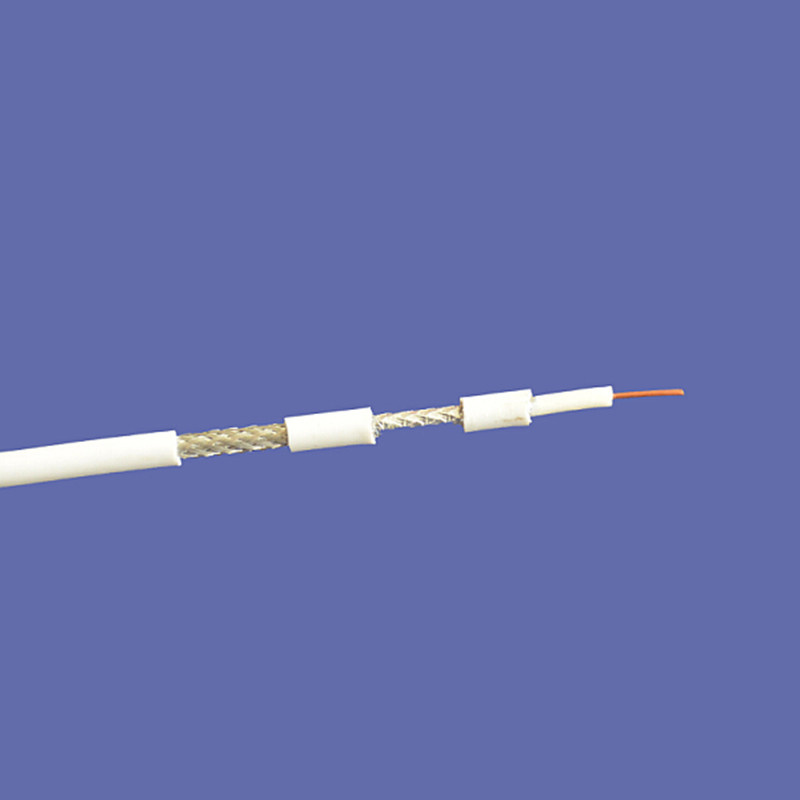

Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper / Copper Clad Steel		0.46
Dielectric	Foam PE		1.52
First Shield	Bonded Aluminum Foil		1.65
Second Shield	Tinned Copper		2.11
Jacket	PVC		2.79

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@450MHz	51.9
Velocity of Propagation(%)	66	@900MHz	74.9
Return Loss(dB)	≥20	@1500MHz	98.7
Capacitance	101	@1800MHz	109.0
Shielding Effectiveness(dB)	≥90	@2000MHz	115.5
Operating Temperature(ºC)	-30 to +70	@2500MHz	130.6

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
