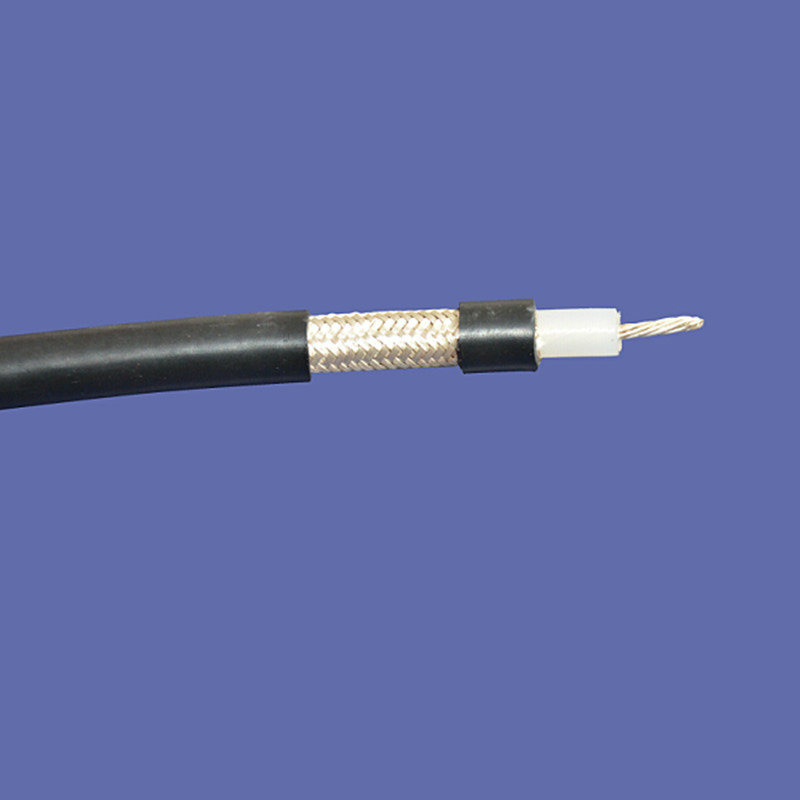

50 Ohm Rg Coaxial Cable (RG214)

Name: 50 Ohm Rg Coaxial Cable (RG214)
Brand: all-electronics-online.com
SKU: 739848935
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	US $ 1-3/Meter
Trade Terms:	FOB,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG214
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
50ohm Rg Coaxial Cable:	Rg214
Inner Conductor:	Tc/Spc
Insulation:	Solid PE
Shield:	Spc Braid
Jacket:	PVC
Application:	RF Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Tc/Spc
Type:	Coaxial
Wire Core Material:	Tc/Spc

Product Description

50 Ohm RG Coaxial Cable RG214

This 50 Ohm RG214 coaxial cable has good attenuation, return loss, shielding effectiveness, usually fixed with connectors such as N type, BNC, TNC, SMA and etc. RG214 cable and its assemblies works
very well with cellphone signal boosters, repeaters and have already been widely used to DAS,radio transmission,base radio antenna station and other communication systems.

Features:

1).50 Ohm data signal transmission;
2).The inner conductor is stranded;
3).The insulation is solid PE;
4).The shield is double braids;
5).It has good flexibility;
6).Common size cable can be easily terminated;
7).Be in conformity with the European ROHS standard;

Coaxial Cable RG214
Construction
Item	Material		Diameter(mm)
Inner Conductor	Silver Plated Copper / Tinned Copper		7*0.75
Dielectric	Solid PE		7.24
First Shield	Silver Plated Copper Braid		7.90
Second Shield	Silver Plated Copper Braid		8.40
Jacket	PVC/TPE/TPU		10.80

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@100MHz	6.8
Velocity of Propagation(%)	66	@400MHz	14.5
Return Loss(dB)	≥20	@1000MHz	25.0
Capacitance	101	@3000MHz	50.0
Shielding Effectiveness(dB)	≥90	-----	-----
Operating Temperature(ºC)	-30 to +70	-----	-----

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
