50 Ohm Rg Coaxial Cable (RG8)

Name: 50 Ohm Rg Coaxial Cable (RG8)
Brand: all-electronics-online.com
SKU: 749645605
Availability: InStock
Rating: 4.5 (105 reviews)

Price:	US $ 0.2-1.5/Meter
Trade Terms:	FOB,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/CCA
Insulation:	Foam PE
Shield:	Double Shield
Jacket:	PVC/PE/Lszh
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial

Product Description

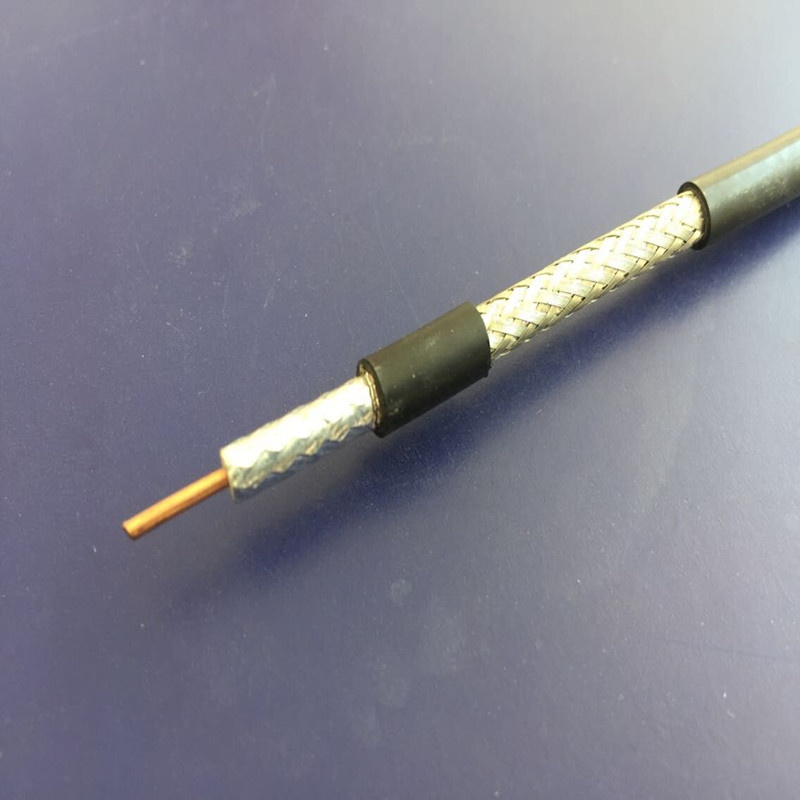

50 Ohm RG Coaxial Cable RG8

This 50 Ohm RG8 coaxial cable and its assemblies usually fixed with connectors such as N type, BNC, TNC, SMA and etc.has good attenuation, return loss, shielding effectiveness,

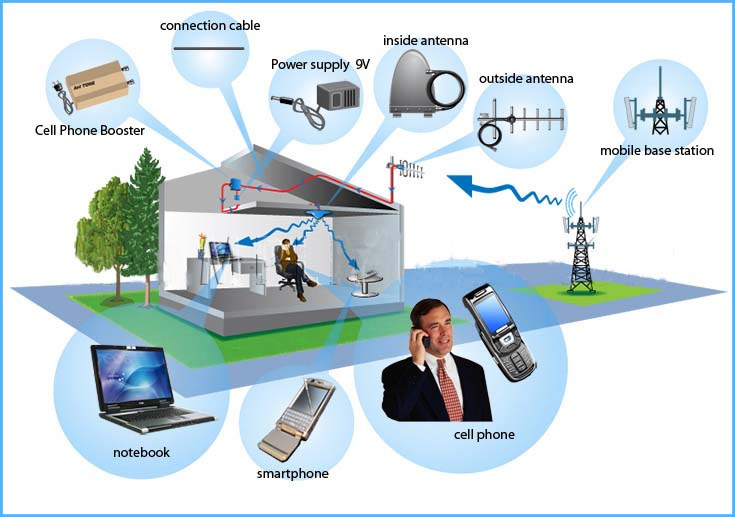

RG8 cable and its assemblies works very well with cellphone signal boosters, repeaters and have
already been widely used to DAS,radio transmission,base radio antenna station and other communication systems.

Coaxial Cable RG8
Construction
Item	Material		Diameter(mm)

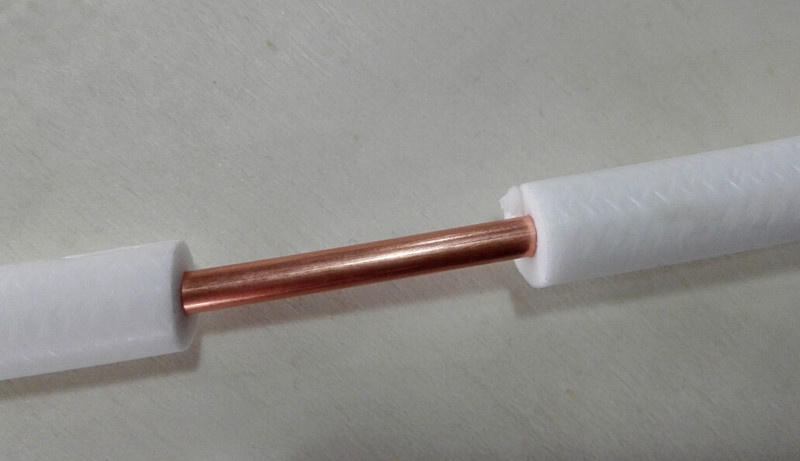

Inner Conductor	Bare Copper / Copper Clad Aluminum		2.74
Dielectric	Foam PE		7.24
First Shield	Bonded Aluminum Foil		7.39
Second Shield	Tinned Copper / AL-Mg Wire Braid		8.13
Jacket	PVC		10.29

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@450MHz	8.9
Velocity of Propagation(%)	85	@900MHz	12.8
Return Loss(dB)	≥18	@1500MHz	16.8
Capacitance	78.4	@1800MHz	18.6
Shielding Effectiveness(dB)	≥90	@2000MHz	19.6
Operating Temperature(ºC)	-30 to +70	@2500MHz	22.2

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
