50 Ohm Rg179/Rg178 Coaxial Cable for CCTV System with ISO Ce

Prod Model:	DSC-RG179/178
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
50 Ohm Coaxial Cable:	Rg179
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	50 Ohm Rg179 Coaxial Cable
Model:	50 Ohm Rg179 Coaxial Cable
Brand:	50 Ohm Rg179 Coaxial Cable

Product Description

50 Ohm Rg179 Coaxial Cable for CCTV System with ISO CE


RG179 Coaxial Cable


RG179 Coaxial Cable Construction

	Material	Diameter(mm)
Inner Conductor Dielectric Shield Jacket	Silver Plated Copper Clad Steel PTFE/FEP 95% Silver Plated Copper Braid FEP	7/0.10 1.60 2.06 2.54

Electrical Characteristics

Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Conductor DCR (Ohm/km) Outer Shield DCR (Ohm/km) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Operating Temperature(0C)

64.0 75.0 70.0 800.5 27.9 3000.0 1200.0 -55 to +200

Attenuation [@68oF (20oC)]

Frequency(MHz)	Max Attenuation (dB/100m)
100 200 400 700 900 1000	32.8 41.0 52.5 64.6 73.2 78.7

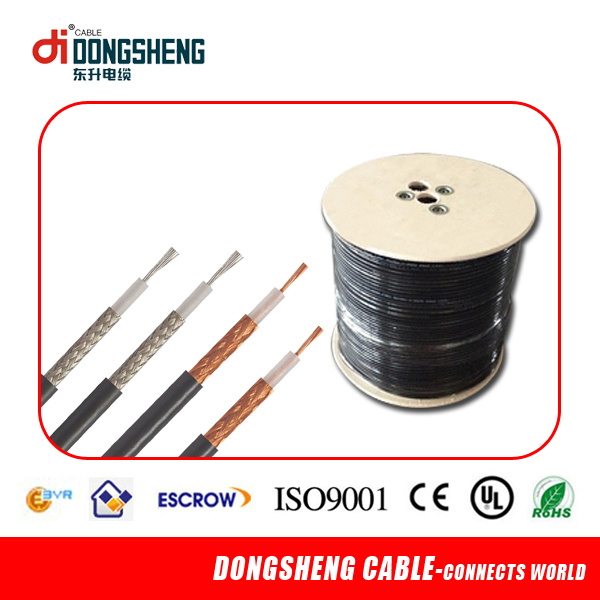

RG179 Coaxial Cable Products Photos and Package


RG6 Coaxial Cable Packaging & Shipping
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request

Other Cables:
1) Lan  Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
