| Prod Model: |
LMR195 LMR200 LMAR300 LMR400 LMR600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Conductor: |
Cu/CCS/CCA |
| Inner Conductor Od: |
0.94 Mm |
| Dielectric: |
2.79mm Foam PE |
| Shielding 1: |
Al Foil Pet/Bonded |
| Shielding 2: |
Tc Wire |
| Shielding Coverage: |
88%-98% |
| Jacket Of LMR195: |
4.95mm PVC/PE |
| Drop Cable LMR195: |
LMR195 Coaxial Cable |
| Coaxial Cable LMR195: |
CATV LMR195 |
| Application: |
RF Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Brand: |
Hf/OEM |
| Type: |
Coaxial |
Product Description

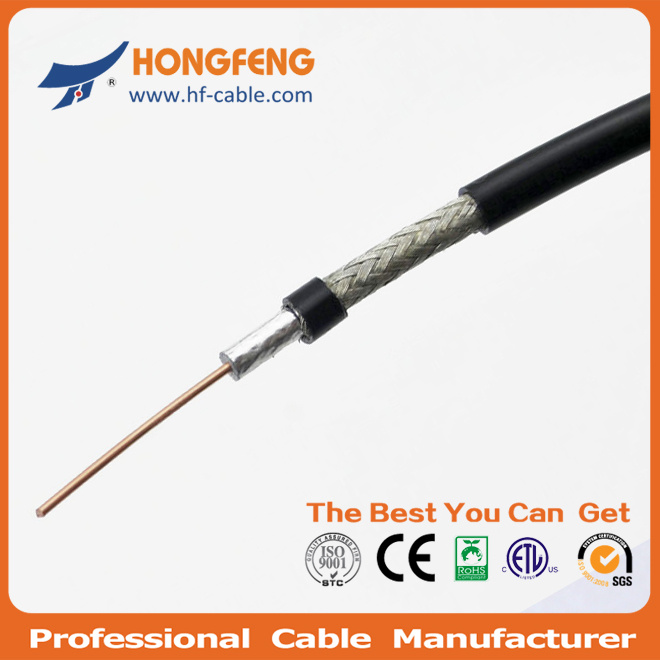

lmr195 for telecommunication cable manufacturer
0.94BC/CCS+2.79Foam PE+2.95mm Bonded Al Foil+3.93mm TC/CCA/CCS/Al-Mg Braiding+4.95 PE
1. LMR series 50 Ohm RF cable Applications:
Jumper assemblies in wireless communications systems
Short antenna feeder runs
Coaxial Cable may be used in many applications
2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
3. Performance:
| Electrical Characteristics |
| Nominal Impedance(Ω) | 50±2 |
| Nominal Capacitance(pF/m) | 83.30 |
| Velocity of Propagation(%) | 80 |
| Spark Test(VRMS) | 3000 |
| Min MHz(30-3000MHz) | 15dB |
Attenuation |
Frequency(MHz) | Maximum(dB/100m) | Frequency(MHz) | Maximum(dB/100m) |
| 50 | 8.4 | 1500 | 47.7 |
| 150 | 14.6 | 1800 | 52.5 |
| 220 | 17.7 | 2000 | 55.4 |
| 450 | 25.5 | 2500 | 62.4 |
| 900 | 36.5 | 5800 | 98.1 |
Main products:
1) RG series Coaxial Cable: Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: Lan Cable CAT3, Lan Cable CAT5, Lan Cable CAT5e, Lan Cable CAT6, Lan Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+lan cable.
Q/A:
Q1: Are you a trading company or manufacture?
A1: HF cable is a professional manufacture, not a trading company, Thus, we can control your order from the first begining to the last.
Q2: What is your delivery time?
A2: Normally, our delivery time is 15-25 days after PO confirmation, but every inquiry will be based on the quantity.
Q3: What is your MOQ?
A3: Usally, the MOQ of our general coaxial cable product is 15-20M, but every inquiry will be considered individually.
Q4: What is your general payment term?
A4: Usally we require advanced payment, and the balance before shipment, but every inquiry will be quoted taking client, orders and other factors into consideration
Q5: What is your commerial item?
A5: Usually we adopt FOB Ningbo/Shanghai, CIF, CFR and others.
Q6: What is your main packing pattern?
A6: For inner packing: Wooden reel, plastic reel, paper reel, shrink wrap:
For outer packing: Carton box, pull-out box and pallet
Other packing methods are available after confirmation with clients
Q7: Can you produce the specfic cable strictly according to clients' requirement
A7: Yes, we can. We have talented technical team and production team.
Contact:
Mr. Leo
Hangzhou Hongfeng Cable Co., Ltd.
www.hf-cable.com
www.hf-cable.com.cn
Tel: +86-571-58615552
Fax: +86-571-63816227
Mb: +86-18268847560
Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.
We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.
We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
