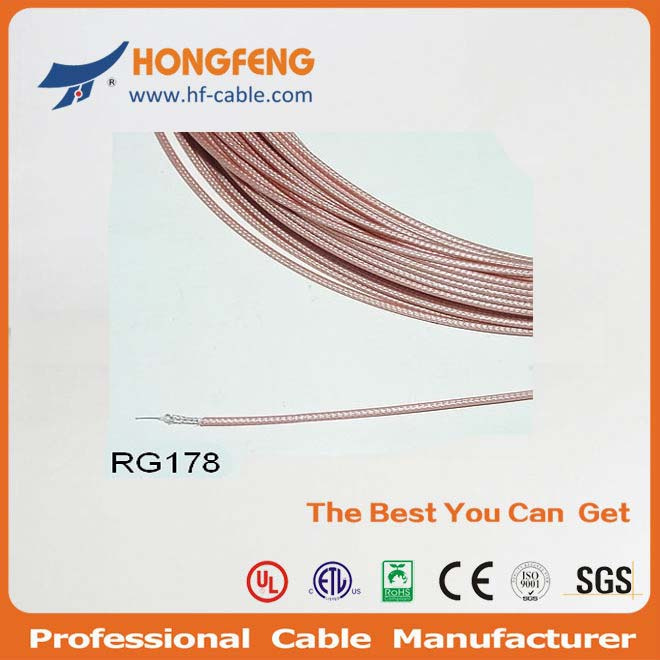

50 Ohms Mil-C-17 Coaxial Cable Rg178

Prod Model:	RG178
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductor 1:	Tc/Spc 7*0.102 Mm
Dielectric:	0.86 Mm PE/PTFE Insulation
Shielding:	96*0.10mm Cu/Tc/ Spc Wire
Outer Conductor:	1.30mm
Jacket:	1.83 Mm FEP/TPE
Application:	Long Distance Symmetric Cable
Certification:	ETL
Conductor Material:	Tc/Spc
Cover Material:	FEP
Type:	Coaxial

Product Description

Our services:
1, Good quality guarantee
2, CE. RoHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time



1. Construction:

7*0.102mm TC (Tinned copper) + 0.86mm PTFE + 1.30mm (96*0.10*90%) TC braiding + 1.83mm FEP

2. Electrical Characteristics:

Impedance(Ohm): 50
Capacitance(pF/m): 96
Velocity(%): 70
Bending Radius(mm): 13
Max. Oper. Voltage(VMS): 1200
Max. Oper. Frequency (MHz): 3000
Operating Temp.: -55- +200

Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable.

Note: If the specification is not you need, please tell me and I will offer you price according your requirements.

Contact:
Mr. Leo
Tel: +86-18268847560
Fax: +86-571-63816227

Leo
Hangzhou Hongfeng Cable Co., Ltd.
http://www.hf-cable.com
Tel: +86-18268847560
Fax: +86-571-63816227

Attenuation(Typical)
Frequency(MHz)	Attenuation(dB/m)
100	0.453
400	0.912
1000	1.457
3000	2.572
