| Prod Model: |
SLT42BL03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Slt42bl03 |
| Voltage: |
24V |
| No Load Speed: |
5300rpm |
| Rated Torque: |
0.063nm |
| Rated Speed: |
4000rpm |
| Rated Current: |
1.6A |
| Stall Torque: |
0.18nm |
| Weight: |
0.29kg |
| Length: |
43mm |
| Application: |
Medical Equpiments |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brushless |
| Certification: |
CE |
| Brand: |
Slt |
Product Description
Product Description

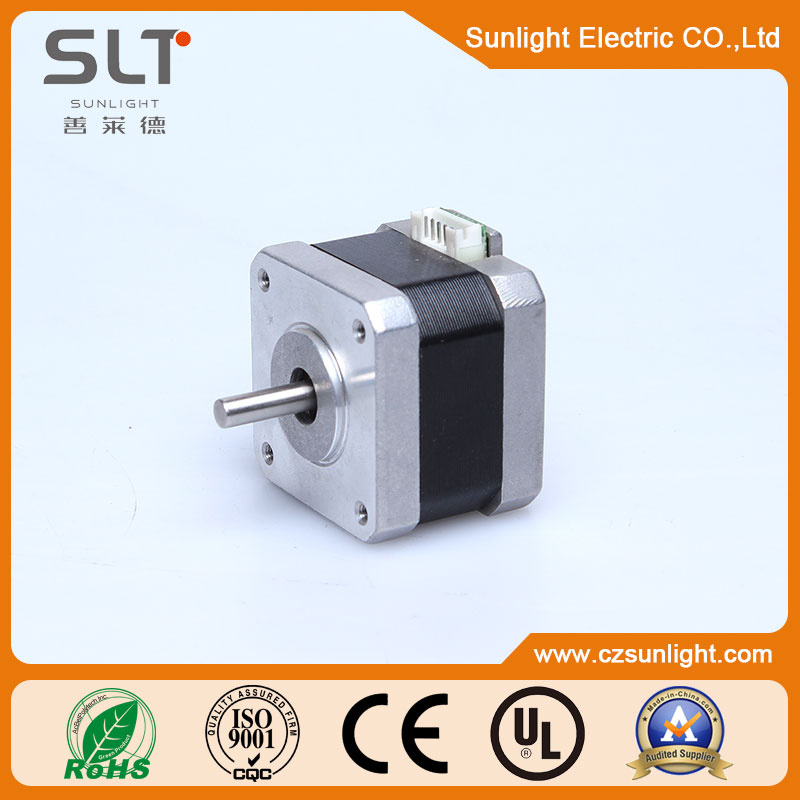

Model:SLT42BL03
Voltage:5000V
No Load Speed:0.185rpm
Rated torque:0.125mNm
Rated Speed:4000rpm
Rated Current:13.4A
Stall torque:0.39mNm
Weight:80.5Kg
Length:60mm
The specification of 5000V DC Brushless Motor for office application | 42BLF-Brushless DC Motor |
| Technique Specification |
| Model | SLT42BLF20 | SLT42BLF40 | SLT42BF60 | SLT42BLF80 |
| Number of poles | | 8 |
| Voltage | V | 24 |
| No load speed | RPM | 5300 | 5400 | 5200 | 5200 |
| Rated torque | N.m | 0.063 | 0.125 | 0.185 | 0.24 |
| Rated Speed | RPM | 4000 | 4000 | 4000 | 4000 |
| Rated power | W | 25 | 50 | 75 | 100 |
| Rated Current | A | 1.6 | 3.2 | 4.7 | 6.5 |
| Peak torque | N,m | 0.18 | 0.37 | 0.54 | 0.72 |
| Back-EMF constant | V/KRPM | 3.3 | 3.23 | 3.38 | 3.36 |
| Weight | Kg | 0.29 | 0.47 | 0.65 | 0.87 |
| Length | mm | 43 | 63 | 93 | 113 |
Company information
Since 1990
Specializing in Axial fan, Radiator Fan, Blower Fan, Motor Fan,DC Motor,Brushless Motor,Hub Motor,Auto Parts(Die casting and plastic parts). We can design the solutions for our clients, or produce the products by your requirements.
Our principle: quality is our life, technical is the basic, be honest and faithful to our partners. At the same time, we pay more attention on team work and improving the staff skills.Customer requirements and the innovation of technology as our guide, try to be the market leader of Motor business.
FAQ
1,What custom modifications are available?
SLT can provide motor with customized shafts, mounted encoders, various controls
(integral, hall only, or sensorless), and alternate magnet materials for power density.
2,What are the advantages of using a brushless motor versus a brush style motor?
No brush noise, efficient, durable, robust, easy to cool
Linear current/torque
Synchronous speed control
Position and Speed Servo (open/closed loop)
Customizable Performance
Extended Life
3,How can I calculate my power needs?
A simple formula can be used to roughly determine what is needed power-wise.
Here's an example:
| Motor Speed: | 3600 RPM |
| Motor Torque: | 340 mNm = 48 inoz = 3 inlb |
| Voltage: | 12VDC |
| Assumed Eff %: | 80 % |
| Power Output: | ( Speed x Torque(inlb) ) / 84.5 | => | (3600 x 3 ) / 84.5 | = | 127 Watts Output |
| Power Input: | Watts Output / Assumed Eff% | => | 127 / 0.8 | = | 159 Watts Input (Required) |
| Current Requirement: | Watts Input / Voltage | => | 159 / 12 | = | 13.2 Amps (Minimum) |
4,What environmental considerations are there?
Typical environmental temps for the motor should be run in a low humidity environment with an ambient temperature
range of -20 C to +50 C. brushless motors do have IP ratings associated to them and limited customization can be
done to increase the IP rating. If severe conditions require IP ratings of IP54 or higher,a customized motor construction
is required to accommodate this need.
5,Are there any noise benefits of a Brushless motor?
Yes, with the elimination of brushes, brushless motors can be regulated to slower operating speeds without sacrificing torque.
Brushless motors can also utilize skewed magnets to reduce the effect of cogging.
Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
Contact
Changzhou sunlight Co., Ltd
Contact Person: Mary Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-13915006892
Website: www.czsunlight.com or www.sunlightmotor.com
Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.
There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.
The main products are DC motor, brushless DC motor, linear actuator and DC fan.
At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.
Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.
We welcome all the global companies to visit our factory and negotiate with us!
Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"
We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.
Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on
The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;
The main linear actuator's series are: ST01, PT01, YT01 and so on;
The main fan's series are: 16inch, 12inch, and so on
So that, If you give us a chance, Sunlight Motor will not let you disappoint.
