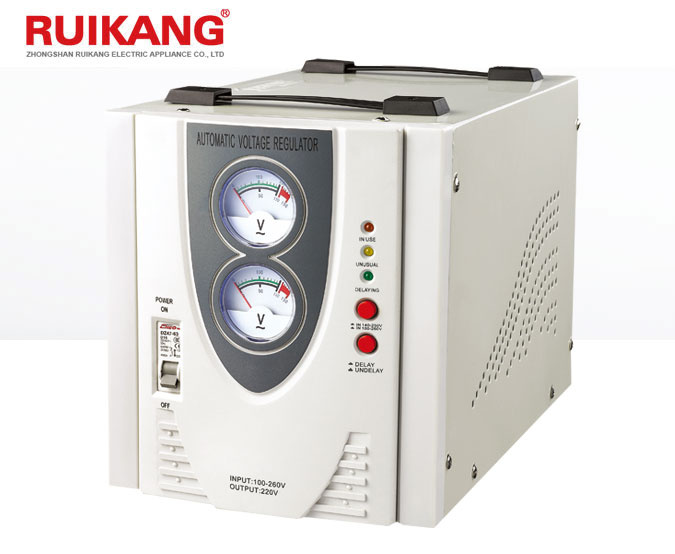

5000va Single Phase Stabilizer with Ei/Toroidal Transformer

Prod Model:	PVR-5000VA
Capacity:	80% When Input Voltage Reach 190V
Certificate:	ISO 9001 and Ce
OEM:	Allowed
Current Type:	AC
Phase:	Single Phase
Frequency:	Low Frequency
Usage:	Household Voltage Regulator
Application Range:	Home Appliance
Brand:	Ruikang

Product Description

Product description:

Relay type
Manual and automatic type
Meter display: input and output voltage
EI transformer/toroidal transformer
LED indicators: in use, unusual and delaying
High voltage/low voltage protection
High temperature (customized option)
Output precision: ±10%
Color: customized design
Input: 140-260V AC
Output: 220V AC/110V AC
Frequencies: 50/60Hz
Delaying time: 3-6S/180S
Power: 500VA/1000VA/1500VA/2000VA/3000VA/5000A

Specification:


Model		500VA	1,000A	1,500VA	2,000VA	3,000VA	5,000VA
Capacity		80%,when input voltage is 190V
Technology		Alumium coil,EI transformer /Toroidal transformer,relay type
Phase		Single phase (one transformer controlled)
Double display (Meter or digital)		Input voltage & Output voltage
Input	Voltage  Range	160-260V (3relaies)	100-260V (5relaies)	100-260V (5relaies)	100-260V (5relaies)	140-260v (5relaies)	140-260v (5relaies)
	Frequency	50/60Hz
Output	Voltage	AC 220±10%V/AC110±15%V
Protection	High  voltage protection	√	√	√	√	√	√
	Overload protection		√	√	√	√	√
	Short Circuit protection	√ (with fuse)	√ (with fuse)	√ (with fuse)	√ (with fuse)	√ (with fuse breaker)	√ (with fuse breaker)
Enviromental	Operating Temperature	0-40°C
	Stortage Temperature	15°C-45°C
	Operating Relative Humitity	10%RH-102%RH,non-condensing
Physical	Pcs/Carton	8	4	4	4	1	1
	Packing Size(mm)	500*300*340	692*295*205	692*295*205	692*295*205	425*268*320	425*268*320
	G.W(KGS)	22	20	22	25	12	17
	N.W(KGS)	19	18	20	23	11	16

Applications:

Voltage regulator is used to automatically adjust the output voltage of the power supply circuit or power supply equipment
It can be widely used in places require stable power supply voltage, such as industrial and mining enterprise, oil, railways, construction sites, schools, hospitals, telecommunications, hotels, research and other departments of computer, precision machine tools, computer tomography (CT), precision instruments, test equipment, elevator lighting, imported equipment and production lines and others.


Factory history:

Established in year 1993,with 20years of experience,we have built up the professional teams of R&D,technology,production,supply and marketing with our target of buiding a centennial enterprise and global brand.
We are specialized in all kinds of power supply products contain automatic voltage regulator/stabilizer,UPS, inverter,step up&down transformer and battery charger with full set of auto production equipment and 300 workers.
We also insist on manufacturing electronic component like hardware,circuit board,coil,consent,plug and socket by ourselves to ensure high quality and competitive price for global valued customers.


Packing:

Double packing:color box and outer carton
5,00VA;8pcs/ctn
1,000VA-2,000VA:4pcs/ctn
3,000VA and 5,000VA:1pc/ctn
