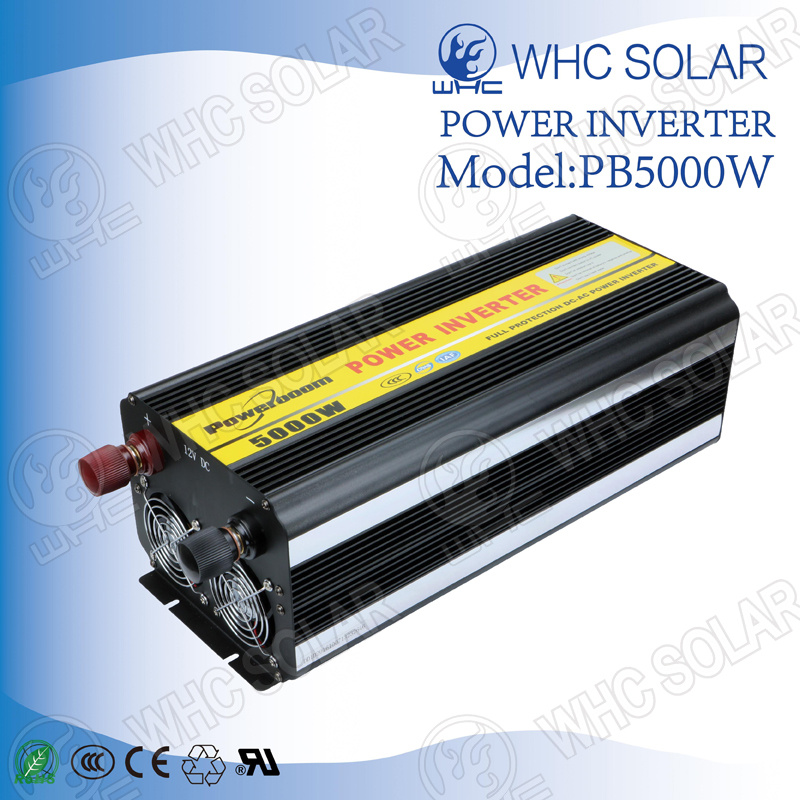

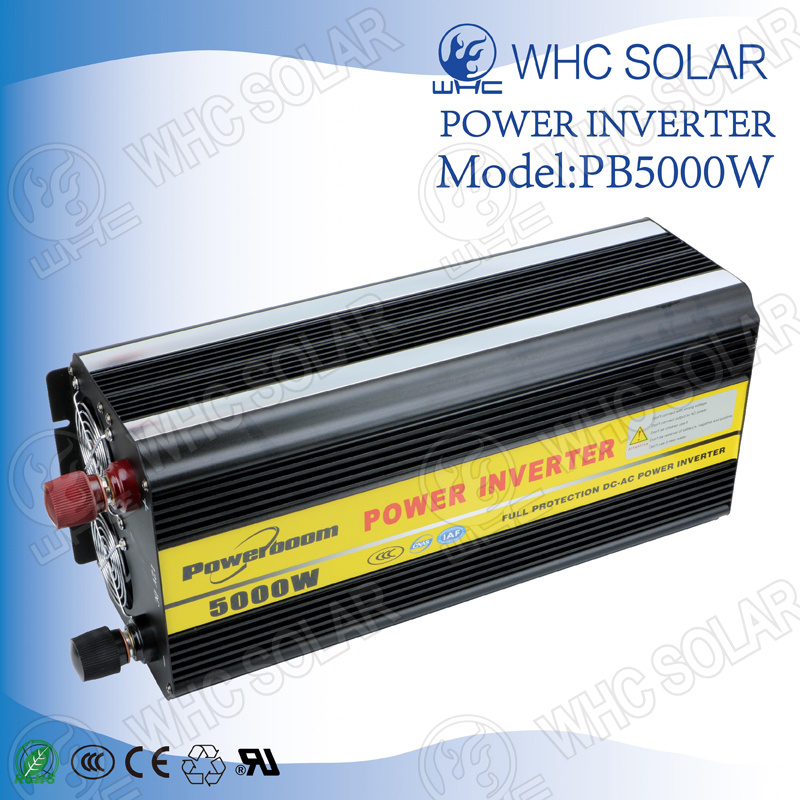

5000W DC to AC Intelligent High-Power Inverter
| Price: |
US $ 119.2-126.3/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
PB5000P |
| Net Weight: |
4.8 Kg |
| Gross Weight: |
6 Kg |
| Packing Size: |
490*245*205 mm |
| AC Voltage: |
220V |
Product Description
5000W DC to AC Intelligent High-Power InverterProduct Features• Universal port AC output socket, the use of electrical appliances more diverse.
• Additional USB port for easy digital product connection charging.
• Waveforms are sine waves that facilitate the use of most electrical products.
The new aluminum alloy shell, durable, beautiful high-grade generous.
• Advanced patch inverter circuit design.
• Easy to operate, safe and reliable, quiet operation without noise, maintenance-free.
• Provide cigarette lighter cable.
• With overload, overvoltage, under voltage, over temperature, short circuit intelligent security protection.
• Complete protection of the inverter and equipment without damage to the car.
• Low voltage protection for the battery, no damage.
Product Parameters| Model | PB-5000P |
| Output | Rated power(Typ.) | 5000W | 5000W | 5000W |
| AC Voltage | 220V | 220V | 220V |
| Frequency | 50HZ±0.5HZ | 50HZ±0.5HZ | 50HZ±0.5HZ |
| Waveform | Rated voltage, corrected wave, (THD<3%) | Rated voltage, corrected wave, (THD<3%) | Rated voltage, corrected wave, (THD<3%) |
| Input | Battery Voltage | 12V | 24V | 48V |
| Voltage Range(Typ.) | 10V-15V | 20V-30V | 40V-60V |
| DC Current(Typ.) | 277A | 138A | 69A |
| Load Loss | ≤0.3A | ≤0.2A | ≤0.15A |
| Shutdown mode current | ≤20mA | ≤20mA | ≤20mA |
| Efficiency(Typ.) | ≥90% | ≥90% | ≥90% |
| Battery Type | Lead Acid Battery | Lead Acid Battery | Lead Acid Battery |
| Battery Input Protection | Insurance film | 35A*12 | 35A*6 | 35A*6 |
| Battery Low Voltage Alarm | 10.5V±0.5V | 20V±1V | 42V±2V |
| Battery Low Voltage Protection | 9.5V±0.5V | 19V±1V | 40V±2V |
| Battery Over Voltage Protaction | 15.5V±0.5V | 30V±1V | 60V±2V |
| Battery reverse Protection | Through internal insured | Through internal insured | Through internal insured |
| Output Temperature | Over Temperature | 75ºC±5ºC | 75ºC±5ºC | 75ºC±5ºC |
| ,Bright red light, with alarm sound, no output, | ,Bright red light, with alarm sound, no output, | ,Bright red light, with alarm sound, no output, |
| Output Short Circuit | Traffic lights alternately flash,
Cancel the short circuit automatically return to normal, | ,Traffic lights alternately flash,
Cancel the short circuit automatically return to normal | ,Traffic lights alternately flash,
Cancel the short circuit automatically return to normal |
| Over Load(Typ.) | ≥3000W | ≥3000W | ≥3000W |
,Bright red light, self-locking,
Reduce load restart to resume normal transmission, | ,Bright red light, self-locking,
Reduce load restart to resume normal transmission, | ,Bright red light, self-locking,
Reduce load restart to resume normal transmission, |
| USB | Output Voltage | 5V | 5V | |
| Output Current | 2A | 500mA | |
| Environment | Operating Temperature | 0-40ºC@100%Load |
| Operating Humidity | 20-90%RH,No Cold Storage |
| Storage Temperature and Hmidity | -30ºC-+70ºC,10-95%RH |
| Others | Weight | Net:4.8 Kg Gross:6 Kg |
| Size | 454*180*142 mm(L*W*H) |
| Packing | 490*245*205 mm(L*W*H) |
| Remarks | ,25ºC. |
Product Details
Company Information
FAQ1. Q:Are you a factory or trading company?
A:We are a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.
3. Q:Do you have other products design for sale?
A:More products and designs please visit our website: http://www.whcsolar.cc
4. Q:What is your company's payment method?
A:Usually is T/T, Sample orders we recommend Western Union.
5. Q:What is your delivery time?
A:Usually 14-20 days.According to the product and quantity,delivery time will have different.
More Details,Please contact us freely~
WHC SOLAR Technology Co., Ltd. is a collection development, production, and sales of photovoltaic tech enterprises, It's the first one in China dedicated solar home systems research and development, production and sales of photovoltaic enterprises, the company since its inception in 2005 established the quality of priority, the concept of brand management, and the use of simple, easy to maintain, reliable quality as a product design, which won a number of national patent and passed CE, RoHS, ISO9001: 2008 quality management system certification. Our main products include: Solar Power Systems, Solar Panels, Solar Controller, Solar Inverter, Solar Battery, Solar Energy kits etc. WHC SOLAR has advanced production testing equipment and strong R & D team, professional QC team and excellent business sales team. The company currently produces the vast majority of products covered by the requirements of customers on the use of solar home systems, and products in the industry with the most comprehensive and professional characteristics. Sold to: Africa, South America, India, Nepal, Cambodia, Bangladesh, Vietnam, the United States, Japan, Korea, and other countries and regions. WHC SOLAR as committed to providing customers: Reliable products, efficient service, as well as more specialized solutions. We can provide OEM & ODM, and product design and packaging services according to customer needs.
