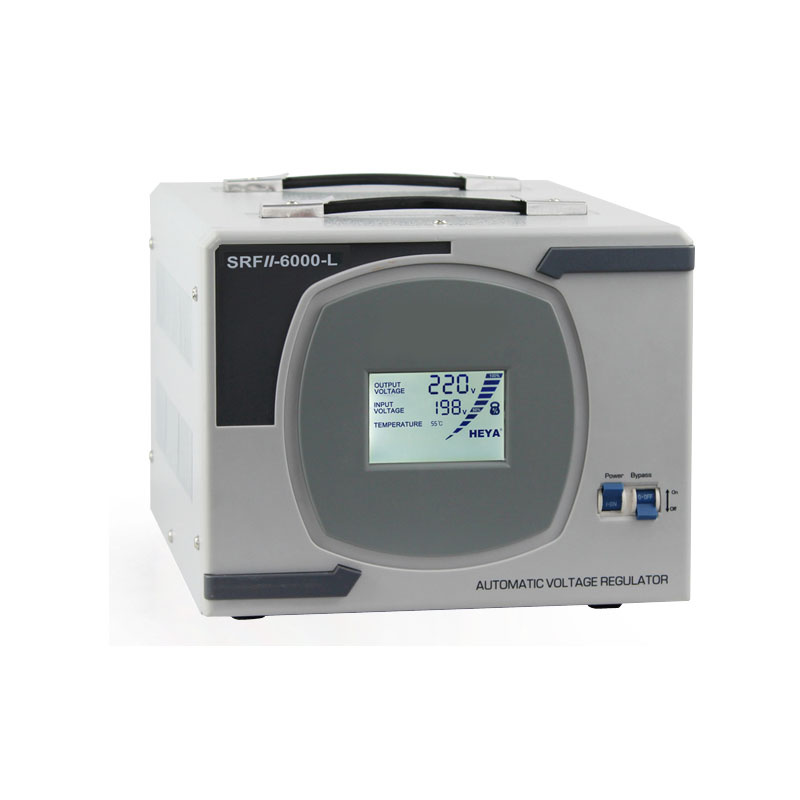

5000W LCD Display Full Automatic AC Voltage Stabilizer Srfii-6000-L

Name: 5000W LCD Display Full Automatic AC Voltage Stabilizer Srfii-6000-L
Brand: all-electronics-online.com
SKU: 836352615
Availability: InStock
Rating: 5 (80 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SRF-6000-L
Input Voltage:	AC110-275V
Output:	220V+-8%
Power:	5000W
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Brand:	Deson

Product Description

Introduction:

SRFII series second generation relay type intelligent LCD display full automatic AC voltage regulator is a brand-new concept product. It is on the basis of years of producing relay type full automatic ac voltage regulator, after improvement, innovation and perfection of design with low energy consumption, over voltage and over current protection,short circuit protection etc. And sets many new technologies such as selective delay, impact resistant, multi function LCD display, energy saving and environmental protection.

Advantage:

•Number of relays 5 +1
•The high output voltage accuracy (3.5%)
•Current protection
•Differentiation and fault indication
•Informative LCD-display
•Modern design
•urge protection up to 300 V
•Microprocessor control
•High speed regulation
•The wide input voltage range
•The multistage defense

Product Parameter :

Model	SRFII-4000-L	SRFII-6000-L	SRFII-9000-L	SRFII-12000-L
Power capacity	3000W	5000W	7000W	10000W
Input voltage	AC110-275V
Output voltage	220V±8%
Phase	Single Phase
Frequency	50-60Hz
Rated current	15A	25A	35A	48A
Type of stabilization	Relay

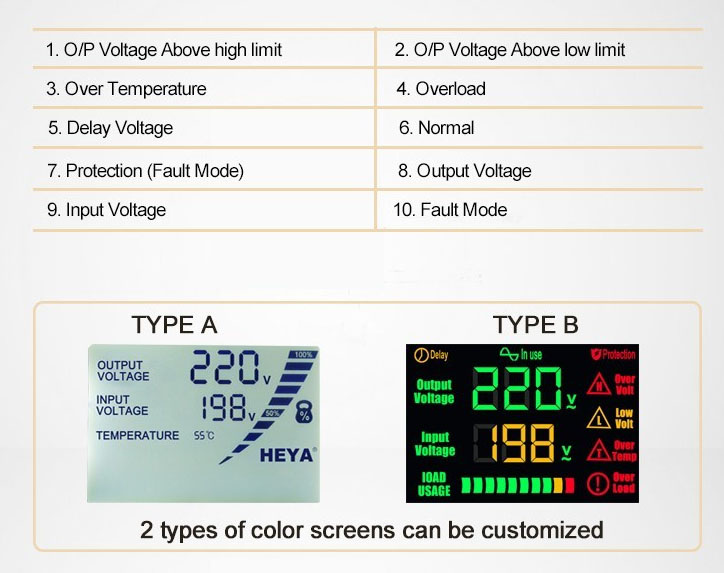

Display	LCD digital display
Protection over voltage	250±2V
Protection lack voltage	180±2V
Mode Bypass	Yes
Efficiency	98%
Type of connection	Terminal block
Degree of protection	IP20
Delay	8 second
Temperature protection	110°C±10°C
Ambient Temperature	-10~+45°C
Relative humidity	80%
Waveform distortion	No additional wave form distortion
Dimension of device(LWH)(mm)	430315275	430315275	510315275	510315275
Weight of device	11Kg	12Kg	17Kg	20Kg
