| Prod Model: |
EP3000 pro |
| Output Wave Form: |
Pure Sine Wave |
| Input Voltage: |
155-265VAC |
| Application: |
Home Application |
| Max Charge Current: |
Max 70AMP |
| Transformer: |
Pure Copper |
| Charge Current Adjustable: |
25%, 50%, 75%, 100% |
| Phase: |
Single |
| Power Source: |
Electric Power |

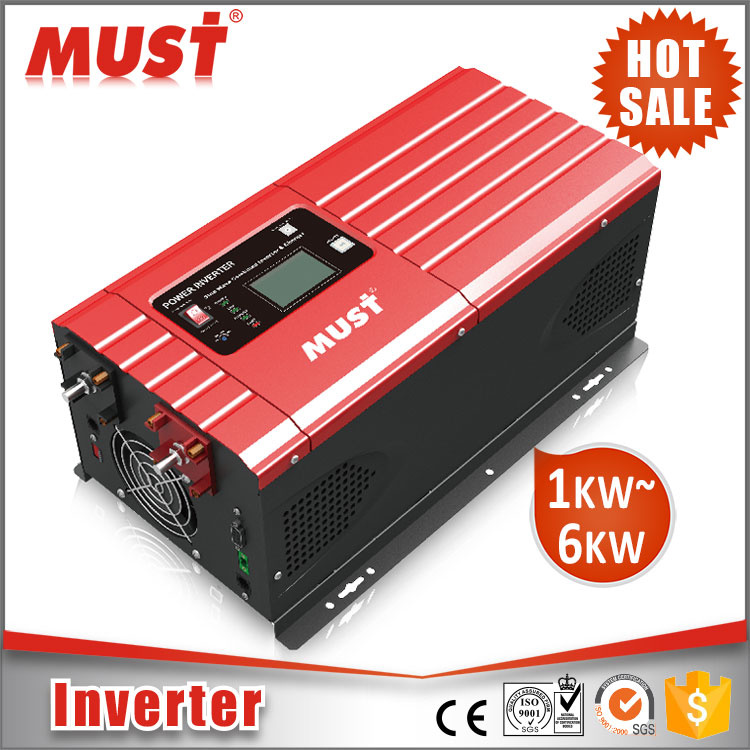

Product Description
Main features:
1.Pure sinewave output,can be used withdifferent domestic appliance like TV, refrogerator ,fan,air conditioner.cooker,mirco-wave oven,etc.
2.Superior performance from CPU control technology.
3.Wide range of input voltage,accruate output,AVR function.
4.Inner-equipped protection for over-load,short-circuit,over-voltage,low-voltage,over-heating,etc.
5.Easy to check with inverter with consice LED indication that can be upgrade to LCD.
6. Generator compatibly and external battery connection achievable.
7.Intelligent battery management with protection against over-charged and over-discharged etc.
Typical Application:
Main for home and office Appliance,TV,refrigerator,fan,air conditioner,induction cooker,computer etc.
| MODEL | EP30-1KW PRO | EP30-1.5KW PRO | EP30-2KW PRO | EP30-3KW PRO | EP30-4KW PRO | EP30-5KW PRO | EP30-6KW PRO |
|---|
| Default Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC |
| INVERTER OUTPUT |
| Reted Power | 1.0KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW |
| Surge Rating (20ms) | 3.0KVA | 4.5KVA | 6.0KVA | 9.0KVA | 12KVA | 15KVA | 18KVA |
| Capable Of Starting Electric Motor | 1HP | 1HP | 1HP | 2HP | 3HP |
| Waveform | Pure sine wave/ same as input (bypass mode) |
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(±10% RMS) | 220V/230V/240VAC(±10% RMS) |
| Output Frequency | 5OHz/60Hz±0.3 Hz |
| Inverter Efficiency(Peak) | >88% |
| Line Mode Efficiency | >95% |
| Power Factor | 1.0 |
| Typical Transfer Time | 10ms(max) 10ms(max) |
| AC INPUT |
| Voltage | 230VAC |
| Selectable Voltage Range | 96~132VAC 155~280VAC(For Personal Computers) |
| Frequency Range | 50Hz/60Hz (Auto sensing) 40~80Hz |
| BATTERY |
| Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, ) |
| Low Battery Alarm | 10.5VDC±0.3V for12VDC mode (*2 for 24VDC, ) |
| Low Battery Cutoff | 10.0VDC±0.3V for12VDC mode (*2 for 24VDC, ) |
| High Voltage Alarm | 16.0VDC±0.3V for12VDC mode (*2 for 24VDC, ) |
| High Battery Voltage Recover | 15.5VDC±0.3V for12VDC mode (*2 for 24VDC, ) |
| Idle Consumption-Search Mode | <25W when power saver on |
| CHARGER |
| Output Voltage | Depends on battery tvpe |
| Charger AC Input Breaker Rrating | 10A | 30A | 30A | 30A | 40A |
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode) |
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 30A | 65A | 35A | 70A | 40A | 75A | 50A |
| BYPASS & PROTECTION |
| Input Voltage Waveform | Sine wave (grid or generator) |
| Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Bypass Breaker Rating | 10A | 30A | 30A | 30A | | 40A |
| Max Bypass Current | 30Amp |
| SOLAR CHARGER |
| Maximum PV Charge Current | 50A |
| DC Voltage | 12V/24V/48 |
| PWM Range @ Operating Voltage | 15~80VDC |
| Maximum PV Array Open Circuit Voltage | 90VDC |
| Maximum Efficiency | >97% |
| Standby Power Consumption | <2W |
| MECHANICAL SPECIFICATIONS |
| Mounting | Wall mount |
| Dimensions (W*H*D) | 426*206*178 mm | 601*206*178 |
| Net Weight (Solar CHG) kg | 16.5 | 17 | 21.1 | 20 | 26 | 24.5 | 24.8 | 38.2 | 35.8 | 45.2 | 45 | 45.2 | 45 |
| Shipping Dimensions(W*H*D) | 570*335*300mm | | 750*335*300mm |
| Shipping Weight (Solar CHG) kg | 19.3 | 20 | 24.1 | 22.8 | 29.1 | 27.5 | 27.5 | 42.3 | 40 | 49.5 | 49.3 | 49.5 | 49.3 |
| OTHER |
| Operation Temperature Range | 0°C to 40°C |
| Storage Temperature | -15°C to 60°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
