5000W Transient Voltage Suppressors 5kp20A/ 5kp20
| Price: |
US $ 0.01/Piece |
| Min Order: |
50000/Piece |
| Pay Type: |
T/T |
| Prod Model: |
5kp20A/ 5kp20 |
| Power Dissipation: |
1500W |
| Breakdown Voltage: |
22.2-27.1 |
| Manufacturing Technology: |
Logic IC |
| Material: |
Compound Semiconductor |
| Type: |
N-type Semiconductor |
| Package: |
DIP(',Dual In-line Package) |
| Model: |
Tvs |
| Batch Number: |
2016 |
| Brand: |
Sy |
Product Description
5000W, rectifier TVS diode 5KP20A/5KP20Transient voltage suppres :
FEATURES :
* Glass Passivated Junction
* Hight Current Capability
* Low Forward voltage Drop
* High Reliability and Low Leakage
* For Surface Mount Application
* Plastic Material - UL Flammability
Classification Rating 94 V-0
* Pb / RoHS Free
Mechanical Data

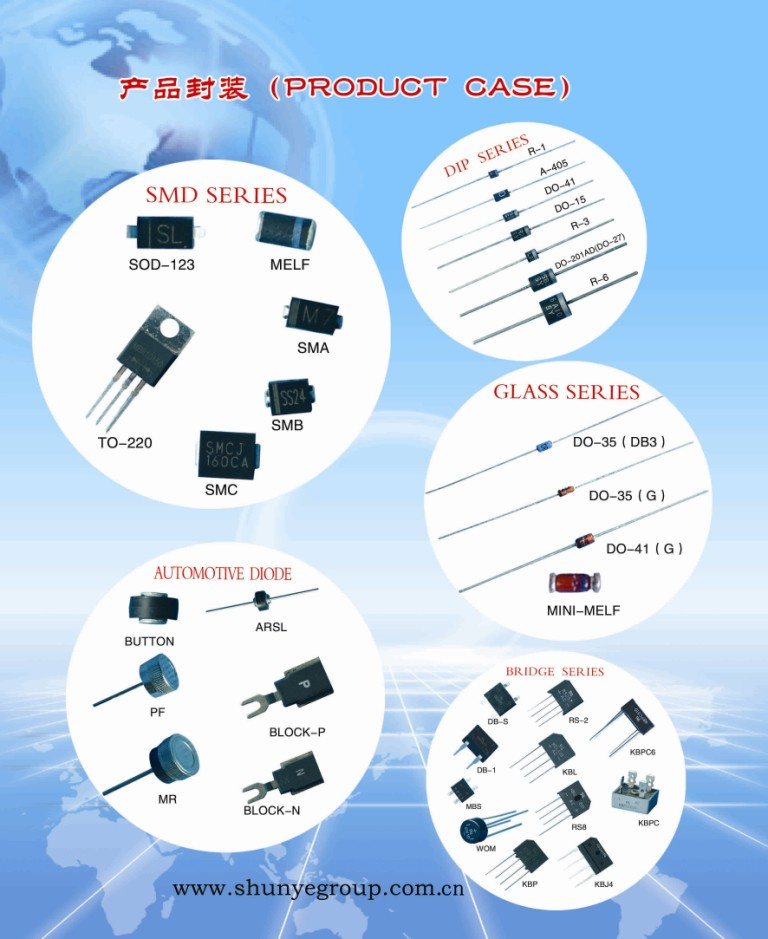

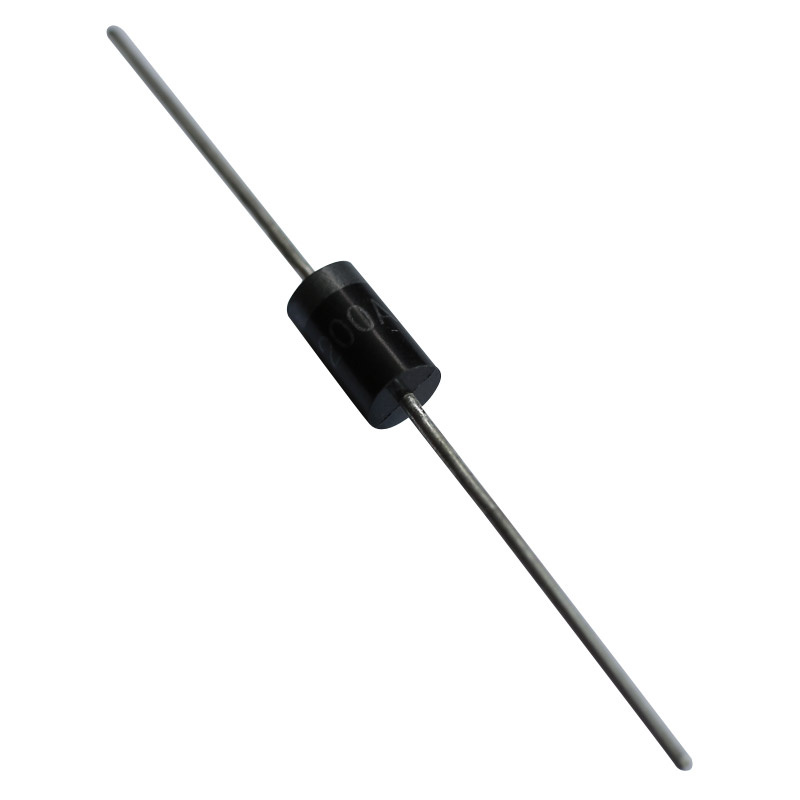

* Case : R-6 Molded plastic over passivated junction.
* Terminals : Solderable per MIL-STD-750, Method 2026
* Polarity : Color band denotes cathode except for bidirectional type.
* Approx Weight : 0.072 ounce/ 2.05 grams.
* Mounting Position : Any Transient voltage range | | | | | | | | | |
| TYPE | Breakdown Voltage | Stand-off
Voltage | Maximum
Reverse Leakage
@VRWM | Maximum
Peak Pulse
Current | Maximum
Clamping
Voltage@IPPM | Maximum
Temperature
Coefficient
of V(BR) | Power
Dissipation | Package |
|
|
| VBR@IT | IT | VRWM | IR | IRSM | VRSM | Pd |
| Min | Max | mA | V | μA | A | V | %/ºC | W |
| 5KP5.0 | 6.40 | 7.30 | 50 | 5.0 | 5000 | 520 | 9.6 | 0.057 | 5000 | R-6 |
| 5KP5.0A | 6.40 | 7.00 | 50 | 5.0 | 5000 | 543 | 9.2 | 0.057 | 5000 |
| 5KP6.0 | 6.67 | 8.15 | 50 | 6.0 | 5000 | 439 | 11.4 | 0.061 | 5000 |
| 5KP6.0A | 6.67 | 7.37 | 50 | 6.0 | 5000 | 485 | 10.3 | 0.061 | 5000 |
| 5KP6.5 | 7.22 | 8.82 | 50 | 6.5 | 2000 | 407 | 12.3 | 0.065 | 5000 |
| 5KP6.5A | 7.22 | 7.98 | 50 | 6.5 | 2000 | 447 | 11.2 | 0.065 | 5000 |
| 5KP7.0 | 7.78 | 9.51 | 50 | 7.0 | 1000 | 378 | 13.3 | 0.068 | 5000 |
| 5KP7.0A | 7.78 | 8.60 | 50 | 7.0 | 1000 | 417 | 12.0 | 0.068 | 5000 |
| 5KP7.5 | 8.33 | 10.2 | 5.0 | 7.5 | 250 | 350 | 14.3 | 0.073 | 5000 |
| 5KP7.5A | 8.33 | 9.21 | 5.0 | 7.5 | 250 | 388 | 12.9 | 0.073 | 5000 |
| 5KP8.0 | 8.89 | 10.9 | 5.0 | 8.0 | 150 | 333 | 15.0 | 0.075 | 5000 |
| 5KP8.0A | 8.89 | 9.83 | 5.0 | 8.0 | 150 | 367 | 13.6 | 0.075 | 5000 |
| 5KP8.5 | 9.44 | 11.5 | 5.0 | 8.5 | 50 | 314 | 15.9 | 0.078 | 5000 |
| 5KP8.5A | 9.44 | 10.4 | 5.0 | 8.5 | 50 | 347 | 14.4 | 0.078 | 5000 |
| 5KP9.0 | 10.0 | 12.2 | 5.0 | 9.0 | 20 | 295 | 16.9 | 0.081 | 5000 |
| 5KP9.0A | 10.0 | 11.1 | 5.0 | 9.0 | 20 | 325 | 15.4 | 0.081 | 5000 |
| 5KP10 | 11.1 | 13.6 | 5.0 | 10.0 | 15 | 266 | 18.8 | 0.084 | 5000 |
| 5KP10A | 11.1 | 12.3 | 5.0 | 10.0 | 15 | 294 | 17.0 | 0.084 | 5000 |
| 5KP11 | 12.2 | 14.9 | 5.0 | 11.0 | 10 | 249 | 20.1 | 0.086 | 5000 |
| 5KP11A | 12.2 | 13.5 | 5.0 | 11.0 | 10 | 274 | 18.2 | 0.086 | 5000 |
| 5KP12 | 13.3 | 16.3 | 5.0 | 12.0 | 10 | 227 | 22.0 | 0.088 | 5000 |
| 5KP12A | 13.3 | 14.7 | 5.0 | 12.0 | 10 | 251 | 19.9 | 0.088 | 5000 |
| 5KP13 | 14.4 | 17.6 | 5.0 | 13.0 | 10 | 210 | 23.8 | 0.090 | 5000 |
| 5KP13A | 14.4 | 15.9 | 5.0 | 13.0 | 10 | 232 | 21.5 | 0.090 | 5000 |
| 5KP14 | 15.6 | 19.1 | 5.0 | 14.0 | 10 | 194 | 25.8 | 0.092 | 5000 |
| 5KP14A | 15.6 | 17.2 | 5.0 | 14.0 | 10 | 215 | 23.2 | 0.092 | 5000 |
| 5KP15 | 16.7 | 20.4 | 5.0 | 15.0 | 10 | 188 | 26.9 | 0.094 | 5000 |
| 5KP15A | 16.7 | 18.5 | 5.0 | 15.0 | 10 | 206 | 24.4 | 0.094 | 5000 |
| 5KP16 | 17.8 | 21.8 | 5.0 | 16.0 | 10 | 176 | 28.8 | 0.096 | 5000 |
| 5KP16A | 17.8 | 19.7 | 5.0 | 16.0 | 10 | 192 | 26.0 | 0.096 | 5000 |
| 5KP17 | 18.9 | 23.1 | 5.0 | 17.0 | 10 | 164 | 30.5 | 0.097 | 5000 |
| 5KP17A | 18.9 | 20.9 | 5.0 | 17.0 | 10 | 181 | 27.6 | 0.097 | 5000 |
| 5KP18 | 20.0 | 24.4 | 5.0 | 18.0 | 10 | 155 | 32.2 | 0.098 | 5000 |
| 5KP18A | 20.0 | 22.1 | 5.0 | 18.0 | 10 | 172 | 29.2 | 0.098 | 5000 |
| 5KP20 | 22.2 | 27.1 | 5.0 | 20.0 | 10 | 139 | 35.8 | 0.099 | 5000 |
| 5KP20A | 22.2 | 24.5 | 5.0 | 20.0 | 10 | 154 | 32.4 | 0.099 | 5000 |
| 5KP22 | 22.4 | 29.8 | 5.0 | 22.0 | 10 | 127 | 39.4 | 0.100 | 5000 |
| 5KP22A | 22.4 | 26.9 | 5.0 | 22.0 | 10 | 141 | 35.5 | 0.100 | 5000 |
| 5KP24 | 26.7 | 32.6 | 5.0 | 24.0 | 10 | 116 | 43.0 | 0.101 | 5000 |
| 5KP24A | 26.7 | 29.5 | 5.0 | 24.0 | 10 | 128 | 38.9 | 0.101 | 5000 |
| 5KP26 | 28.9 | 35.3 | 5.0 | 26.0 | 10 | 107 | 46.6 | 0.101 | 5000 |
| 5KP26A | 28.9 | 31.9 | 5.0 | 26.0 | 10 | 119 | 42.1 | 0.101 | 5000 |
| 5KP28 | 31.1 | 38.0 | 5.0 | 28.0 | 10 | 99 | 50.1 | 0.102 | 5000 |
| 5KP28A | 31.1 | 34.4 | 5.0 | 28.0 | 10 | 110 | 45.4 | 0.102 | 5000 |
| 5KP30 | 33.3 | 40.7 | 5.0 | 30.0 | 10 | 93 | 53.5 | 0.103 | 5000 |
| 5KP30A | 33.3 | 36.8 | 5.0 | 30.0 | 10 | 103 | 48.4 | 0.103 | 5000 |
| 5KP33 | 36.7 | 44.9 | 5.0 | 33.0 | 10 | 86 | 59.0 | 0.104 | 5000 |
| 5KP33A | 36.7 | 40.6 | 5.0 | 33.0 | 10 | 94 | 53.3 | 0.104 | 5000 |
| | | | | | | | | |
| TYPE | Breakdown Voltage | Stand-off
Voltage | Maximum
Reverse Leakage
@VRWM | Maximum
Peak Pulse
Current | Maximum
Clamping
Voltage@IPPM | Maximum
Temperature
Coefficient
of V(BR) | Power
Dissipation | Package |
|
|
| VBR@IT | IT | VRWM | IR | IRSM | VRSM | Pd |
| Min | Max | mA | V | μA | A | V | %/ºC | W |
| 5KP36 | 40.0 | 48.9 | 5.0 | 36.0 | 10 | 78 | 64.3 | 0.104 | 5000 | R-6 |
| 5KP36A | 40.0 | 44.2 | 5.0 | 36.0 | 10 | 86 | 58.1 | 0.104 | 5000 |
| 5KP40 | 44.4 | 54.3 | 5.0 | 40.0 | 10 | 70 | 71.4 | 0.105 | 5000 |
| 5KP40A | 44.4 | 49.1 | 5.0 | 40.0 | 10 | 78 | 64.5 | 0.105 | 5000 |
| 5KP43 | 47.8 | 58.4 | 5.0 | 43.0 | 10 | 65 | 76.7 | 0.105 | 5000 |
| 5KP43A | 47.8 | 52.8 | 5.0 | 43.0 | 10 | 72 | 69.4 | 0.105 | 5000 |
| 5KP45 | 50.0 | 61.1 | 5.0 | 45.0 | 10 | 62 | 80.3 | 0.106 | 5000 |
| 5KP45A | 50.0 | 55.3 | 5.0 | 45.0 | 10 | 69 | 72.7 | 0.106 | 5000 |
| 5KP48 | 53.3 | 65.2 | 5.0 | 48.0 | 10 | 58 | 85.5 | 0.106 | 5000 |
| 5KP48A | 53.3 | 58.9 | 5.0 | 48.0 | 10 | 65 | 77.4 | 0.106 | 5000 |
| 5KP51 | 56.7 | 69.3 | 5.0 | 51.0 | 10 | 55 | 91.1 | 0.107 | 5000 |
| 5KP51A | 56.7 | 62.7 | 5.0 | 51.0 | 10 | 61 | 82.4 | 0.107 | 5000 |
| 5KP54 | 60.0 | 73.3 | 5.0 | 54.0 | 10 | 52 | 96.3 | 0.107 | 5000 |
| 5KP54A | 60.0 | 66.3 | 5.0 | 54.0 | 10 | 57 | 87.1 | 0.107 | 5000 |
| 5KP58 | 64.4 | 78.7 | 5.0 | 58.0 | 10 | 49 | 103.0 | 0.107 | 5000 |
| 5KP58A | 64.4 | 71.2 | 5.0 | 58.0 | 10 | 53 | 93.6 | 0.107 | 5000 |
| 5KP60 | 66.7 | 81.5 | 5.0 | 60.0 | 10 | 47 | 107.0 | 0.108 | 5000 |
| 5KP60A | 66.7 | 73.7 | 5.0 | 60.0 | 10 | 52 | 96.8 | 0.108 | 5000 |
| 5KP64 | 71.1 | 86.9 | 5.0 | 64.0 | 10 | 44 | 114.0 | 0.108 | 5000 |
| 5KP64A | 71.1 | 78.6 | 5.0 | 64.0 | 10 | 49 | 103.0 | 0.108 | 5000 |
| 5KP70 | 77.8 | 95.1 | 5.0 | 70.0 | 10 | 40 | 125.0 | 0.108 | 5000 |
| 5KP70A | 77.8 | 86.0 | 5.0 | 70.0 | 10 | 44 | 113.0 | 0.108 | 5000 |
| 5KP75 | 83.3 | 102.0 | 5.0 | 75.0 | 10 | 37 | 134.0 | 0.108 | 5000 |
| 5KP75A | 83.3 | 92.1 | 5.0 | 75.0 | 10 | 41 | 121.0 | 0.108 | 5000 |
| 5KP78 | 86.7 | 106.0 | 5.0 | 78.0 | 10 | 36 | 139.0 | 0.108 | 5000 |
| 5KP78A | 86.7 | 95.8 | 5.0 | 78.0 | 10 | 40 | 126.0 | 0.108 | 5000 |
| 5KP85 | 94.4 | 115.0 | 5.0 | 85.0 | 10 | 33 | 151.0 | 0.108 | 5000 |
| 5KP85A | 94.4 | 104.0 | 5.0 | 85.0 | 10 | 36 | 137.0 | 0.108 | 5000 |
| 5KP90 | 100 | 122.0 | 5.0 | 90.0 | 10 | 31 | 160.0 | 0.110 | 5000 |
| 5KP90A | 100 | 111.0 | 5.0 | 90.0 | 10 | 34 | 146.0 | 0.110 | 5000 |
| 5KP100 | 111 | 136.0 | 5.0 | 100.0 | 10 | 28 | 179.0 | 0.110 | 5000 |
| 5KP100A | 111 | 123.0 | 5.0 | 100.0 | 10 | 31 | 162.0 | 0.110 | 5000 |
| 5KP110 | 122 | 149.0 | 5.0 | 110.0 | 10 | 26 | 196.0 | 0.112 | 5000 |
| 5KP110A | 122 | 135.0 | 5.0 | 110.0 | 10 | 28 | 177.0 | 0.112 | 5000 |
| 5KP120 | 133 | 163.0 | 5.0 | 120.0 | 10 | 23 | 215.0 | 0.112 | 5000 |
| 5KP120A | 133 | 148.0 | 5.0 | 120.0 | 10 | 26 | 194.0 | 0.112 | 5000 |
| 5KP150 | 166 | 204.0 | 5.0 | 150.0 | 10 | 19 | 269.0 | 0.112 | 5000 |
| 5KP150A | 166 | 186.0 | 5.0 | 150.0 | 10 | 21 | 242.0 | 0.112 | 5000 |
| 5KP160 | 178 | 217.0 | 5.0 | 160.0 | 10 | 17 | 285.0 | 0.112 | 5000 |
| 5KP160A | 178 | 196.0 | 5.0 | 160.0 | 10 | 19 | 258.0 | 0.112 | 5000 |
| 5KP170 | 189 | 230.0 | 5.0 | 170.0 | 10 | 17 | 302.0 | 0.112 | 5000 |
| 5KP170A | 189 | 208.0 | 5.0 | 170.0 | 10 | 18 | 273.0 | 0.112 | 5000 |
| 5KP180 | 200 | 245 | 5.0 | 180.0 | 10 | 16 | 322.0 | 0.112 | 5000 |
| 5KP180A | 200 | 222 | 5.0 | 180.0 | 10 | 17 | 292.0 | 0.112 | 5000 |
