Introduction:
This type CT is designed for easy installation in tight spaces and environent
without removing the main busbar or cable The connector uses the holding
pressure of folding structure. Safe isolation to protect the user from direct
contact with the electrified body.Meet the 600V ,CAT III secure degree.
Features:
1. Flexible and light weights, exquisite appearance
2. Easy &quick installation in tight spaces
3. Excellent linearity
4. Maximum measuring current up to 550A
Applications:
1. Power quality monitoring
2. Smart logger
3. Distributed measurement systems

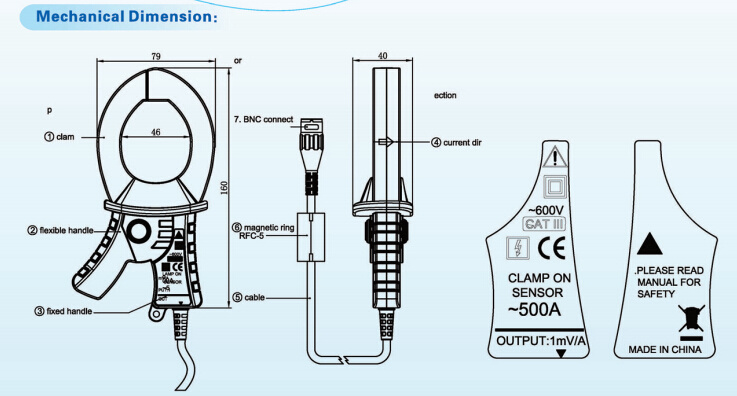

Mechanical Dimension:
Technical index:
Item | Parameter |
Rated Primary | 500A AC |
Output voltage | 1Mv AC/A |
Amplitude Accuracy | ±0.3%rdg. ±0.01%f.s.(f.s:500A,45Hz-66Hz,primary conductor in the center) |
Phase Accuracy | ±0.5º(10-100%IIn )(45Hz-5kHz) |
The Amplitude Frequency Characteristic | ±1%(45Hz-5kHz)(Deviation Accuracy) |
Conductor Impact | ±0.5%(off-center) |
The influence of external electromagnetic fields | ≤0.1A(In AC 400A/m electromagnetic fields) |
Maximum input current | 550A AC Continuous (45-66Hz,Ambient temperature50º C |
Temperature Coefficient | 0.02%reading data /º C |
Dielectirc strength | 5312V ACrms/continue15seconds(circuits-iron core) |
The Maximum rated voltage | 600V crms |
Operating temperature &humidity | 0 to 50º (32-122º F), ≤80%RH(NO condensate) |
Storage temperature &humidity | -10º C to60º C(14-140º F), ≤80%RH(NO condense) |
Indoors operating environment ,UP to 2000m above sea level | |
Applicable Standards | Safety:EN 61010-2-032:2002,CATIII ,Contamination II EMC:EN 1326:1997+A1:1998+A2:2001+A3:2003(classA) |
Measurable conductor diameter | ≤Ø46mm |
Cable Length | About3M |
Dimension | About 79W*159H*40Dmm (Excluding Protruding parts) |
Weight | About 380G |
Application:
1. Connect theBNC connector,then lock
2. Open the clamp
3. Insert the able into clamp, then close
Note: Upon request we are glad to offer transformers according to other technical specs.
