| Prod Model: |
Q50A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Q50: |
Clamp-on Current Sensor |
| Operating Temperature: |
-20~55 |
| Measuring Current Range: |
0~1000A |
| Dimensions: |
101mm*219mm*26mm |
| Weight: |
550g |
| Color: |
Blue |
| Ouput Signal: |
0-1A |
| Ratio: |
1000A/1A |
| Class: |
0.1% |
| Jaw Open: |
50mm |
| Application: |
Energy Instruments |
Product Description

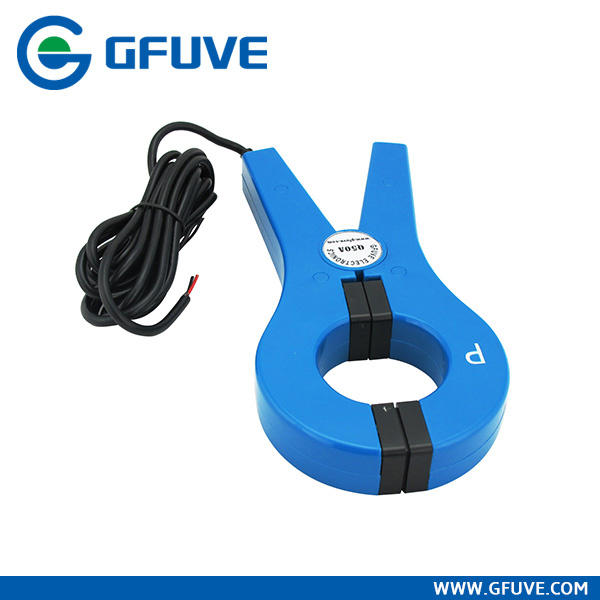

Q50A 500A High Performance Clamp-on AC Current Sensor
Product Description
Clamp on Type ac Current sensor Universal Current Transformer Clamp on Current Transformer belongs to high performance transformer field. It is a high accuracy AC current transformer which can measure and analyze a variety of electric parameter without power outage, and the difficult part in technology development is that the high quality magnetic core requests open freely.
Characteristic and application
Suitable for 1000 A cable online measurement.
Lolding wire diameter: Φ 50mm
Dimension: 101mm× 219mm× 26mm
Load capacity: MA output≤ 4Ω , 1A output 0.1Ω , 5A output 2.5VA
Installation: Clamp type
Output mode: Lead output
Primary current | Secondary current | Precision |
| 10A | 2.5mA | Class 0.1%, 0.2%, 0.5% |
| 10A | 5mA | Class 0.1%, 0.2%, 0.5% |
| 20A | 5mA | Class 0.1%, 0.2%, 0.5% |
| 100A | 20mA | Class 0.1%, 0.2%, 0.5% |
| 100A | 40mA | Class 0.1%, 0.2%, 0.5% |
| 100A | 50mA | Class 0.1%, 0.2%, 0.5% |
| 100A | 100mA | Class 0.1%, 0.2%, 0.5% |
| 200A | 80mA | Class 0.1%, 0.2%, 0.5% |
| 200A | 100mA | Class 0.1%, 0.2%, 0.5% |
| 200A | 200mA | Class 0.1%, 0.2%, 0.5% |
| 300A | 120mA | Class 0.1%, 0.2%, 0.5% |
| 300A | 150mA | Class 0.1%, 0.2%, 0.5% |
| 300A | 200mA | Class 0.1%, 0.2%, 0.5% |
| 300A | 300mA | Class 0.1%, 0.2%, 0.5% |
| 500A | 100mA | Class 0.1%, 0.2%, 0.5% |
| 500A | 200mA | Class 0.1%, 0.2%, 0.5% |
|
| 500A | 250mA | Class 0.1%, 0.2%, 0.5% |
|
| 500A | 500mA | Class 0.1%, 0.2%, 0.5% |
|
| Primary current | Secondary current | Precision |
|
| 600A | 120mA | Class 0.1%, 0.2%, 0.5% |
|
| 600A | 200mA | Class 0.1%, 0.2%, 0.5% |
|
| 600A | 300mA | Class 0.1%, 0.2%, 0.5% |
|
| 600A | 400mA | Class 0.1%, 0.2%, 0.5% |
|
| 600A | 500mA | Class 0.1%, 0.2%, 0.5% |
|
| 600A | 600mA | Class 0.1%, 0.2%, 0.5% |
|
| 700A | 200mA | Class 0.1%, 0.2%, 0.5% |
|
| 700A | 350mA | Class 0.1%, 0.2%, 0.5% |
|
| 700A | 700mA | Class 0.1%, 0.2%, 0.5% |
|
| 800A | 160mA | Class 0.1%, 0.2%, 0.5% |
|
| 800A | 200mA | Class 0.1%, 0.2%, 0.5% |
|
| 800A | 250mA | Class 0.1%, 0.2%, 0.5% |
|
| 800A | 320mA | Class 0.1%, 0.2%, 0.5% |
|
| 800A | 400mA | Class 0.1%, 0.2%, 0.5% |
|
| 800A | 500mA | Class 0.1%, 0.2%, 0.5% |
|
| 800A | 800mA | Class 0.1%, 0.2%, 0.5% |
|
| 500A ~ 1000A | 1A | Class 0.2%, 0.5% |
|
| 600A ~ 1000A | 1A | Class 0.1%, 0.2%, 0.5% |
|
| 200A | 5A | Class 1% |
|
| 300A ~ 500A | 5A | Class 0.5% |
|
| 500A ~ 1000A | 5A | Class 0.2%, 0.5% |
|
| Grounding resistance tester supporting | Need to match special instrument | Class 0.1%, 0.5% |
| Ratio | 1000: 1 or 2000:1 , customized |
| Nominal input current | 1000 A |
| Max. Cont. Input current | 1200A |
| Accuracy | 0.1 % , 0.2% , 0.5% |
| Over voltage category | CAT III 600 V |
| Output signal | 500mA,1A,5A AC at nominal input current |
| Frequency range | 40 Hz-2000 Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20 °C to +55 °C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Max. jaw opening | 50 mm |
| Standard | EN 61010-1 |
| Dimensions | 101mm x 219mm x 26mm |
| Weight | 650 g |
