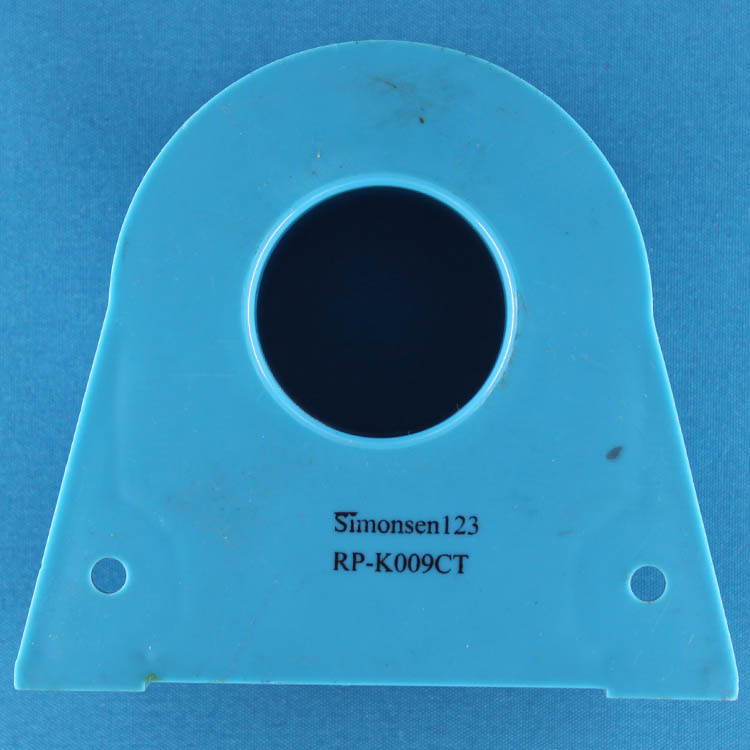

500A100mA single phase toroidal current transformer

1. Product Type: Current Transformer
1.1 Model NO:simonsen123 RP-K009CT
1.2 Installation: terminal elicited.

2. Feature
2.1 Application: electronic energy meter, instrument, current sensor, PDU, switch power, induction cooker.
2.2 Phase: single
2.3 Usage: measurement
2.4 Insulating medium: epoxy resin
2.5 Certification: RoHS, ISO 9001:2008

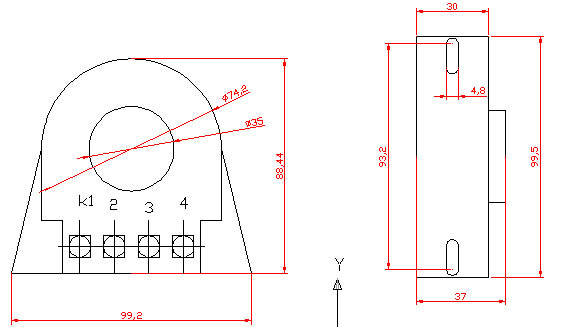

3. Size (mm)

4. Performance Parameter

Model NO	Turns Ratio	Rated Input Current	Rated Output Current	Load Resistor	Out voltage	Accuracy	Permissible Error	Phase Angle Error	Max Current
RP-K007CT-1.0	1000:1	100A	100mA	10Ω	1.0V	0.05	≤0.02%	≤12'	200A
RP-K008CT-2.0	2000:1	200A	100mA	10Ω	1.0V	0.05	≤0.02%	≤14'	300A
RP-K009CT-3.0	3000:1	300A	100mA	10Ω	1.V	0.5	≤0.02%	≤16'	400A
RP-K010CT-4.0	4000:1	400A	100mA	10Ω	1.V	0.5	≤0.02%	≤18'	500A
RP-K011CT-5.0	5000:1	500A	100mA	10Ω	1.V	0.5	≤0.02%	≤20'	800A
CT-020	240:320:480				L4-3=114mH,L4-2=203mH,L4-1=450mH

5. Security Parameters :
5.1 Isolation Voltage: Primary Winding and Secondary Winding:3KV/2mA/60Sec;
5.2 Insulation Conductor:≥500MΩ /500V DC;
5.3 Inflaming Retarding: up to the standard of UL94-V0; environmental protection meets the muster of ROHS and pass the test of SGS ROHS;
5.4 Operating Temperature: -40ºC~+85ºC Humidity ≤95%;
5.5 Frequency Range: 50KHZ~60KHZ

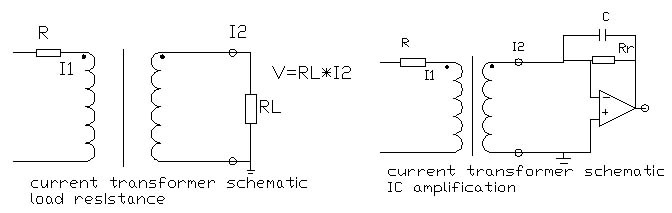

6. Schematic

Established in 2004, Shenzhen Simonsen123 Electronic Co., Ltd is engaged in research & development, manufacture and sales for current transformer, voltage transformer, multi-coil inductance, leakage protector and balun inductor.

The company has the factory of over 5000 square meters and more than 200 staff, in which possesses 2 injection molding machines, 200 full-automatic annular coil winding machines, over 20 LCR testers, 20 inductance comprehensive tester, 10 transformer specified tester and a batch of import tester, such as automatic dispenser, full-automatic laser printer and etc. While, the injection molding machine provides strong guarantee for developing new products. Our monthly production achieves 200, 000 current transformers and 6, 000, 000 inductances. The company and the factory have passed ISO 9001 on August, 2013 and all of our products meet the standard of RoHS.
