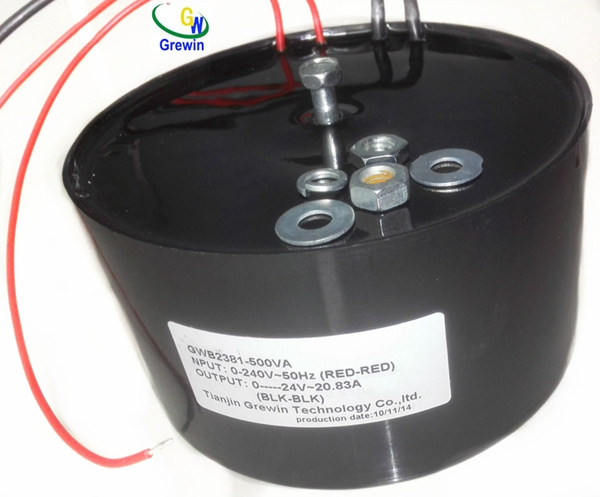

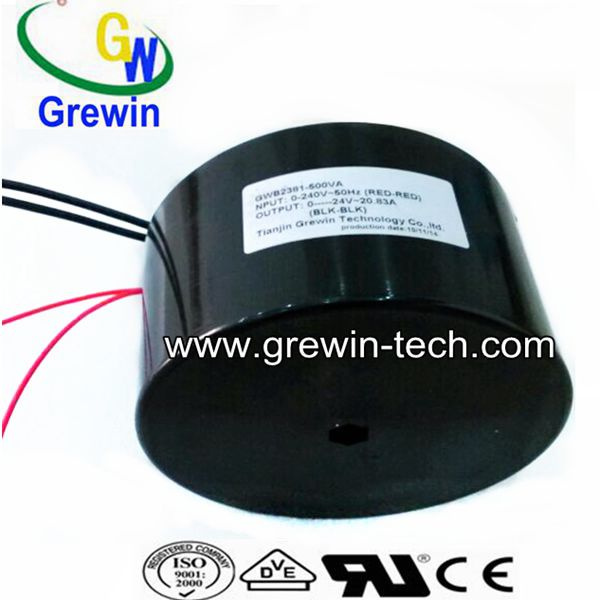

| Prod Model: |
GWB2381-500v |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounting Type: |
Horizontal Sunk, Side Type, and Bridge Installatio |
| Type: |
Toroidal Transformer |
| Application: |
Swimming Lighting,Pool |
| Coil Number: |
High Flux Density Grain- Oriented Silicon Steel |
| Frequency: |
50Hz/60Hz |
| Phase: |
Single |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Coil: |
Toroid Core |
| Certification: |
ISO9001:2015,Ce,SGS, IEC |
| Usage: |
Grewin Waterproof Toroidal Transformer |
| Brand: |
Grewin Outdoor Toroidal Transformer |
Product Description

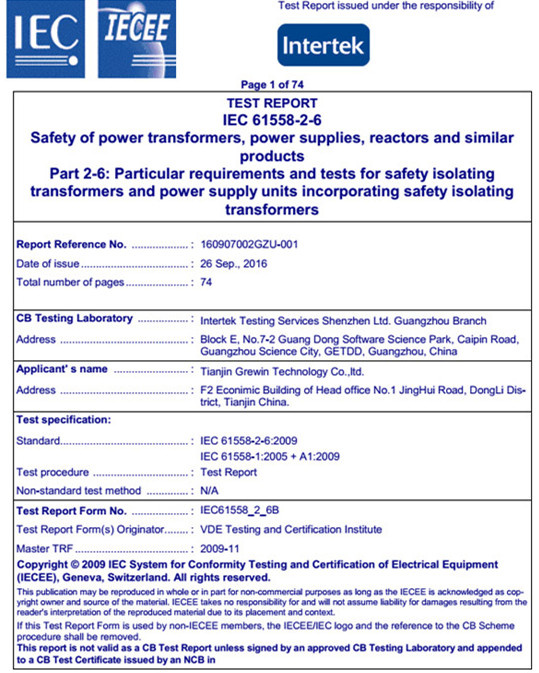

We have passed ISO9001:2015,CE,SGS approval and IEC report
Main parameters:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Power range:25VVA-6KVA
1.Application:
1). garden light
2). LED underwater lamp
3).LED Ground light
4).Outdoor power Supply
5).Audio sound field
6).Stage lighting2.Advantages:
1).100% copper wire made
2).Toroidal style
3).plastic cover :ABS fire Material of withstand high temperatures
4).Epoxy resin
5).high performance insulation
6).Anti-corrosion, waterproof performance
3.Equipment:
Over 50 sets toroidal/annular/ ring coil winding machines, 3 EI type transformer lines, 2 sets of vacuum annealing furnaces, A set of nitrogen and hydrogen production equipment as below:
. Automatic Winding Machine
. Semi-automatic Winding Machine
. Toroidal Winding Machine
. Insert Lamination Machine
. Wave Soldering Machine
. Plastic Termal Ultraviolet Machine
. Domino Ink Jet Printing Machine
Transformer Multitester for High & Low Frequency
Layer Insulation Withstand Voltage Tester
4.Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
5.Certificate
We have abtained CE CQC RoHs UL ISO9001:2015,SGS and IEC approval. We guarantee quality is the first.
Test process:
1). No-load test (included no-load voltage,no load current and no load loss)
2). IInductive voltage test
3). Load test (load voltage and temperature rise
4). Temperature rise test .
5). Insulated resistance
6).Hi-pot test
7).Leakage indutance test
8).DC resistance test
9).Surface inspection.6.Note
The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products by customer design. And the specification is for reference, if has the change further, please take the material object as the standard.

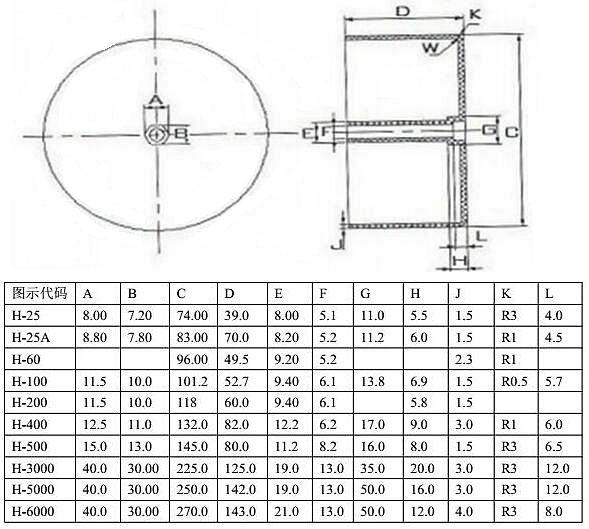

7.GREWIN'S Dimension :
External diameter: 55mm-300mm, height :13mm-130mm, Efficiency: 75-98%
we can design the appropriate products according to customers' requirments such as installation dimension, input and output voltage,power...etc.)About us:
1.Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".
2.Flow chart of trading activities:
NO | Step | Days need |
1 | Request for quotation | 1 day |
2 | Making quotations | 1 day |
3 | Offer and counter offer | 3 days |
4 | Sending and receiving samples | 3-10 days |
5 | Sample confirmation | 3 days |
6 | Placing a firm order | 1 day |
7 | Paying and receiving the down payment | 1-4 day |
8 | Factory production & Quality inspection | 15-20 days |
9 | Paying and receiving the balance | 4 days |
10 | Delivery of goods | 1 days |
Contact Information:
Cathy
Tianjin Grewin Technology Co.,Ltd.
Website:www.grewin-tech.com
Tel:86-22-84943756
GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.
Our company have many advantages which can be your honesty and reliable supplier:
WHY CHOOSE US?
A. Business philosophy "Quality and Honesty First“
B. Over 40 years experience of transformer designing and producing.
C. Transformer 100% test before the shipment;
D. UL, CE, ISO9001: 2008
E. We offer custom-made transformers, OEM and ODM are welcome
F. We expect at consistently competitive prices
G. Transformer quality lifetime: 10 Years.
H. Professional experiences of the sales and engineers: 5 -10 Years
Grewin Mission: Growing together side by side, Mutual success hand in hand.
We sincerely invite you to join us to create a bright future.
