Product Description

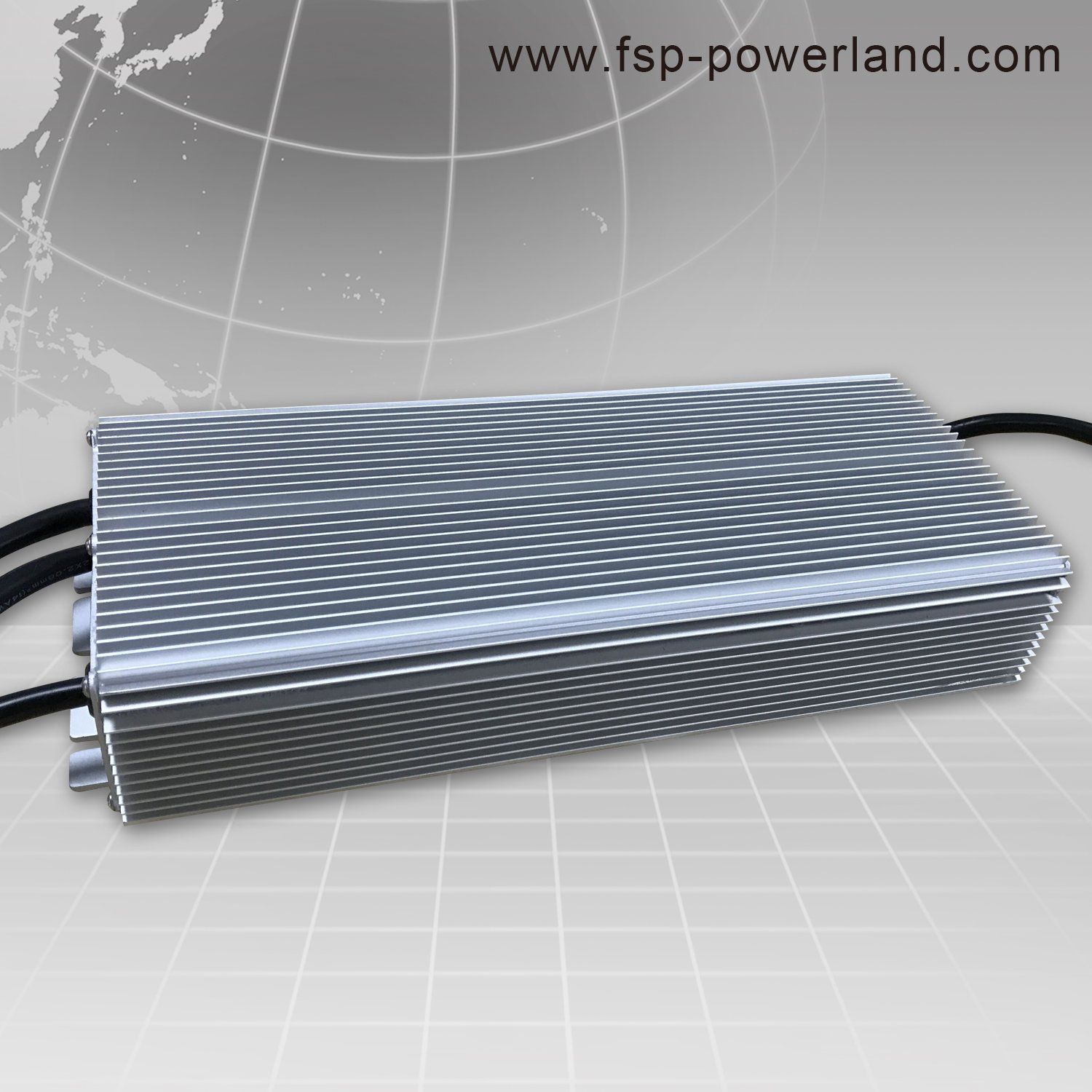

500W 11.9A Programmable Constant Current Waterproof LED Power Supply
Powerland's PLD500-SMT-48 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 11.9A, and designed for 0(0.05)-10V/
PWM/Rset/Clock/DMX Ultra-deep dimming applications.ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Parking lights and Architecture decoration lights
LED Horticulture lights
LED Fishing lights
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 500W | 32V
…
48V | 11.9A | 95.5% | 90ºC | 5.5A | 570W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.
Features
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current programmable
>70,000 hours lifetime at 75ºC Tcase>7 years warranty at 75ºC Tcase
IP67 ingress protectionMin. operating temperature @ -40ºCConstant current output
Compatible with 0-10V, PWM, external resistor, clock,DMX dimmingUniversal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit ProtectionElectrical Specifications| Model | PLD500-SMT-48 |
| Output Voltage | 32~48V |
| Output Current | 11.9A |
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
| Dimming | 0(0.05)~10V, PWM, External Resistor, Clock, DMX |
| Current Programmable | Yes |
| Output Power | 500W |
| Max. Current Ripple | ±5% |
| Max. Voltage Ripple | 250mVp-p |
| Voltage Range | 108~305Vac |
| Frequency Range | 47~63Hz |
| Max. Input Current | 5.5A |
| Max. Input Power | 570W |
| Power Factor | >0.95 @ 120Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
| Efficiency | 95.5% |
| Max. Open Circuit Voltage | 51V |
| THD | <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
| Protections | OVP, OTP, OCP, SCP |
| Environmental Protection | UL Dry & Damp & Wet |
| Working Temperature | -40~+70ºC |
| Max. Case Temperature | 90ºC |
| Surge Protection | 5.5kV/11kV |
| Agency Approbations | UL8750 |
| Electromagnetic Compliance | Per Title 47 CFR Part 15 Class A |
| Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
| Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
| Dimension | 280x123x54 mm (11.02x4.84x2.13 inch) |
| Mounting Length | 290 mm (11.50inch) |
| Overall Length | 304 mm (11.42 inch) |
| Weight | 3.56 kg ( 7.85lb) |
| Life Time | >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

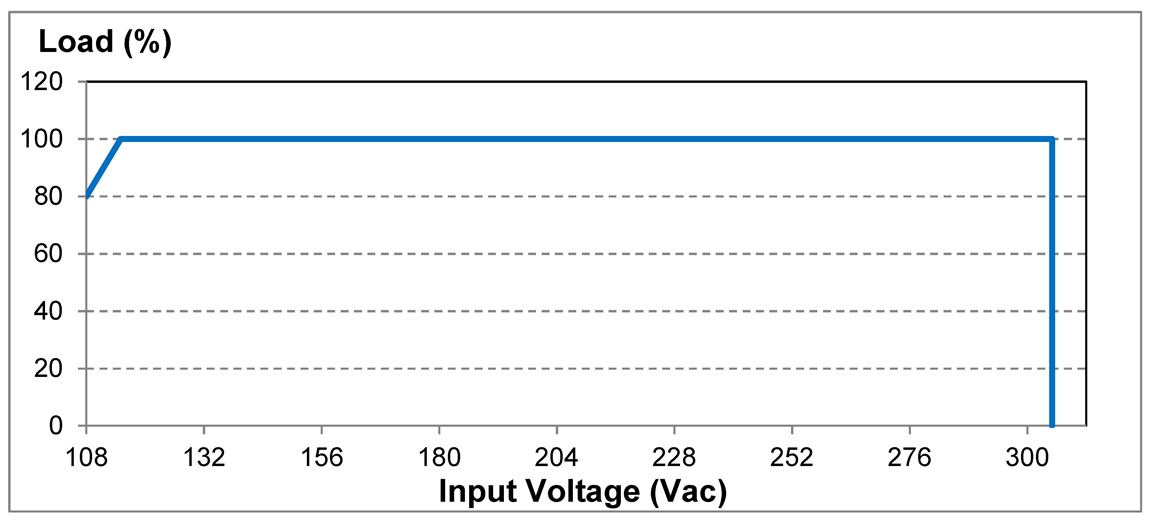

Static Characteristics

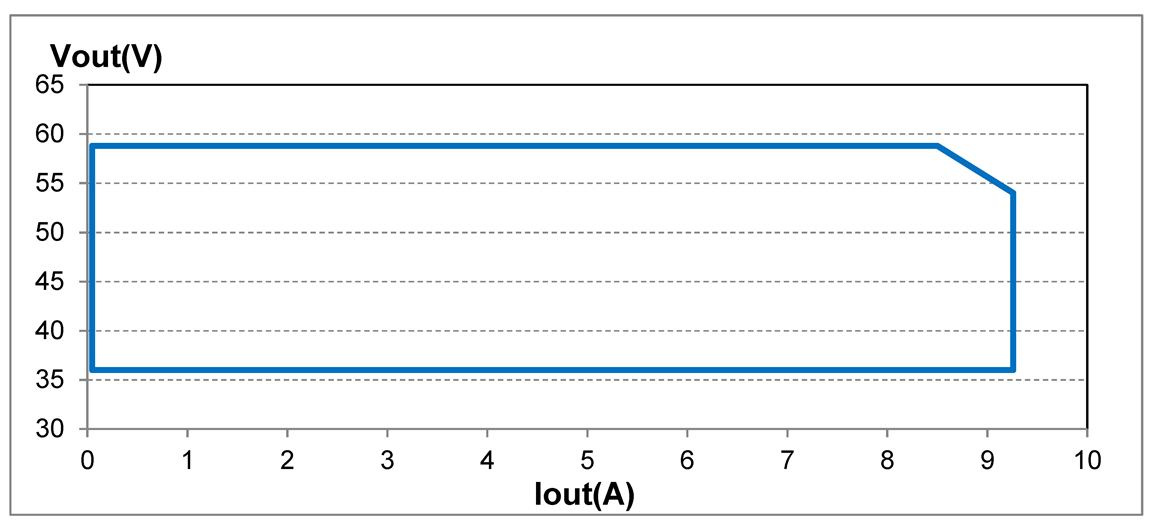

Electrical SpecificationsI-V Programming Area: Output Voltage vs. Output Current

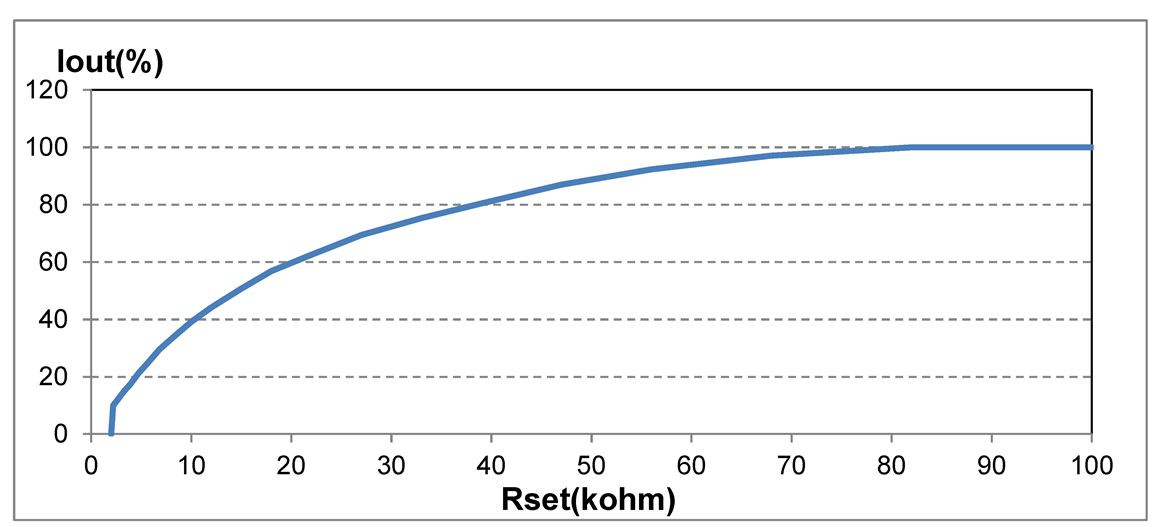

Electrical SpecificationsOutput Current vs. External Setting Resistor

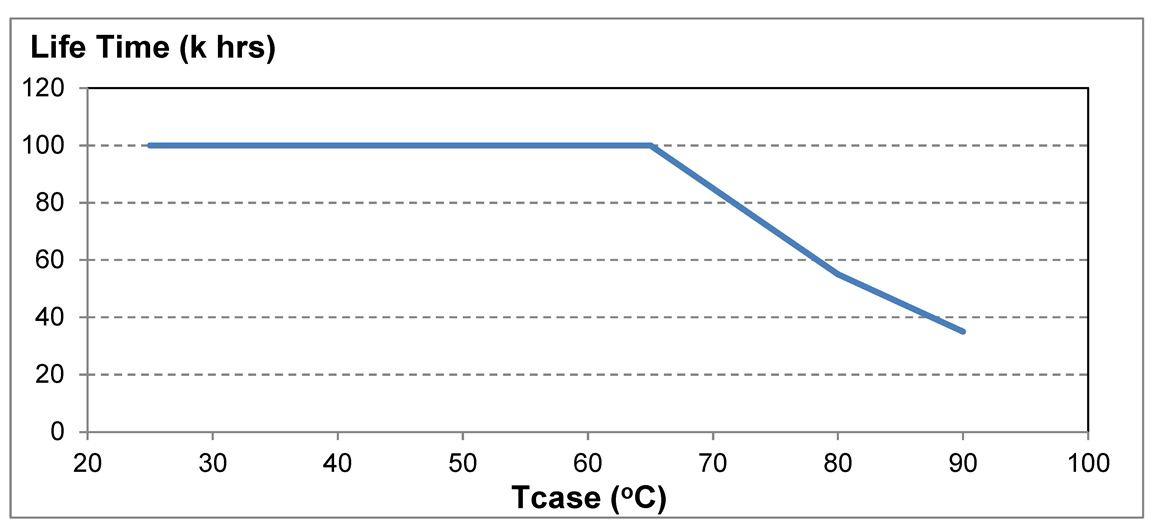

Performance CharacteristicsLife Time vs. Case Temperature

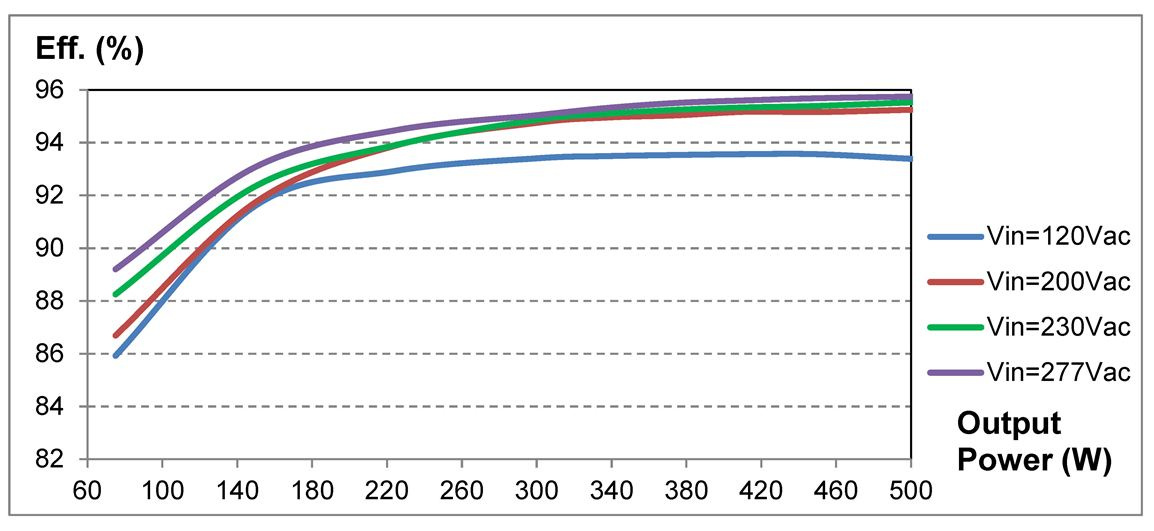

Performance CharacteristicsEfficiency vs. Output Power

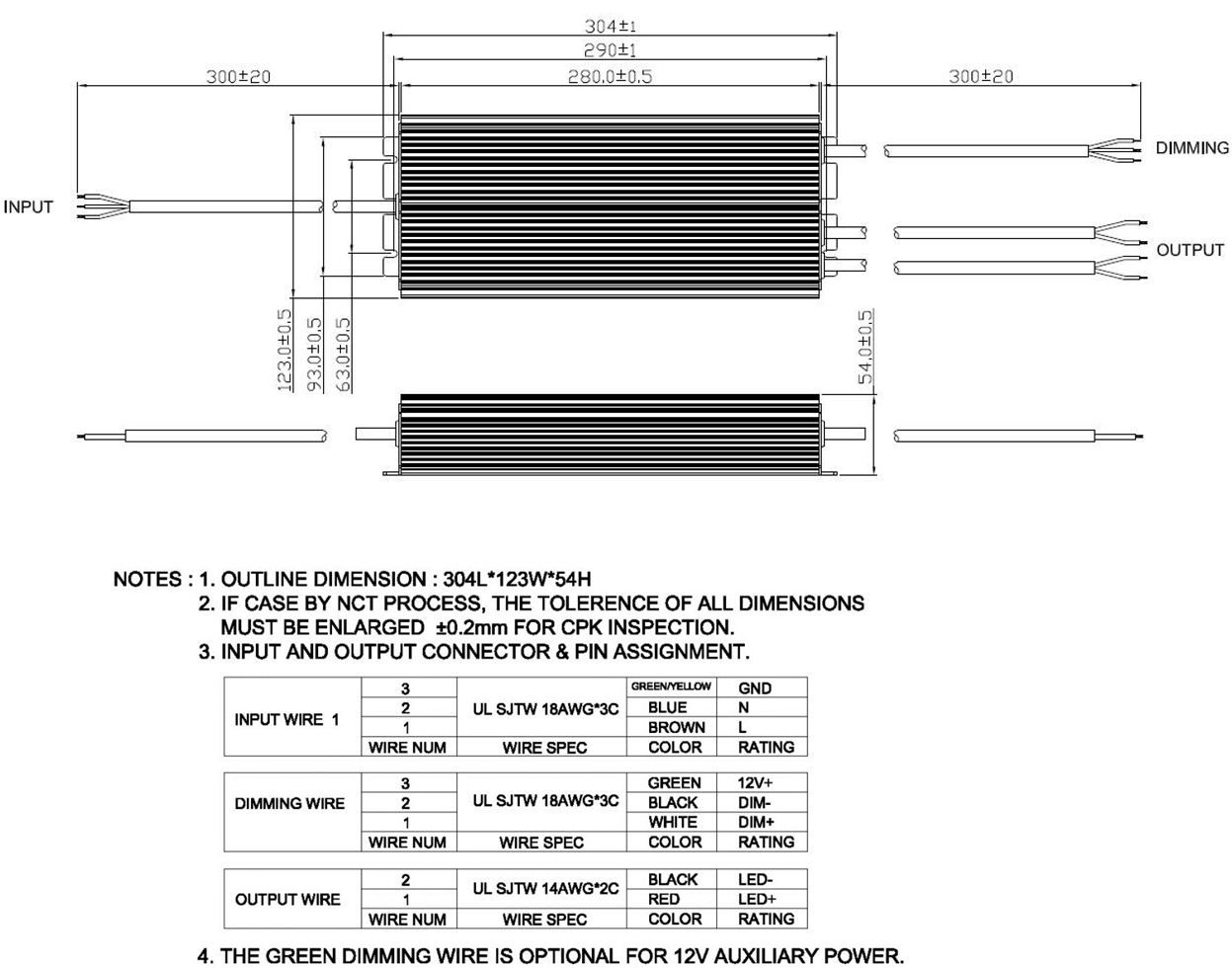

Mechanical Specification
FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.
Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.
Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
