| Prod Model: |
halogen quartz heater tube |
| Voltage: |
24V/75V/110/220V/240V/Customize |
| Wave Length: |
2.2-3.5 Um |
| Color: |
Milky White or Red or Golden |
| Reflection: |
Gold Planted or White Coated |
| Thermal Response Speed: |
3-5 Min |
| Warranty: |
1 Year |
Product Description

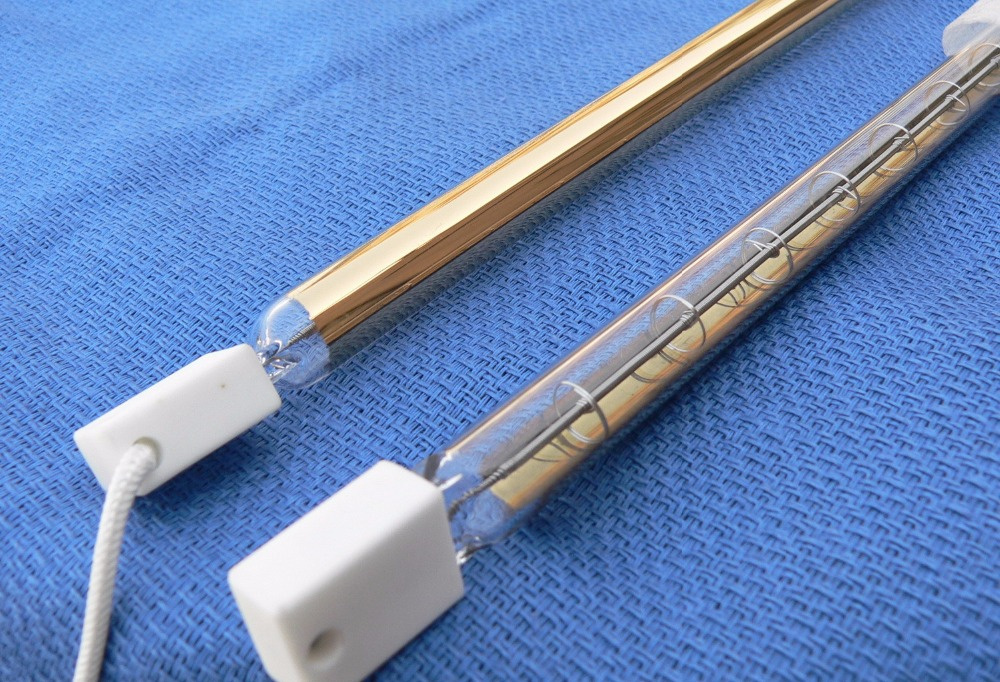

500W 3-5 min thermal response speed gold plated jacket halogen quartz heater tube Introduction
quartz infrared heating tube with the ability of fast thermal response.
This kind quartz heater component has strong transmission at far infrared.
The surface temperature range of Hongtai's quartz heating tube can be divided into three groups:
low temperature (400°C --600°C), mid temperature:(600°C --800°C), high temperature (800°C --1000 °C).
If the customers need professional help with their design, the technician group will provide their help.
type of glod coating far infrared quartz heater tubes:
Product Name
quartz tube infrared heater
Outside Diameter
8~50mm, also can be customized
Length
100~3000mm, also can be customized
Power
100~10000KW, also can be customized
Voltage
24V/75V/110/220V/240V/380V/415V etc.
Surface Temperature Range
400~1000 °C

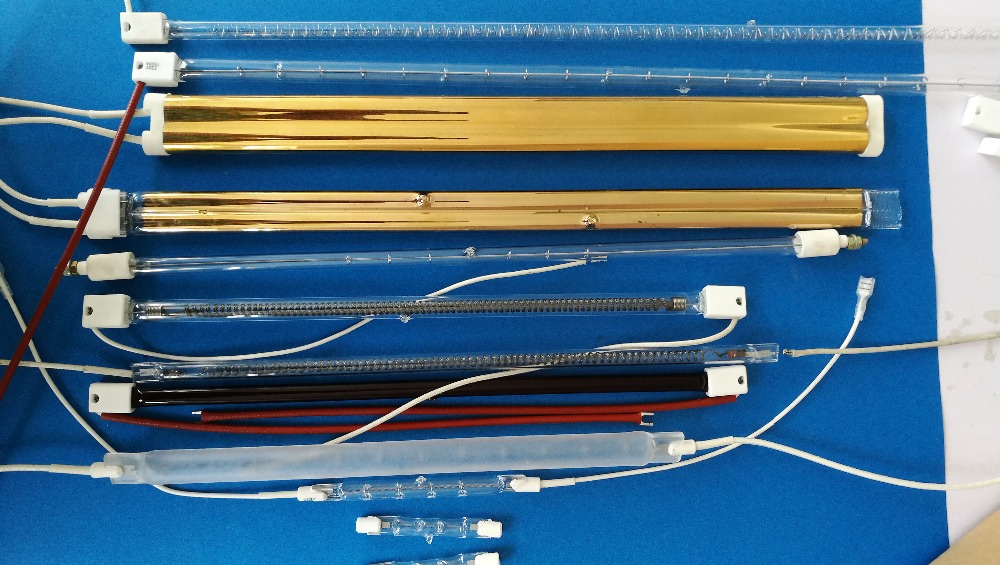

The product range
| The IR Heater Range | Format
(mm) | Heated Length
from-to (mm) | Total Length
from-to (mm) | Max. Output
(Watt) |
| Short Wave IR | Halogen NIR | 8 dia. | 50-1000 | 110-1100 | 9000 |
| Single-tube IR | 10 /11.5dia. | 50-1000 | 110-1100 | 6000 |
| Twin-tube IR | 23x11 | 50-3000 | 200-3150 | 14,000 |
| CarbonIR | Round tube | 19 dia. | 100-1600 | 130-1730 | 6,400 |
| Twin tube | 33 x 15 | 100-3000 | 130-3130 | 10,500 |
| Fast Mediumwave IR | Twin-tube IR | 33x15 | 500-3000 | 600-3150 | 12,000 |
| Medium Wave IR | Twin-tube IR | 18x8 | 60-1500 | 100-1600 | 2500 |
| Twin-tube IR | 23x11 | 80-2000 | 120-2200 | 4500 |
| Twin-tube IR | 33x15 | 300-4400 | 350-4500 | 12,0 |
Watt Voltage Total Length Heating length Reflector Lampbase
2000w 220V 200mm 140mm gold TC02
Applications:
1. Home heating and warming: heater, cooking, oven, stove, baker
2. Industrial drying: painting, drying apparatus, dyeing, print, products processing
3. Electrical machine drying: copy machine, projector, printer;
4. Other heating area.
When you inquiry, please inform us the following details:
1. Outside diameter and length of the quartz heating tube you need;
2. Power and Voltage of the tube you need;
3. The surface temperature you need;
4. Special requirements if you have.
OUR ADVANTAGES:
1.Minimum order: 3pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 50 different sizes stock
Superb Heater Technology has been focused on the production of high temperature quartz radiant heating tubes heating element since 1985, which is well-known as one of the leading manufacturers and suppliers of high temperature quartz radiant heating tubereplacement tubes heating element. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
