| Prod Model: |
PLD500-SMT-54 |
| Output Power: |
500W |
| Dimming: |
0(0.05)~10V, PWM, External Resistor, Clock, DMX |
| Output Voltage: |
36~54V |
| Output Current: |
9.26A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
108~305VAC |
| Pack Sealing Size: |
280X123X54 mm |
| Brand: |
Fsp-Powerland |
Product Description
500W 9.26A Programmable Constant Current LED DriverPowerland's PLD500-SMT-54 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 9.26A, and designed for 0(0.05)-10V/
PWM/Rset/Clock/DMX Ultra-deep dimming applications.ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Parking lights and Architecture decoration lights
LED Horticulture lights
LED Fishing lights
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 500W | 54V | 0~9.26A | 96% | 90ºC | 5.5A | 570W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.
Features
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current programmable
>70,000 hours lifetime at 75ºC Tcase>7 years warranty at 75ºC Tcase
IP67 ingress protectionMin. operating temperature @ -40ºCConstant current output
Compatible with 0-10V, PWM, external resistor, clock,DMX dimmingUniversal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit ProtectionElectrical Specifications| Model |
PLD500-SMT-54
|
| Output Voltage |
54V
|
Output Current
| 0~9.26A |
Output Power
| 500W |
Max. Voltage Ripple
|
350mVp-p
|
Voltage Range
|
108~305Vac
|
Frequency Range
|
47~63Hz
|
Max. Input Current
|
5.5A
|
Max. Input Power
|
570W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
| 96.0% |
Max. Open Circuit Voltage
| 61.8V |
THD
| <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
Protections
|
OVP, OTP, OCP, SCP
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
|
90ºC
|
Surge Protection
|
3kV/6kV
|
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class A
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 280x123x54 mm (11.02x4.84x2.13 inch) |
Mounting Length
|
290 mm (11.42inch)
|
Overall Length
| 304 mm (11.97 inch) |
Weight
| 3.56 kg (7.85 lb) |
Life Time
| >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

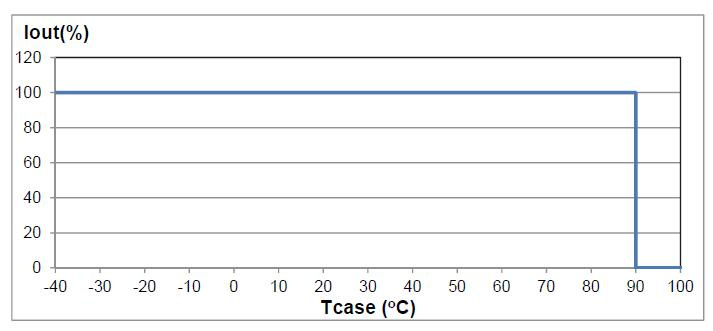

Electrical Specifications Output Current vs. Case Temperature (with ±5ºC Tolerance)

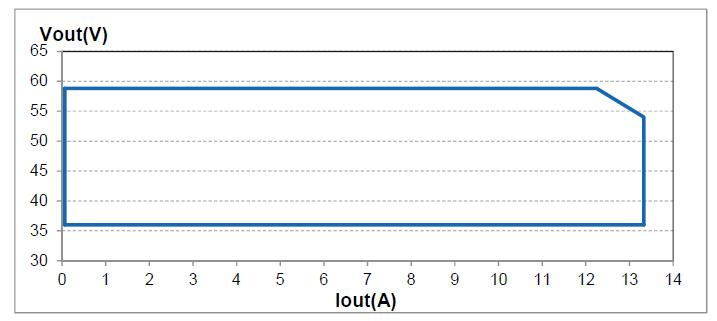

I-V Programming Area: Output Voltage vs. Output Current

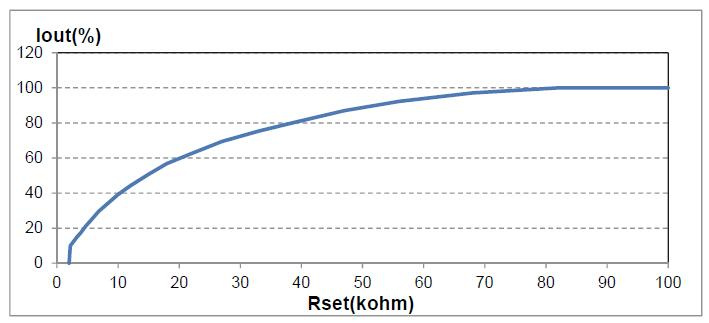

Electrical SpecificationsOutput Current vs. External Setting Resistor

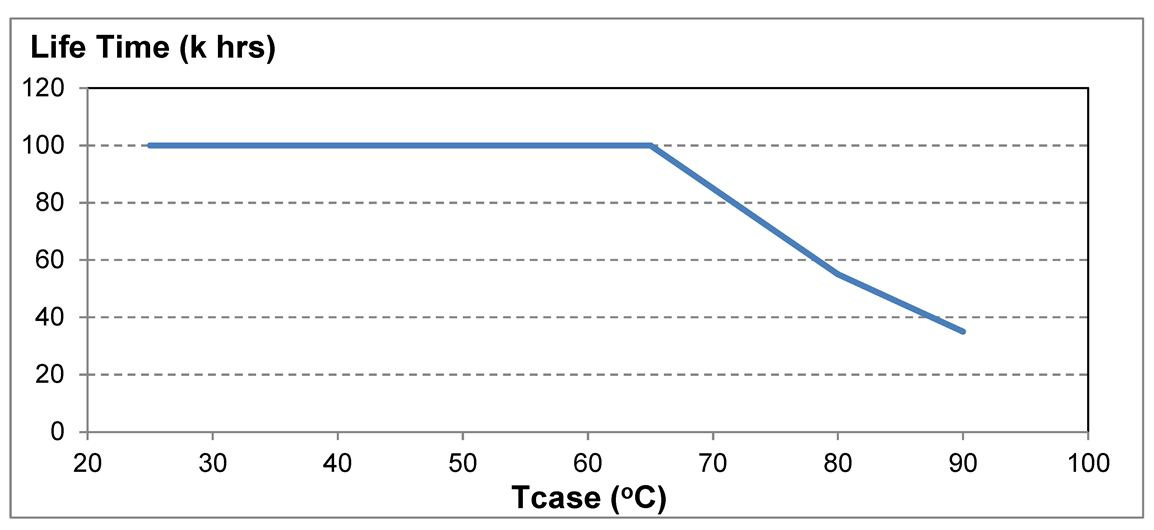

Performance CharacteristicsLife Time vs. Case Temperature

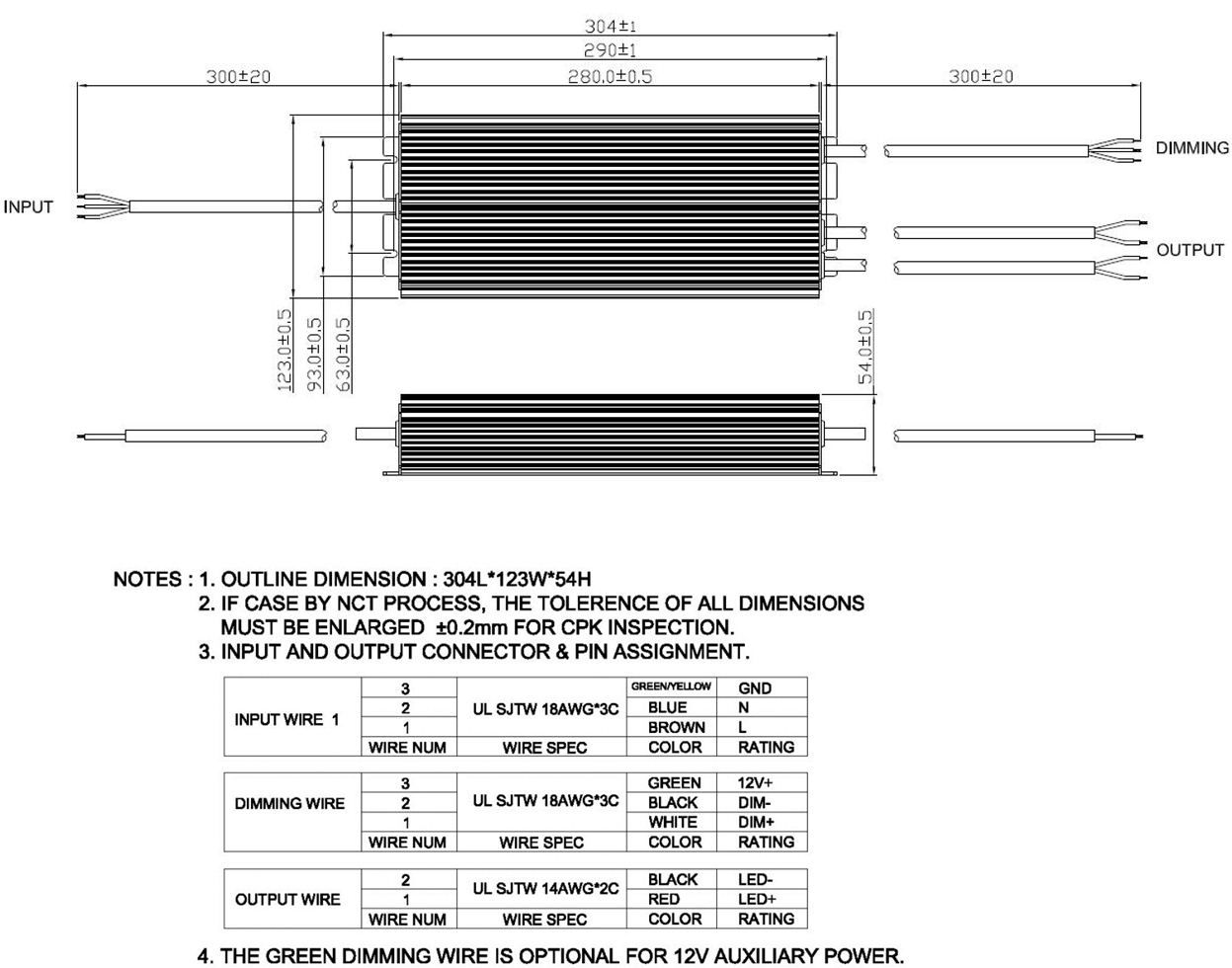

Mechanical Specification
